BM-U325 - SwitEAN  6948193507590

Swit BM-U325 31.5" LCD 3840×2160 resolution, 4K/8K 12GSDI Studio Monitor, 12GSDI 4-in 4-out, 8K input ready, HDMI®2.0 input

- 31.5" LCD Panel, 3840×2160 resolution
- 12GSDI 4-in 4-out, 8K input ready, HDMI®2.0 input
- 12GSDI via SFP Fiber input (Optional)
- ST2110 IP via SFP Fiber input (Optional)
- 3DLUT Auto Self-calibration without PC
- Audio/Video 0 latency for lip-sync
- HLG/PQ/S-log3 HDR EOTF
- Payload ID auto setting
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB
- Waveform / Vector / Histogram
- Focus assist / False color / Zebra
- 16-ch audio meters / Lissajous
- IP webserver remote control
- TSL UMD and text TALLY display
- USB firmware upgrade

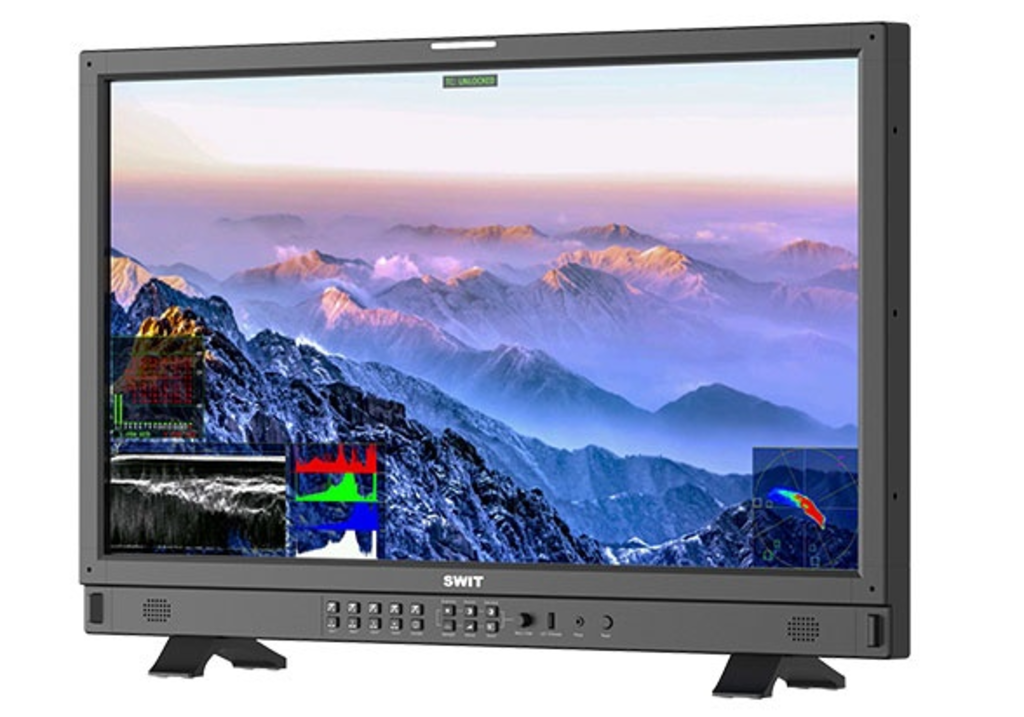

31.5-inch 4K Monitor, UHD panel, 99.4% DCI-P3
BM-U325 adopts a 31.5-inch 10bit LCD panel, UHD 3840×2160 resolution, 300nits LED backlight, 3000:1 contrast, 99.4% DCI-P3 color gamut.
The viewing angle is H178° / V178°.

Multi 4K/8K Interfaces
12GSDI 4-in 4-out, supports:
Single link 4K, Quad link 4K and Quad link 8K
HDMI® 2.0 (4K60P)
12GSDI via SFP Fiber (Optional)
ST2110 IP via SFP Fiber (Optional)
* The Quadlink 4K/8K supports both Quad mode and 2SI interleave mode,
* The SFP optical fiber adaptor is optional purchased.

Display Modes
Supports Single link 4K input including 12GSDI, HDMI®2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs.
You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI® 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.

HDR/SDR EOTFs
BM-U325 provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, BT.709, DCI-P3 and BT.2020.

Payload ID Auto Setting
Support input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space and Color depth according to the Payload ID i
