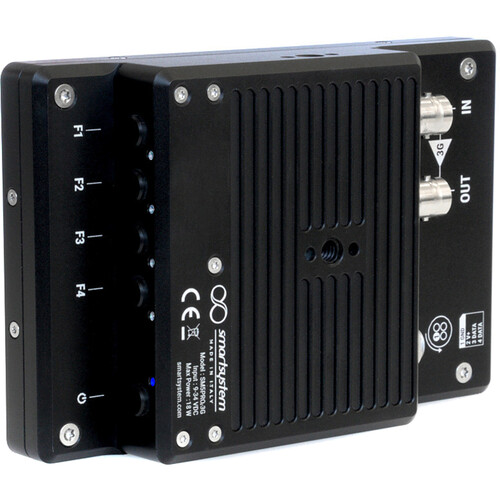

SM5 Pro 3G - SmartSystemEAN  8051411193425

SmartSystem 5" monitor (1920 x 1080) 3G-SDI Hyper Bright up to 3200 nits, 16:9, 1000:1

IPS screen with protection glass and special anti-reflective coating.
Aluminum frame with superior LCD glass protection.
Multiple fixing options.
XTPort for power and fast data communication with other peripherals.

Uncompromised Visibility: Same Sunlite Brillance of 7inch, Sleeker Size
Harnessing the same cutting-edge Ultra Hyper Bright LCD technology as our 7-inch model, the 5-inch monitor delivers up to 3200 nits of brightness for clear visibilit even in direct sunlight.
With a native resolution of 1920 x 1080 and a 1000:1 contrast ratio, enjoy vivid colors and sharp details that make every image pop, no matter where you are.

Aluminum Frame for maximum protection
The SM5 PRO 3G boasts a precision-milled solid aluminum frame, delivering exceptional protection for the screen glass.
This integrated design feature eliminates the need for additional third-party protective cages, offering superior durability and streamlined efficiency.

3G-SDI Full Support
1x up to 3G-SDI input (SMPTE 425A / SMTPE 425B)
1x Buffered Video Output

Data Ports
1x XTPort for XTBus communication
1x USB port for LUTs uploads

Power Options
1x 4poles Push-Pull connector as XTPort for power and data inputs
1x Vlock or ThreeStuds Battery plate (optional)

Compact Design with Ultra Slim Design
SM5 PRO 3G showcases an innovative design where the aluminum frame seamlessly encapsulates the entire product, acting as a sleek, protective skin.
This design choice removes empty spaces, optimizing the product's overall weight for enhanced efficiency.

Multiple mounting options
With strategically placed upper, lower, and rear mounting holes featuring dedicated anti-rotation pins, the SMA 5 Pro 3G can be securely mounted in any desired position.
