16-0525-R2 - SmallHDEAN  811786033669

Monitors > Monitors up to 35"
EAN:811786033669
₦ 2,362,365.18
VAT Included
Adcom - SmallHD
New
Available in 10 days

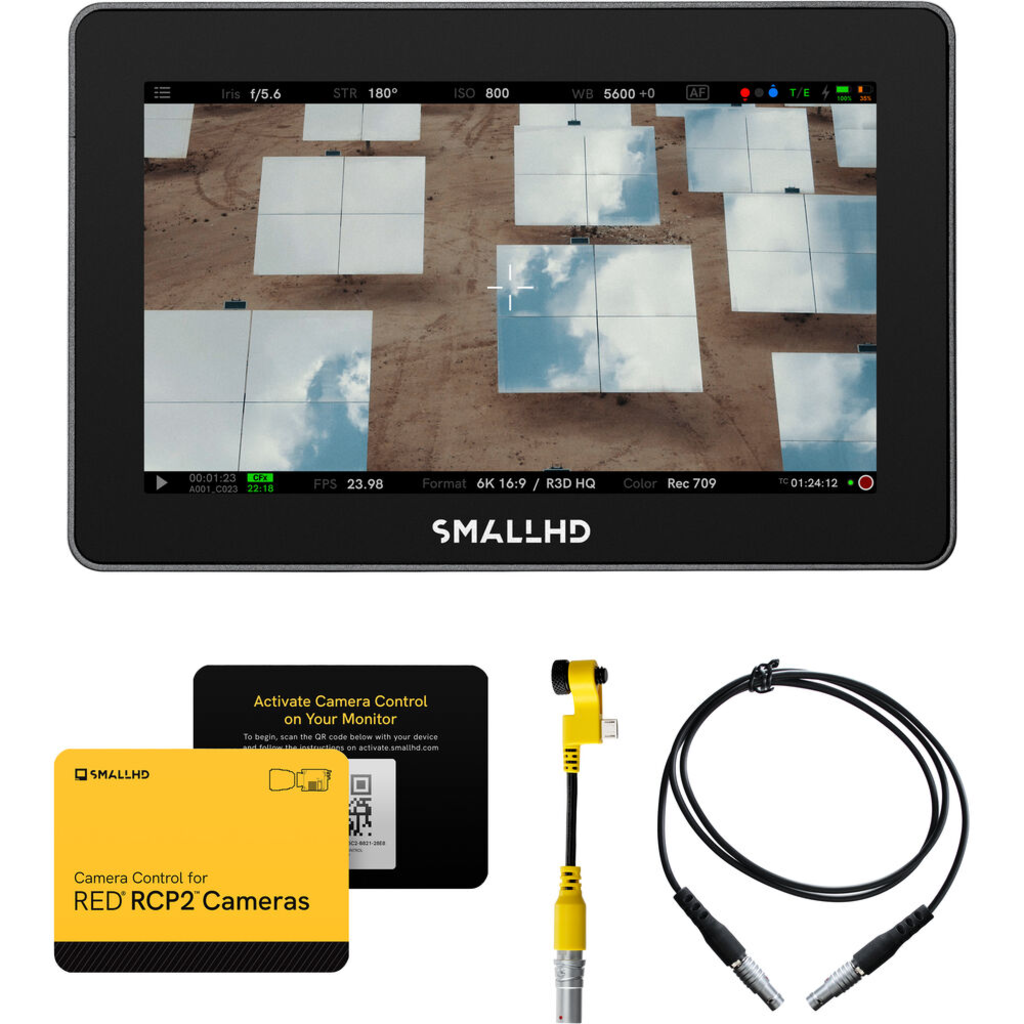

5-inch touchscreen monitor with included Camera Control for access to internal camera settings on RED® RCP2™ cameras

Introducing the Indie 5 RED® RCP2™ Kit, the latest addition to our Smart 5 Series of monitors. As our smallest and lightest monitor, the Indie 5 packs a punch with its powerful features and sleek design.

With its hyper-responsive touchscreen display, the Indie 5 delivers stunning visuals with a brightness of 1000 nits and 1080p resolution. It also comes equipped with our intuitive PageOS 5 operating system, which provides quick access to all your favorite tools for effortless navigation.

Take control of your camera with the Indie 5's RED® RCP2™ camera-control functionality. This kit includes our RED® RCP2™ software license and control cables, which enable real-time configuration of RED® RCP2™ cameras such as KOMODO-X, KOMODO®, DSMC3™, and V-RAPTOR™. Quickly access essential camera settings with our user-friendly controls, and transform your touchscreen into the central command hub of your camera.

Whether you're a professional on an indie budget or just starting out, the Indie 5 is the perfect entry-level monitor for you. Its integrated tools provide more accurate exposure and color control, Look-Around Camera Control, EL Zone, Advanced Teradek RT overlays, and so much more.

Upgrade your filmmaking game with the Indie 5 - the premium touchscreen 5-inch monitor that delivers big on features and performance.

Model: 16-0525-R2
Display: 5-inch Touchscreen, 1920x1080, 440 PPI
Input: 1x 3G-SDI [IN], 1x HDMI 2.0 (4Kp30) [IN]
Output: 1x 3G-SDI [IN/OUT], 1x HDMI 2.0 (4Kp30) [OUT], 1x 3.5mm Stereo Headphone Jack

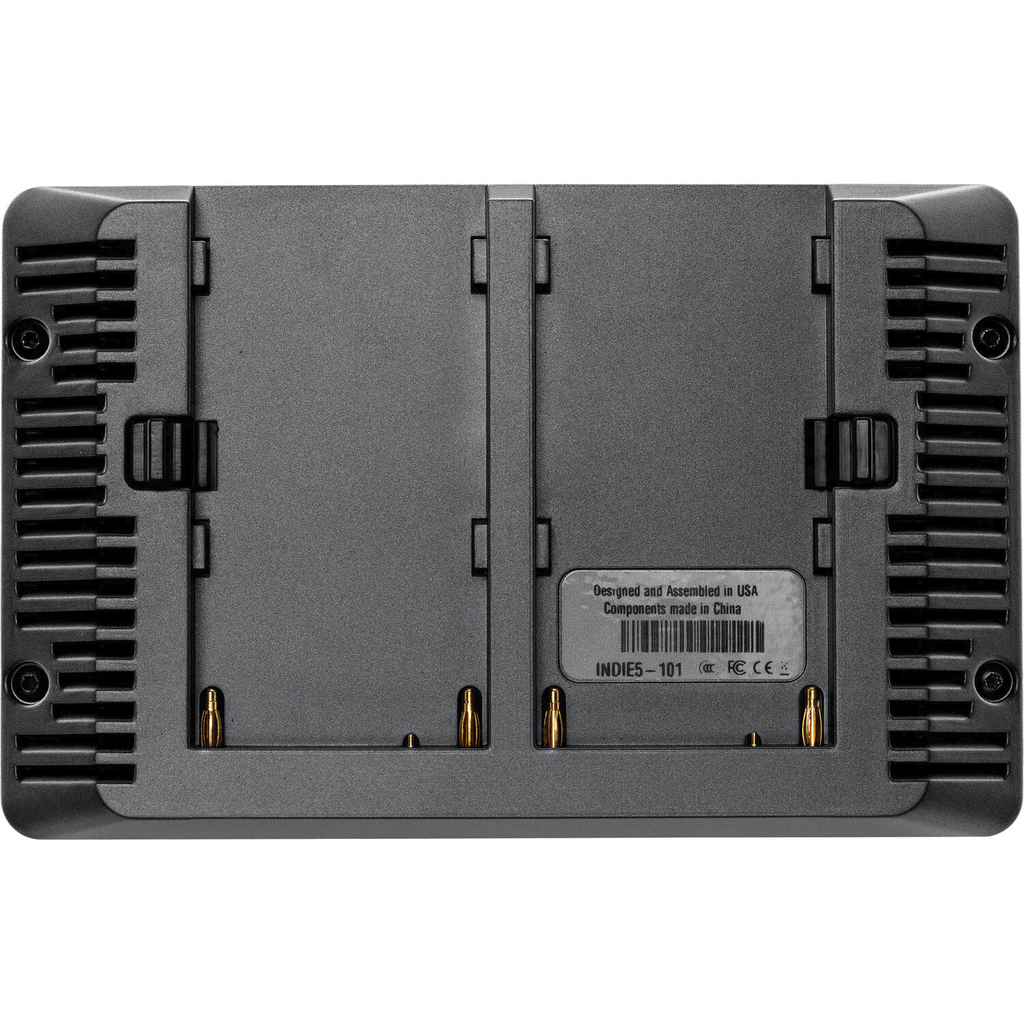

Power Input: 5.5mm x 2.0mm barrel connector (DC 10-34v), Integrated Sony L-Series Plate
Data I/O: 1x SD Card Slot, 1x Micro USB
SKU

16-0525-R2

Product ID

Product ID

6808914985093

Environmental

Item Weight (oz)

14.4

Height (in)

3.39

Width (in)

5.28

Length/Depth (in)

1.52

Mount Points

6x 1/4-20 Mounting Points

Display

Panel Type

Touch-Screen

Resolution

1920 x 1080

Aspect Ratio

16:9

Max Brightness

1000nits

Backlight Type

Edgelit

Input Signal

3G-SDI Input Types

YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Input Types

YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Input Types

YCC 4:2:2 @ 10-bits: 480i59.94, 576i50

HDMI Input Types

YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50

Audio Input Types

HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal

3G-SDI Output Types

YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100

HD-SDI Output Types

YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

SD-SDI Output Types

YCC 4:
Indie 5
Camera Control Kit for RED® RCP2™ Cameras (Indie 5)
Locking Micro-USB to Locking 5-Pin Adapter (Female) (3.3in / 8.5cm)
RED® EXT 9-pin to SmallHD 5-pin USB Camera-Control Cable (18in/45cm)
