G7 Pro - OseeEAN  0769293552329

Monitors > Monitors up to 35"
EAN:0769293552329
₦ 845,378.93
VAT Included
Adcom - Osee
New
Available in 15 days
OSEE G7 Pro 7" Touchscreen HDMI/SDI Field Monitor, 3000 cd/m² Brightness, 1300:1 Contrast with Camera Control

- 1920 x 1080 Touchscreen Display
- Input up to 4K via HDMI & 2K via 3G-SDI
- USB-C Port for Camera Control
- Input 3D LUTs via SD Card Slot
- 3000 cd/m² Brightness, 1300:1 Contrast
- Power via USB-C PD, L-Series, DC Input


Add a powerful, compact field monitor to your rig with the G7 Pro 7" Touchscreen HDMI/SDI Field Monitor with Camera Control from OSEE. The G7 Pro on-camera monitor features a 7" touchscreen with a 1920 x 1080 display and 3000 cd/m² brightness.
The monitor features 3G-SDI input up to 2K and HDMI input up to UHD 4K, and both inputs also feature a loop output.

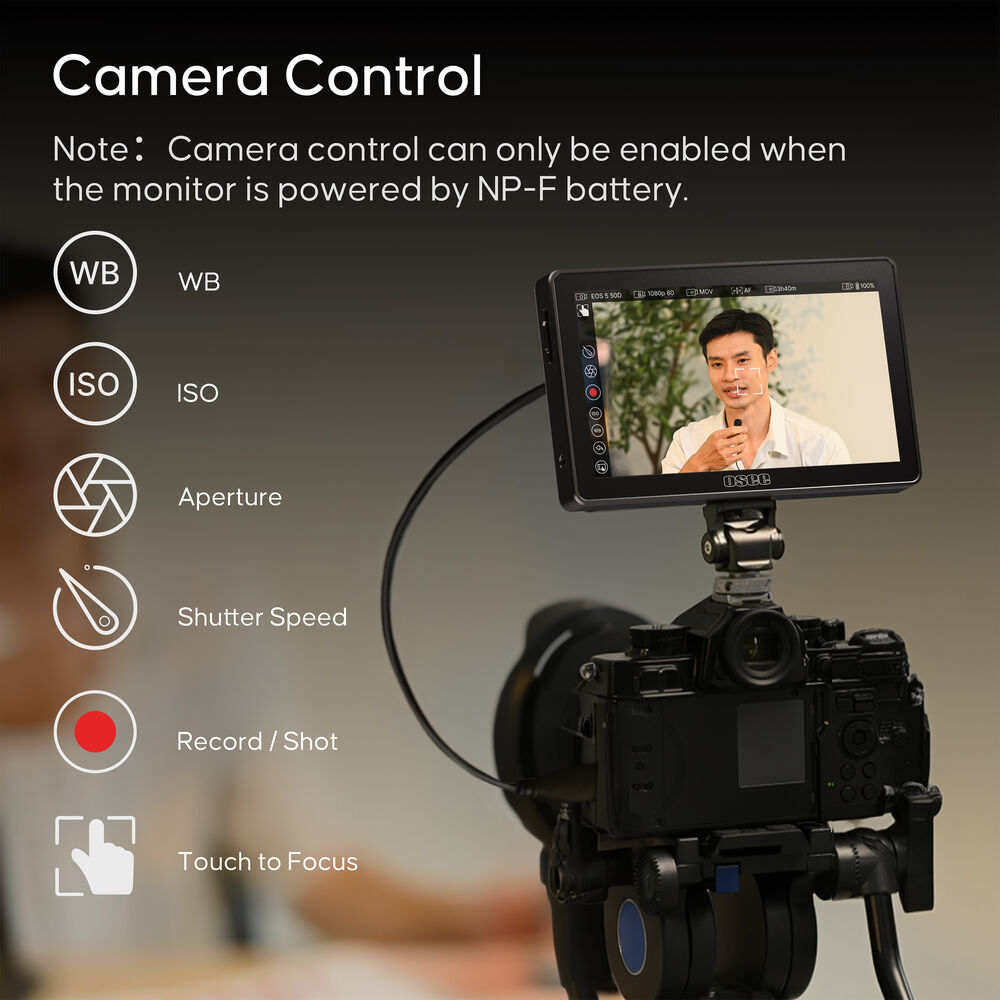

Camera Control
The G7 Pro is equipped with a USB-C port and firmware that allow you to control select cameras, providing controls such as ISO, shutter, record, focus, aperture, and more.
It is currently compatible with the following cameras:
- Canon EOS R6, R6 II, 5D Mark IV
- Panasonic LUMIX GH5S, GH6, S5, S5 II, S5 II X
- Sony a7 IV, a6400, ZV-E10 Mark II, FX3
- Z CAM E2, E2C
- Nikon Z9, Z6 II, Z6
- FUJIFILM GFX100 II, X-T5, X-S20

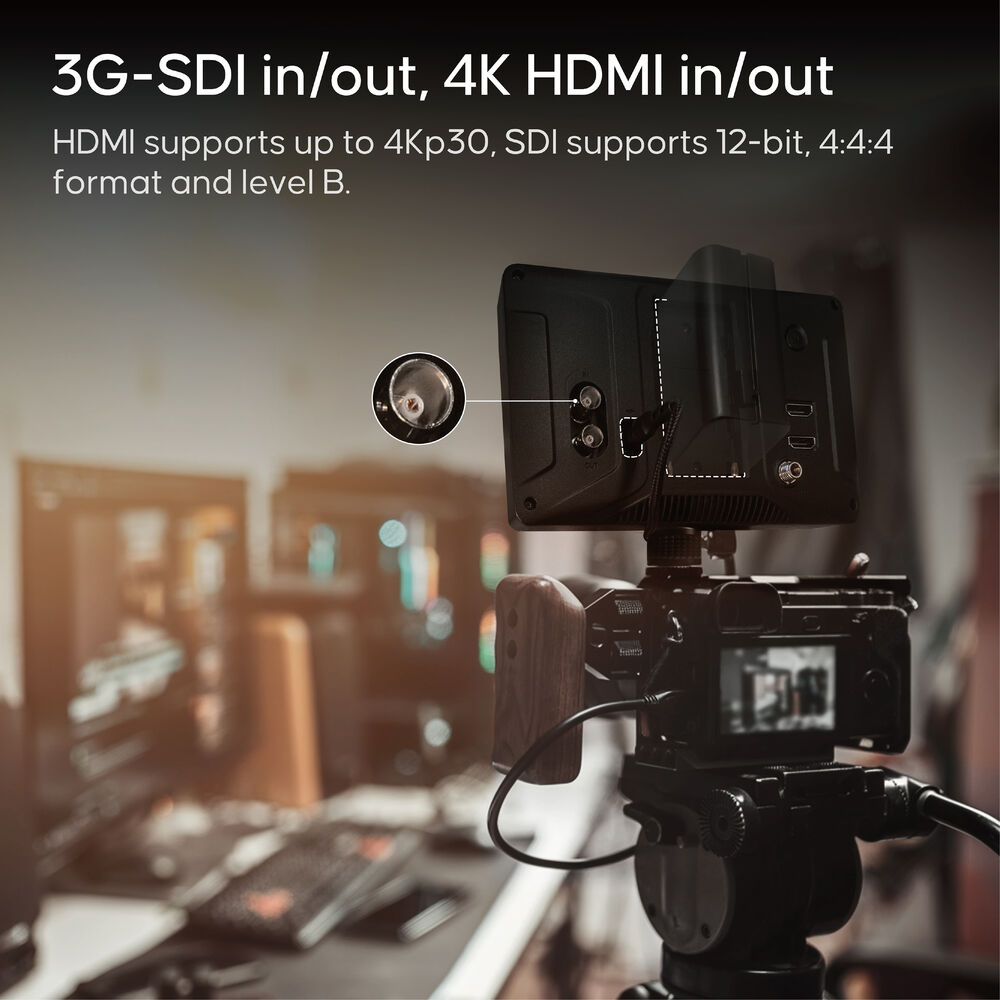

Input/Output
The monitor features HDMI and 3G-SDI inputs, as well as HDMI and 3G-SDI loop outputs.
The HDMI input and output support up to DCI/UHD 4K30 resolutions, and the 3G-SDI input and output support up to 2K/HD resolutions.

Color and Brightness
The high-bright touchscreen display features 3000 cd/m² brightness, allowing you to view accurate imagery indoors or outdoors in bright sunlight.
The G7 Pro supports 10-bit color depth and features a 1300:1 contrast ratio.

Power Options
You can power the monitor using the rear L-series/NP-F battery plate with a separately available battery.
You can also choose to power via an optional power adapter or pro battery using the included D-Tap to DC barrel cable.
There is also a USB-C PD input that allows you to power via a separately available PD charger.

3D LUT / Camera Log Support
Display
Panel Type: LDC
Display Size: 6.97" / 17.7 cm
Native Resolution: 1920 x 1080
Aspect Ratio: 16:9
Viewing Angle: 178°
Touchscreen: Yes
Maximum Brightness: 3000 nits / cd/m2
Contrast Ratio: 1300:1
Color Support: 1.07 Billion Colors (10-Bit)
HDR Support: Yes
Color Gamut: 100% Rec. 709
LUT Support: Yes
Image Controls: Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Vectorscope, Waveform, Zebra

Inputs/Outputs
Video I/O:
- 1x BNC (3G-SDI) Input
- 1x BNC (3G-SDI) Output
- 1x HDMI 1.4 Input
- 1x HDMI 1.4 Output
Embedded Audio: HDMI/SDI
Audio I/O: 1x 1/8" / 3.5 mm Headphone Output
Power I/O:
- 1x Barrel Input
- 1x USB-C Input/Output
Other I/O: 1x USB-C (Camera Control) Output [Shared with Power I/O]
Media/Memory Card Slot: Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]

Format Support
Video Format:
HDMI
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/25/24/23.98
DCI 2K: 50/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2K PsF: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Power
Input Power: 7 to 16 VDC
Battery: 1x L-Series Mount on Fixed Plate
Power Consumption: 16 W (Maximum)

Mounting
Tripod/Accessory Mounting:
- Top: 1x 1/4"-20 Female
- Bottom: 1x 1/4"-20 Female

General
Material of Construction: Aluminum, Glass
Dimensions: 7 x 4.4 x 1.1" / 178 x 111.6 x 28.9 mm
Weight: 0.9 lb / 409.00 g
1x G7 Pro
1x DC to D-Tap cable
1x USB-C cable
1x Gimbal Mount
