RENT MON-703U - SmallHD

Monitors > HD Portables
₦ 67,768.00
VAT Included
allo 051 0567530
Adcom - SmallHD
New
Available in 10 days
QUOTE

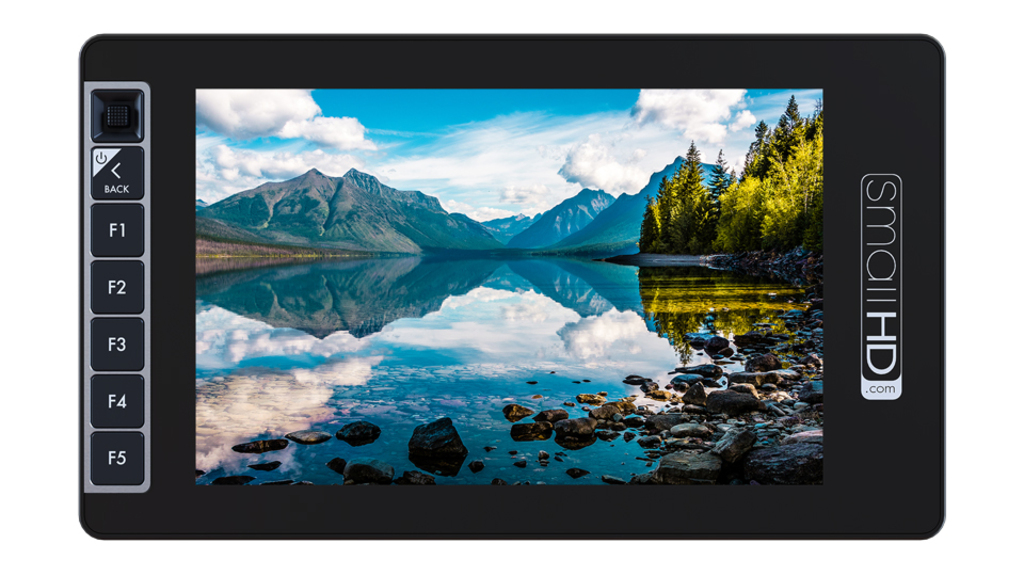

SmallHD Professional grade camera-top brightest 5-inch monitor available with HDR Preview, Waveform, 3D LUT support and 12v Lemo power
Construction: Anodized Aluminum Unibody Chassis
Panel Type: IPS LCD
Diagonal Size: 5"
Brightness: 2200 nits
Resolution: 1920 x 1080
Gamut: 70% NTSC
HDMI: 1x Input, 1x Output
SDI: 1x 3g Input, 1x 3g Output
Custom LUTS: Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu

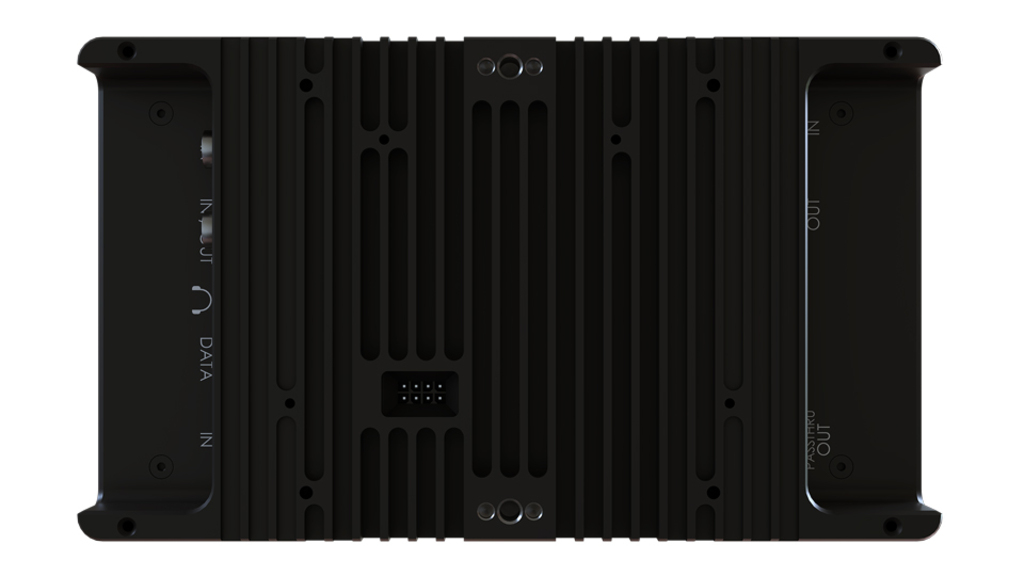

Mount Points: 1x 1/4"-20 Thread on Top of Monitor, 1x 1/4"-20 Thread on Bottom of Monitor, 1x 1/4"-20 Thread on back of Monitor @ Bottom Center
HDMI: 1x Input, 1x Output
Cross Conversion: Yes: HDMI to SDI & SDI to HDMI
Display
Panel Type IPS LCD
Size Diagonal 5"
Resolution 1920 x 1080
Pixel Density (PPI) 443 ppi
Aspect Ratio 16:9
Active Area 4.9
Brightness 2200 nits
Contrast 1000:1
Color Gamut 70% NTSC
Color Depth 10-bit
Viewing Angle 170 degrees Typical
Backlight Type White LED
Adjustable Backlight Yes
Temperature Adaptive Color
Viewfinder (EVF)
Diopter Range

Connector Type
SDI 1x 3g Input, 1x 3g Output
HDMI 1x Input, 1x Output
Component Not Supported
Composite Not Supported
Audio 1x 1/8" Headphone Jack
Power In 1x Locking LEMO 2-pin Connector
Power Out
USB 1x Micro USB
Controls
Primary Control Interface Joystick Navigation, Dedicated Back/Power Button. 2 Additional User Assignable Function Buttons
Record/Capture
User Defined Functions
RF Wireless Remote / External Control
USB Remote / External Control
Data I/O
Storage SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving.
USB USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving
Wireless
Wifi
Power
Connector Type 2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input)
Voltage With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max
Power Consumption 11 watts
Battery Plate Included
Recommended Power Supply Included
Overload Protection Yes
Smart Battery Compliant
Battery Types
Battery Chemistry
Output Voltage (VDC)
Battery Capacity (mAh)
Battery Charging Time (hours)
Environmental
Compliance FCC, IC, CE, RoHS
Operating Temperature 0 - 100 degrees F
Storage Temperature -4 - 120 degrees F
Screen Protection AR Coated Gorilla Glass Optical Bonding on Panel
Height 3.36" (8.53cm)
Width 6.16" (15.65cm)
Depth/Length 1.13" (2.87cm)
Weight (Item Only without battery) 15.2oz (430.91g)
Weight (Packaged) 25oz (708.74g)
Mount Points 1 1/4"-20 Thread on T
