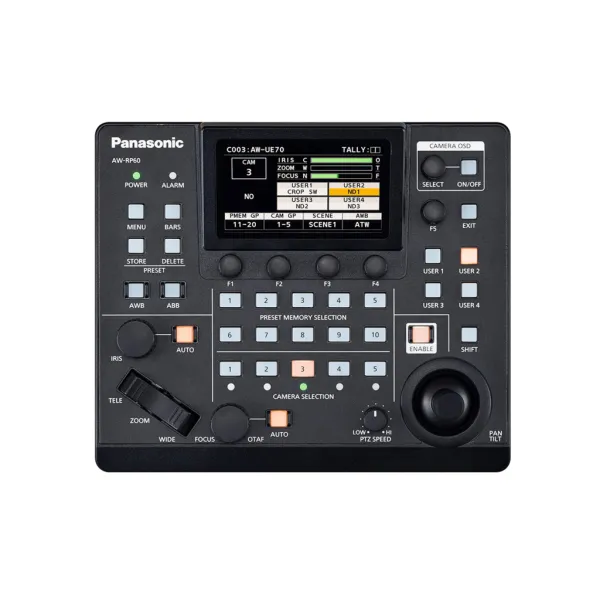

AW-RP60GJ
Specifications
Display : 3.5-type liquid crystal (QHD 960 x 540)
Connection Specifications
No. of Connectable Cameras : 200 (IP), 5 (RS422)
*Up to 100 for cameras other than the AW-UE150
Remote Camera Selection
No. Of Camera: 5 (6 to 200 controlled from the LCD)
No. Of Camera Groups : 20 (10 units/group)
No. Of Memory Presets : 100
PoE* IEEE802.3af standard: 42 V to 57 V DC (Camera Input)
Power
Current consumption : 0.9 A (XLR connector input), 0.3 A (PoE power supply)
Power Requirements : 12 V DC (10.8 V to 13.2 V)
Fisical
Dimensions : (mm) W 210 mm x H 92 mm x D 177 mm (excluding protrusions)
Dimensions : (inch) 8-9/32 inches x 3-5/8 inches x 6-31/32 inches (excluding protrusions)
Weight : 1.5 kg
Display : 3.5-type liquid crystal (QHD 960 x 540)
Connection Specifications
No. of Connectable Cameras : 200 (IP), 5 (RS422)
*Up to 100 for cameras other than the AW-UE150
Remote Camera Selection
No. Of Camera: 5 (6 to 200 controlled from the LCD)
No. Of Camera Groups : 20 (10 units/group)
No. Of Memory Presets : 100
PoE* IEEE802.3af standard: 42 V to 57 V DC (Camera Input)
Power
Current consumption : 0.9 A (XLR connector input), 0.3 A (PoE power supply)
Power Requirements : 12 V DC (10.8 V to 13.2 V)
Fisical
Dimensions : (mm) W 210 mm x H 92 mm x D 177 mm (excluding protrusions)
Dimensions : (inch) 8-9/32 inches x 3-5/8 inches x 6-31/32 inches (excluding protrusions)
Weight : 1.5 kg
