KT-KC10N

KT-KC10N - Kato-Vision
Kato-VisionKato-Vision
PTZ cameras > Remote Control
₦ 655,141.69
VAT Included
Adcom - Kato-Vision
New
Available in 15 days

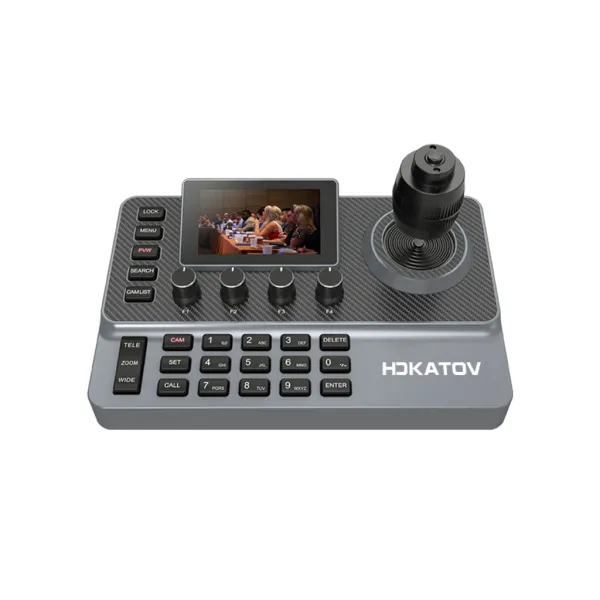

Kato-Vision Controller for Multi-Protocol and NDI PTZ Cameras

- 4D Joystick
- Live Preview
- Supports VISCA, VISCA Over IP, VISCA TCP, PELCO P/D, Onvif, and NDI protocols
- Customizable Knobs

Precise 4D Joystick + 3D Knobs + Ergonomic Zoom Button
Control camera parameters such as white balance, exposure, focus, zoom, etc.

3" color display
Supports real-time preview of the current camera view via streaming (NDI|HX2 and RTSP only).

Improved user interface
Direct display of main camera parameters, easy interface customization.

Customizable buttons and knobs
A specific function can be assigned to pressing or turning the F1, F2, F3, and F4 knobs.

Silicone buttons with white and red backlighting
Comfortable, backlit keyboard that also allows for entering letters and symbols.

Numerous interfaces, multiple connection methods
External RS422/485 serial port and RJ45 network interface.
The network interface supports POE, thus reducing wiring problems.





Keyboard
Joystick: 4D precision Joystick
Knobs: 3D knobs, Supports calibrated parameter adjustments through rotation
Buttons: High-quality silicone buttons, support white and red two-color backlight
Screen: 3" LCD color display
Button Prompt Tone: Button sound prompt On/Off
Lock Button: Support one-key lock function
Max. Control Quantity: 1000
Max.Preset Position: 255

Control
Control Interface: RJ45 (supports POE and NDI®|HX2 optional)RS-422/485
IP Control Protocol: Onvif, VISCA Over IP, VISCA TCP, NDI® (optional)
Serial Port Protocol: VISCA, Pelco D, Pelco P

Power Supply
Input Voltage: 12V
Input Current: 0.25A
POE: 802.3af
Rated Power: 3W

General
Operating Environment: Idoor
Operating Temperature: -10°C-40°C
Storage Temperature: -20°C-60°C
Dimension: (W)210*(D)138*(H)101mm (Joystick height is included)
Weight: 0.8 kg
1x KT-KC10N
