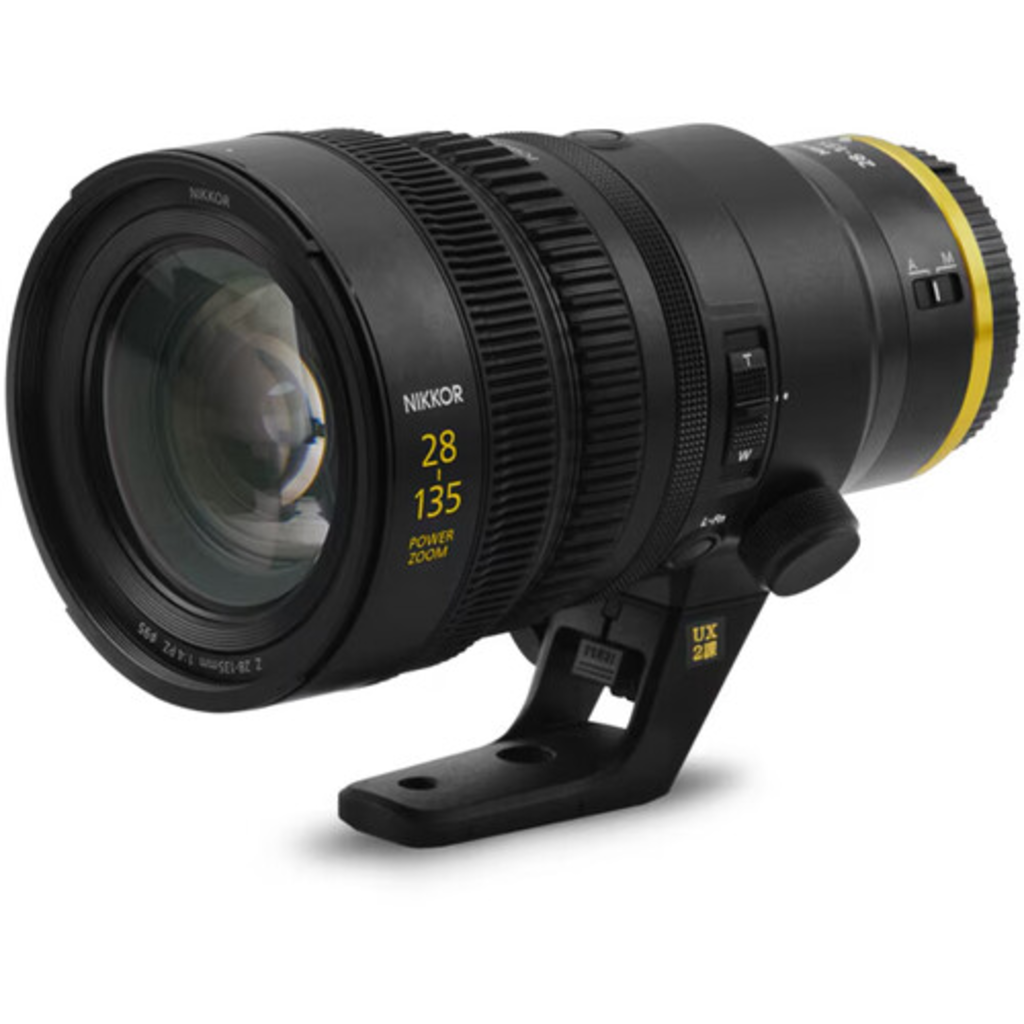

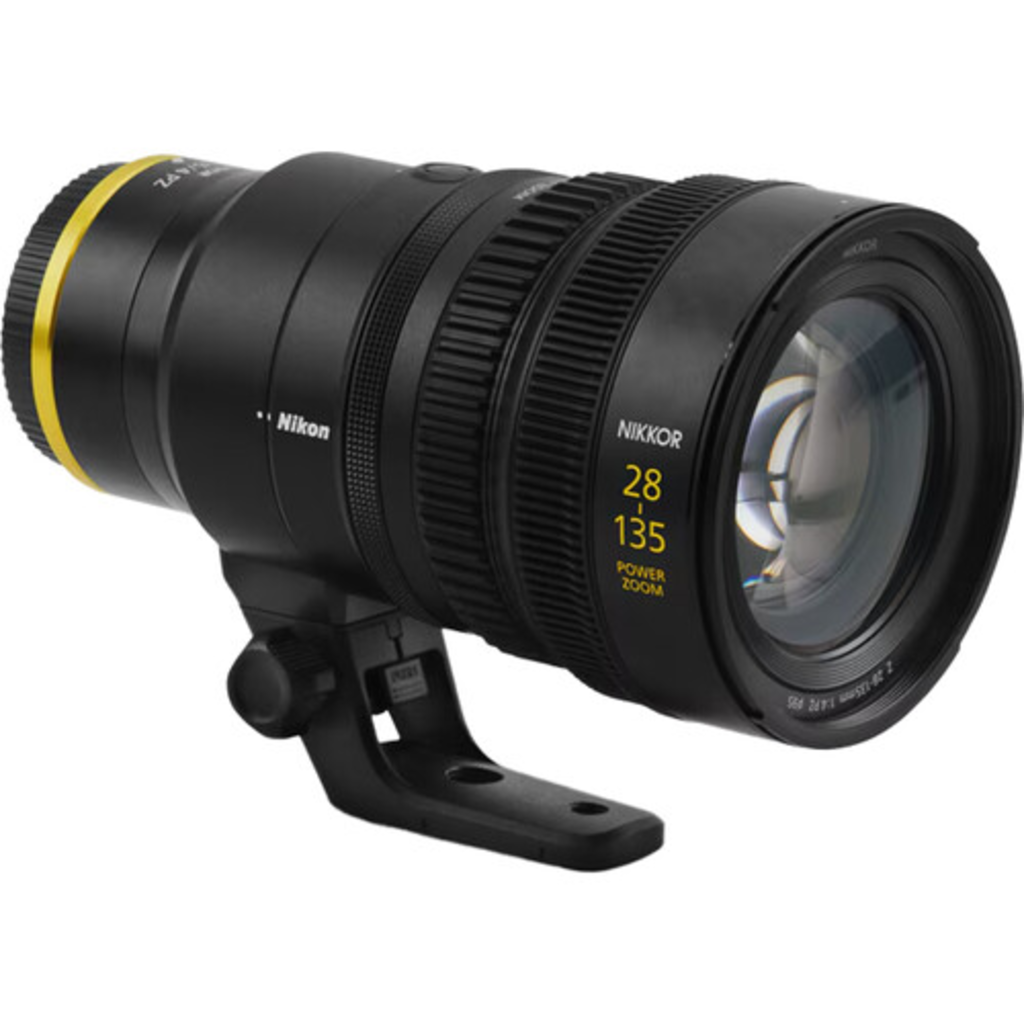

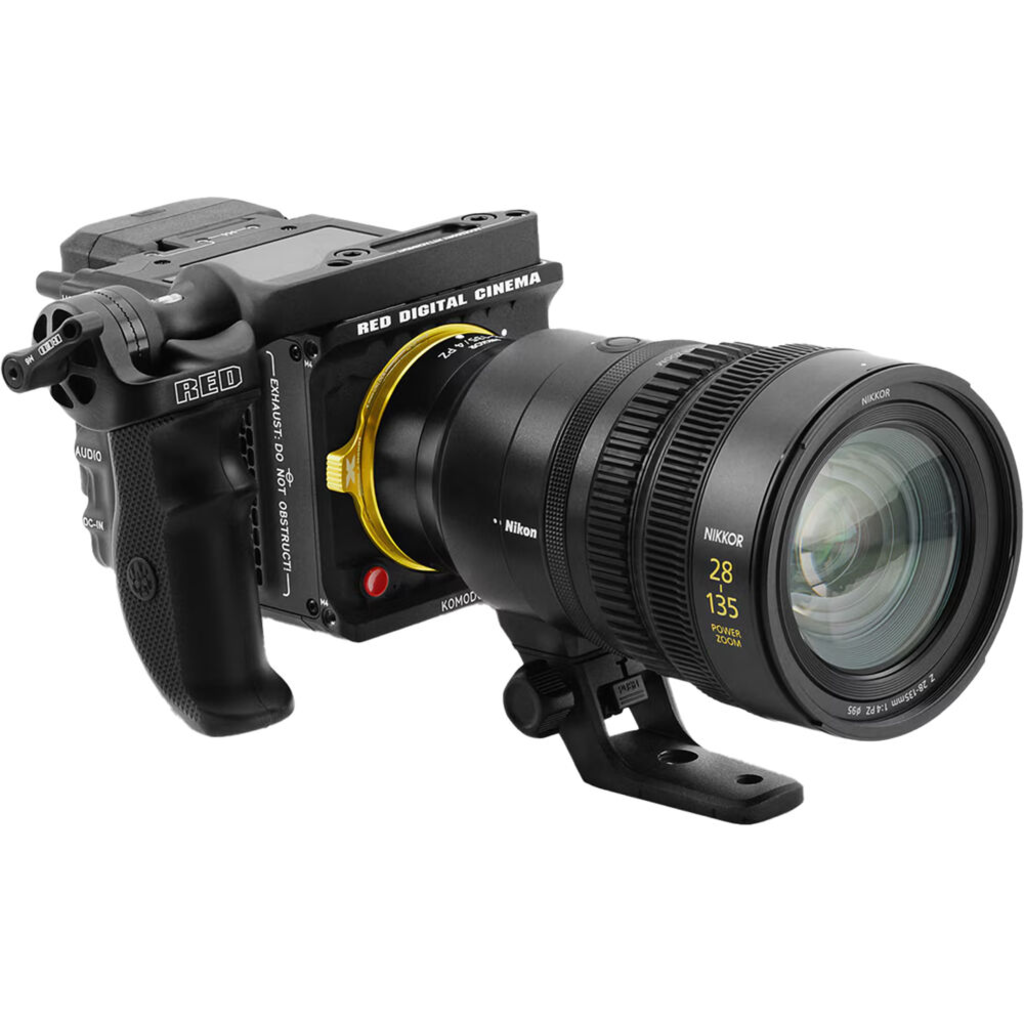

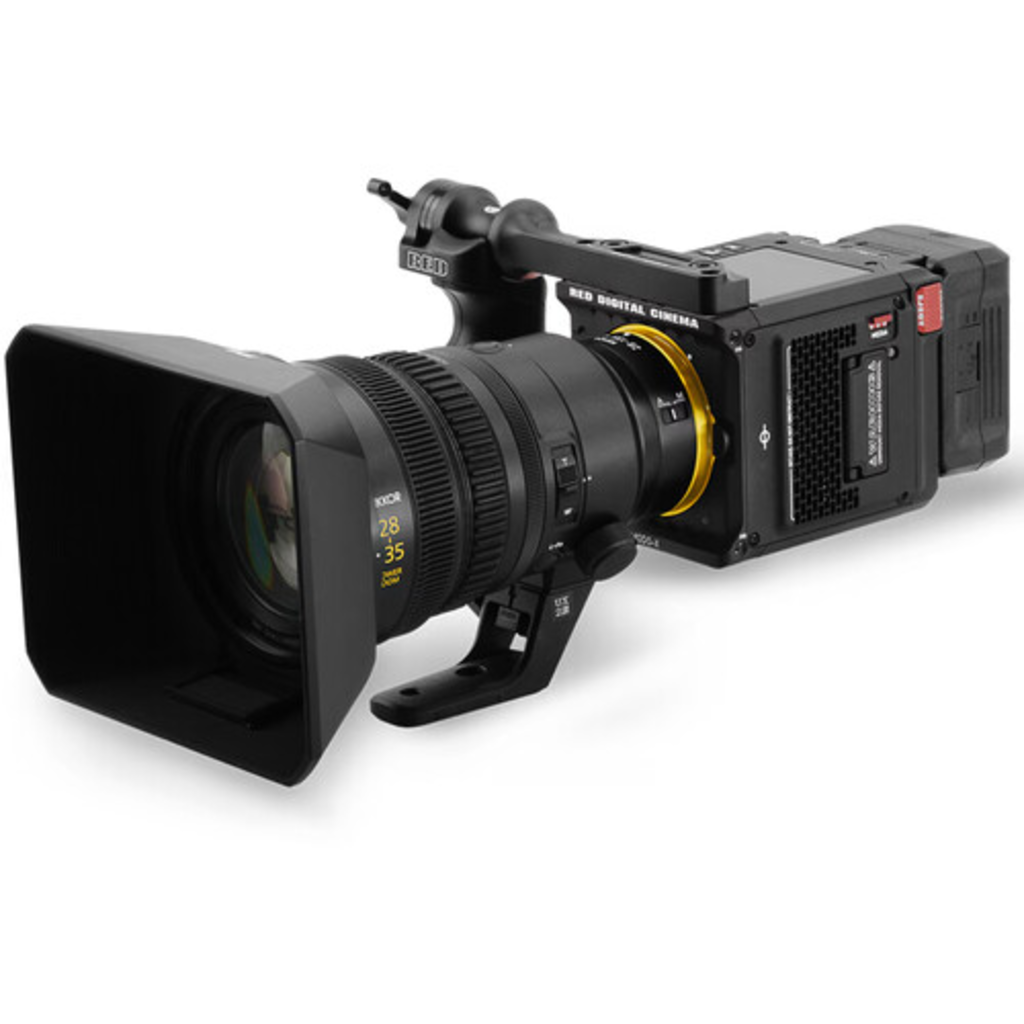

KOMODO X Z Mount Zoom pack - Red Camera

Digital Cinema Cameras > Super35 Sensor
₦ 15,570,836.43
VAT Included
Adcom - Red Camera
New
Available in 10 days
QUOTE
BUY

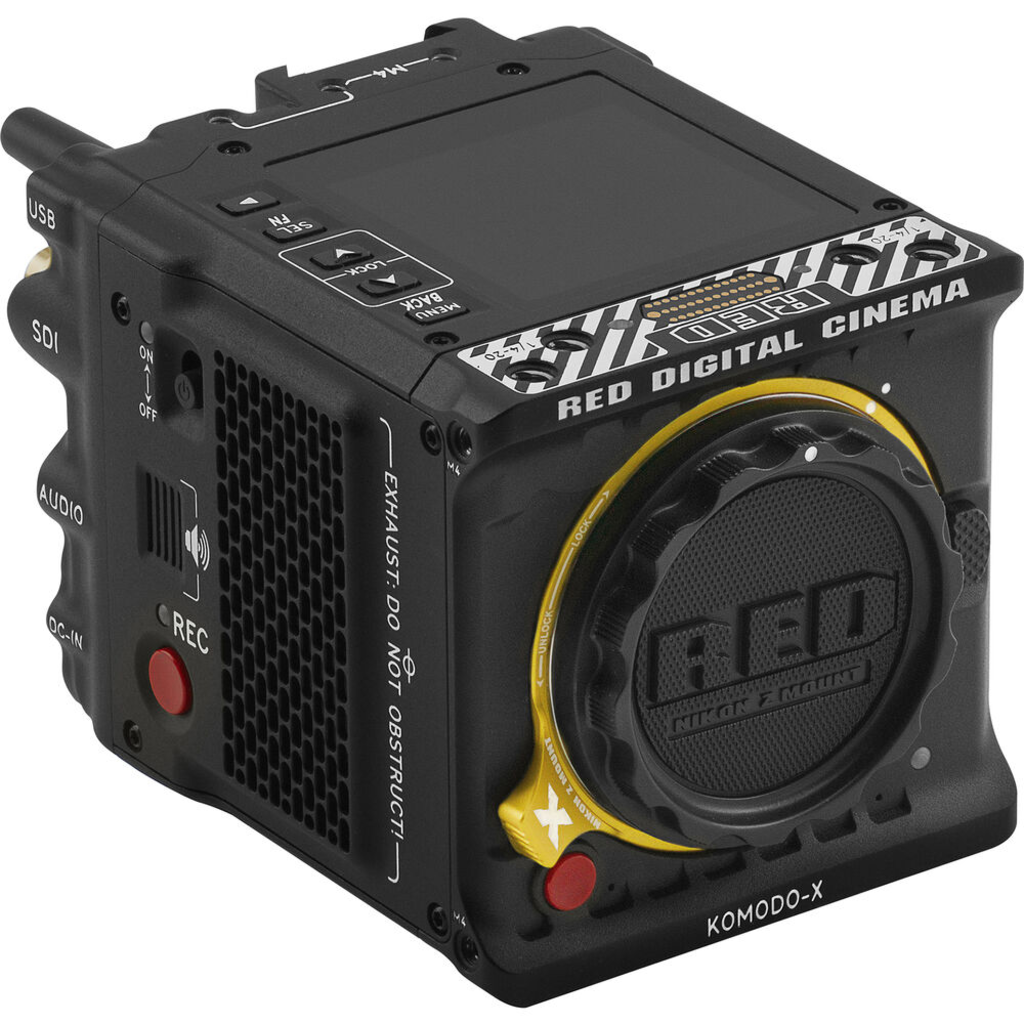

RED continues to expand its line of digital cinema cameras with the KOMODO-X Z Mount featuring a native Nikon Z mount offering adjustable AF speeds, fluid iris control, and customizable lens responses. It shares the global shutter 6K S35 sensor, powerful IP workflow, and advanced interfaces of the RF-mount KOMODO-X. 710-0420

° 19.9MP Super 35 Global Shutter CMOS

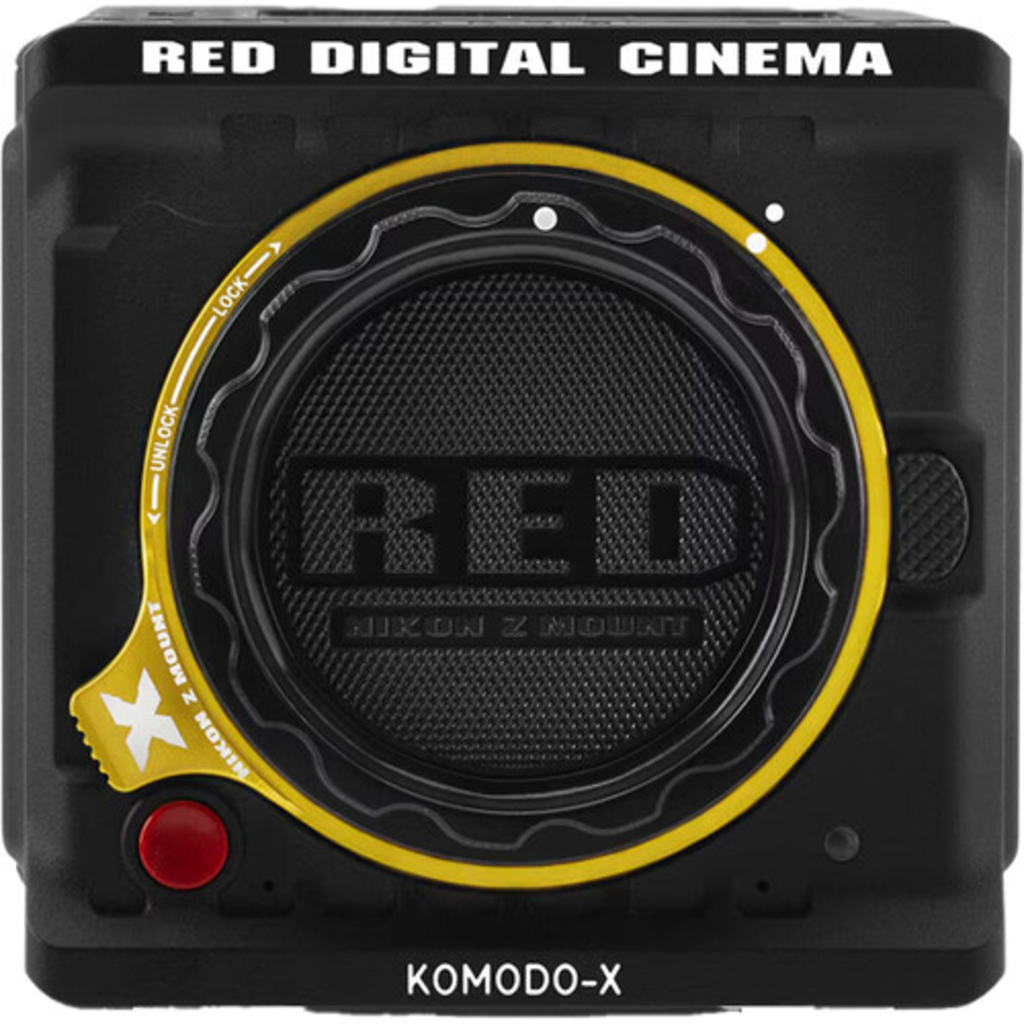

° Reinforced, Locking Nikon Z Lens Mount
° Adjustable AF, Smooth Iris Control
° Compact KOMODO Line Design
° Up to 6K80 & 4K120 Video
° 12G-SDI, USB-C, 5-Pin Audio Ports
° 6K Streaming via RED Connect License
° Wireless Control, File Offload via Wi-Fi
° Integrated 2.9" Touchscreen
° Includes AC Adapter



6K Super 35 Global Shutter Sensor
While sized the same as the original 6K S35 global-shutter KOMODO sensor, the KOMODO-X Z Mount sensor has been redesigned from the ground up, offering key architectural improvements while producing excellent image quality and color science. Features include enhanced shadow detail and color and frame rates up to 80 fps in 6K and up to 120p in 4K.

Compact KOMODO Form

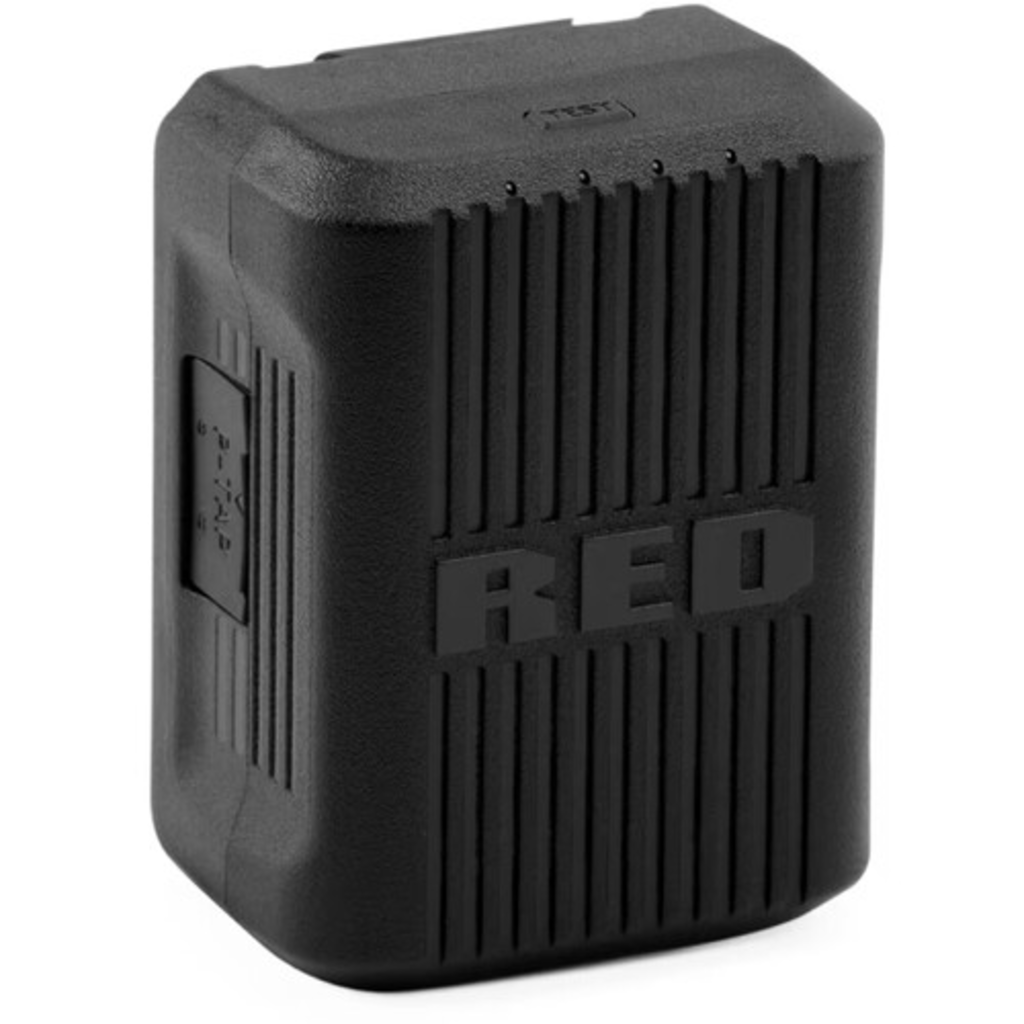

The KOMODO-X Z Mount camera melds select DSMC3 features with the notably ultracompact KOMODO form. The KOMODO-X Z Mount has a built-in plate that enables the direct use of Micro V-mount batteries and is compatible with the PRO I/O Module for auxiliary power and full-size Gold and V-mount battery use. It also incorporates a full-size, 4-pin 11-17 VDC power input.

Integrated LCD
Users can preview their images and apply simplified controls via the integrated 2.9" LCD, an especially handy feature in tight setups. Pair the KOMODO-X Z Mount with the daylight-viewable, high-resolut
SENSOR TYPE KOMODO-X 19.9MP Super 35mm Global Shutter CMOS
EFFECTIVE PIXELS 6144 x 3240
SENSOR SIZE 27.03 mm x 14.26 mm (Diagonal: 30.56mm)
DYNAMIC RANGE 16.5+ stops

MOUNT TYPE
Integrated locking Nikon Z mount with electronic communication
Supports /i PL lenses with RED Z to PL Adapters
Supports Nikon FTZ II Adapter with communication and other adapters based on the Nikon Z mount
MAX DATA RATES Up to 560 MB/s using RED branded or other qualified CFexpress media cards[1]

REDCODE® RAW MAX FRAME RATES 80 fps at 6K 17:9 (6144 x 3240)
96 fps at 5K 17:9 (5120 x 2700))
120 fps at 4K 17:9 (4096 x 2160)
240 fps at 2K 17:9 (2048 x 1080)

PLAYBACK FRAME RATES (PROJECT TIME BASE) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions

BEST AVAILABLE REDCODE SETTINGS
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 (6144 x 3240) up to 80 fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 (4096 x 2160) up to 120 fps
REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 (2048 x 1080) up to 240 fps

REDCODE® RAW
ACQUISITION FORMATS 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9. 1:1, and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700) and 16:9
4K 17:9 (4096 x 2160) and 16:9
2K 17:9 (2048 x 1080)

APPLE PRORES Dedicated recording in 4K (4096 x 2160) ProRes 4444 XQ up to 60 fps, ProRes 4444 up to 80 fps, and ProRes 422 HQ, ProRes 422, and ProRes 422 LT up to 120 fps

CONSTRUCTION Aluminum Alloy
DIMENSIONS 129.37 x 101.26 x 95.26 mm / 5.1 x 4 x 3.8 in (LxWxH, largest fixed dims.)
WEIGHT 2.62lbs (without body cap and CFexpress card)
MEDIA TYPE CFexpress Type B
BATTERY TYPE Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
DC POWER INPUT 11-17V via 6-pin DC-IN
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE -20°C to 50°C (-4°F to 122°F)
STORAGE RELATIVE HUMIDITY 0% to 85% non-condensing

COLOR MANAGEMENT
Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import and adjustment of CDLs

AUDIO
Integrated dual c

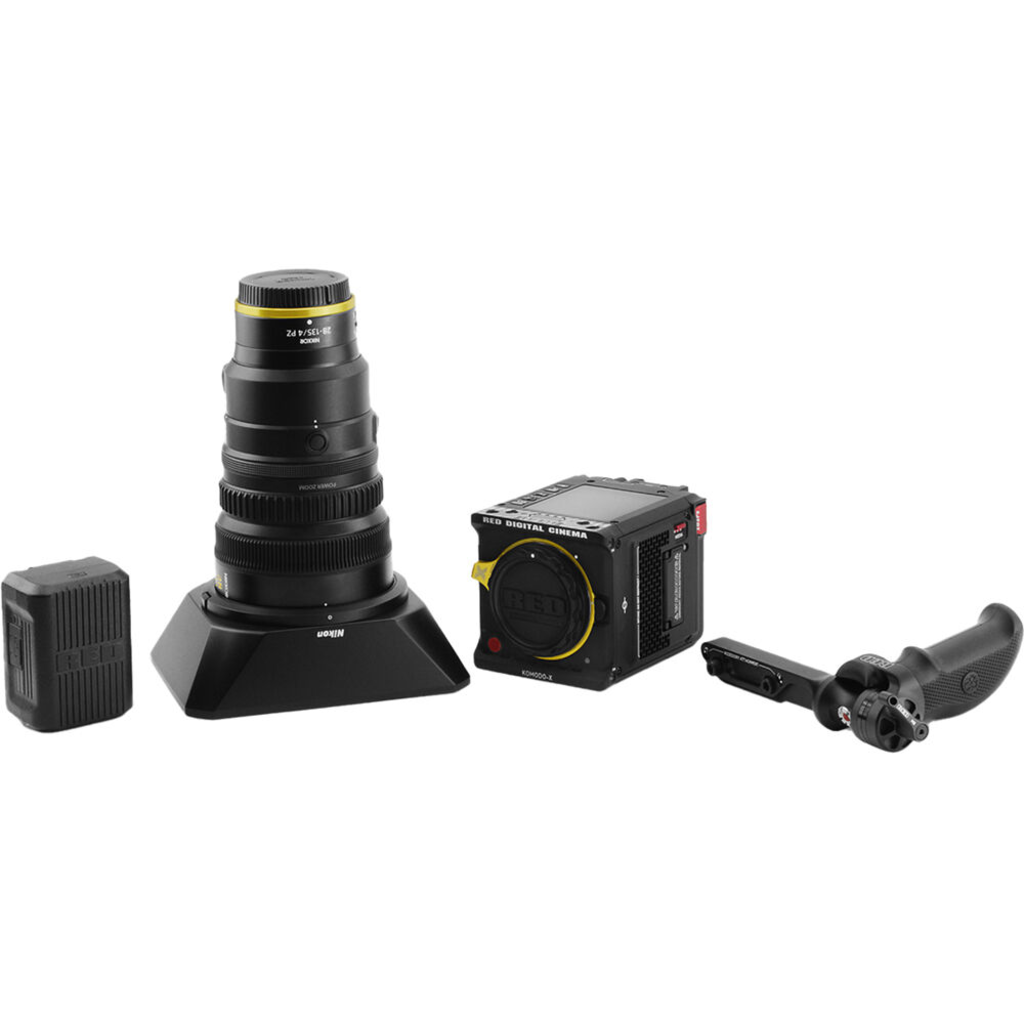

1x RED DIGITAL CINEMA KOMODO-X 6K Digital Cinema Camera (NIKON Z)
