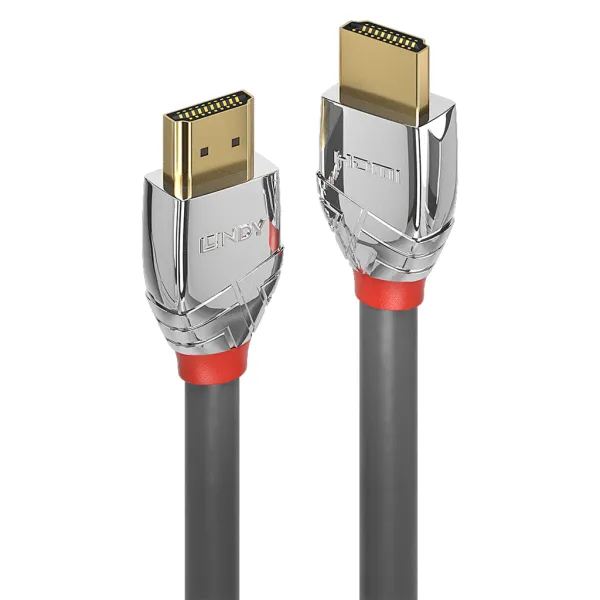

HDMI to HDMI 010 4k
Connectors
Connector A: HDMI Type A Male
Connector B: HDMI Type A Male
Housing Material: Chrome Plated ABS Plastic
Connector Plating: 24K Gold 3µm
Pin Construction: Phosphor Copper
Pin Plating: 24K Gold 15µm
Dimensions (approx.) WxDxH: 21.4x41.4x12.7mm (0.84x1.63x0.5in)
Cable Construction
Length: 10m (32.81ft)
Standard: Standard HDMI with Ethernet
Colour: Grey
Type: Round
Jacket Diameter: 10.5mm (0.41in)
Jacket Material: PVC
Conductor Material: Tin plated copper
Conductor Gauge: 24AWG
Shielding: Copper Braid 85%
Specifications
Supported Bandwidth: 10.2Gbps
Maximum Resolution: 4096x2160@60Hz 4:2:0 8bit
Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB
Minimum Bend Radius: 60mm (2.36in)
Operating Temperature: -10°C - 80°C (14°F - 176°F)
Storage Temperature: -10°C - 80°C (14°F - 176°F)
ATC Approved: Yes
