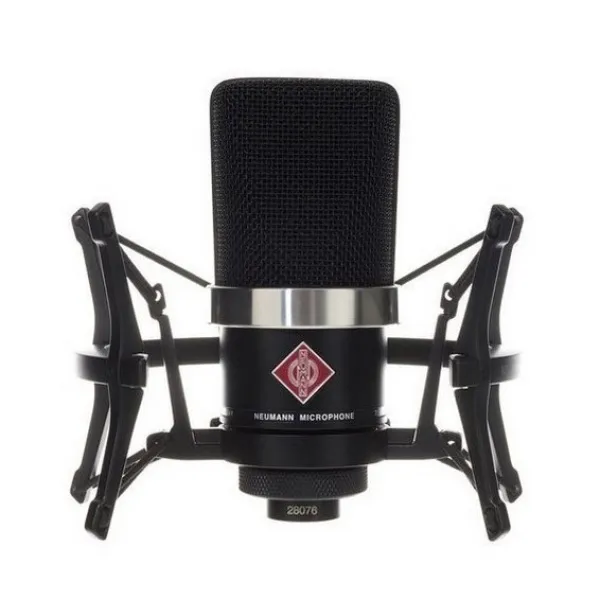

TLM 103 MT STUDIO SET
Technical Data
Acoustical operating: Pressure gradient transducer
Maximum SPL for THD 0.5%2): 144 dB
Directional pattern: Cardioid
Maximum output voltage: 13 dBU
Frequency range: 20 Hz...20 kHz
Dyn. range of the mic. amplifier (A-weighted): 132 dB
Sensitivity at 1 kHz into 1 kohm: 11 mV/Pa
Supply voltage (P48, IEC 1938): 48 V ± 4 V
Rated impedance: 50 ohms
Current consumption (P48, IEC 1938): 3.5 mA
Rated load impedance: 1 kohms
Matching connector: XLR3F
Equivalent noise level, CCIR1): 21 dB
Weight approx.: approx. 260 g
Equivalent noise level, A-weighted1): 12 dB-A
Diameter: 52 mm
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 73 dB
Length: 116 mm
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 82 dB
Supplied with elastic shock absobing EA4 included
General
Misure: D52mm x 116mm
Peso: 0,500kg
Acoustical operating: Pressure gradient transducer
Maximum SPL for THD 0.5%2): 144 dB
Directional pattern: Cardioid
Maximum output voltage: 13 dBU
Frequency range: 20 Hz...20 kHz
Dyn. range of the mic. amplifier (A-weighted): 132 dB
Sensitivity at 1 kHz into 1 kohm: 11 mV/Pa
Supply voltage (P48, IEC 1938): 48 V ± 4 V
Rated impedance: 50 ohms
Current consumption (P48, IEC 1938): 3.5 mA
Rated load impedance: 1 kohms
Matching connector: XLR3F
Equivalent noise level, CCIR1): 21 dB
Weight approx.: approx. 260 g
Equivalent noise level, A-weighted1): 12 dB-A
Diameter: 52 mm
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 73 dB
Length: 116 mm
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 82 dB
Supplied with elastic shock absobing EA4 included
General
Misure: D52mm x 116mm
Peso: 0,500kg
