Evox J9 W - RCFEAN  8024530024437

Sound Diffusion > Powered Speakers
EAN:8024530024437
₦ 1,840,494.20
VAT Included
Adcom - RCF
New
Available in 15 days
RCF LINE ARRAY Amplified System, SPL Max 130 dB, Class D 2100W - Integrated DSP - White

- 130 dB Max SPL
- 2100 W Class-D Amplifier - Built-In DSP
- 1.75" Neo Compression Driver - 120° X 40° True Resistive Waveguide
- 6 × 3" Full-Range Neo Transducers
- 12" High-Power Woofer
- Enhanced Coverage And Clarity
- Composite Cabinet With Aluminum Stand Mount
- Sleek, Road-Ready Design
- Top Speaker Padded Carrying Bag Included

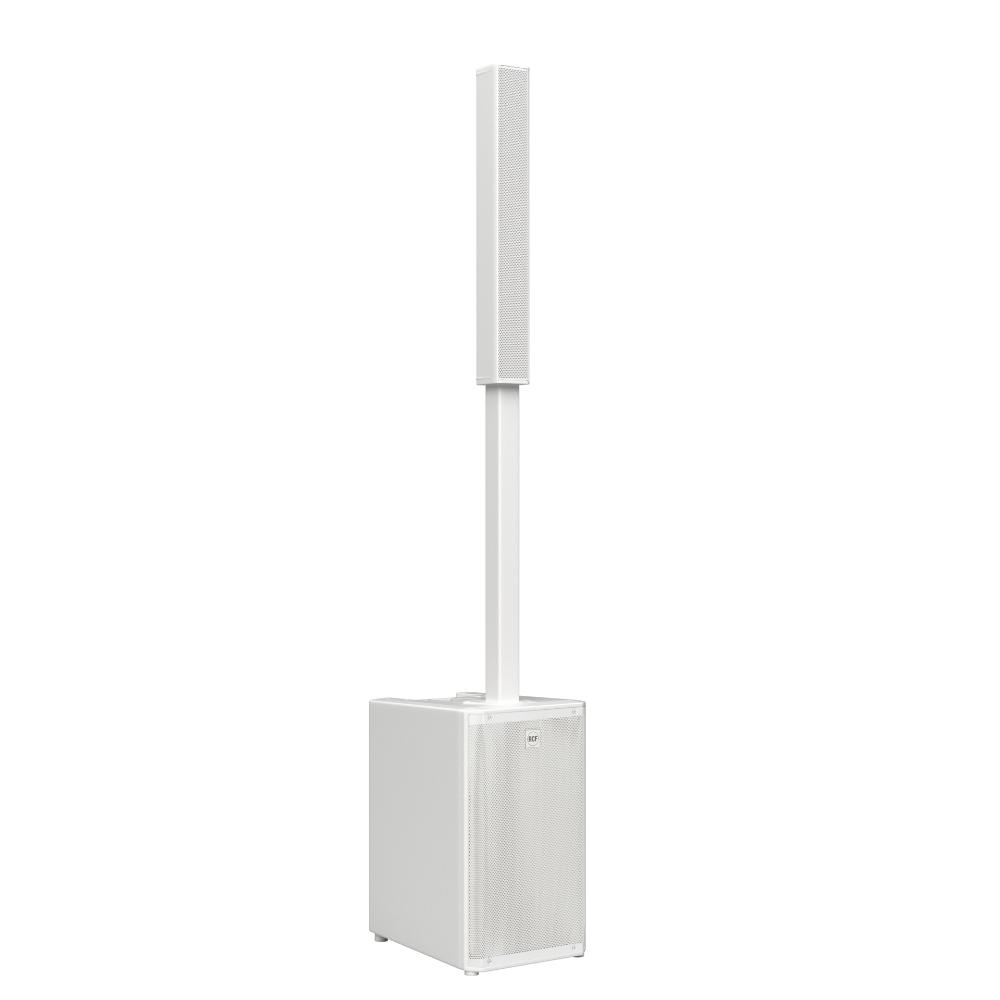

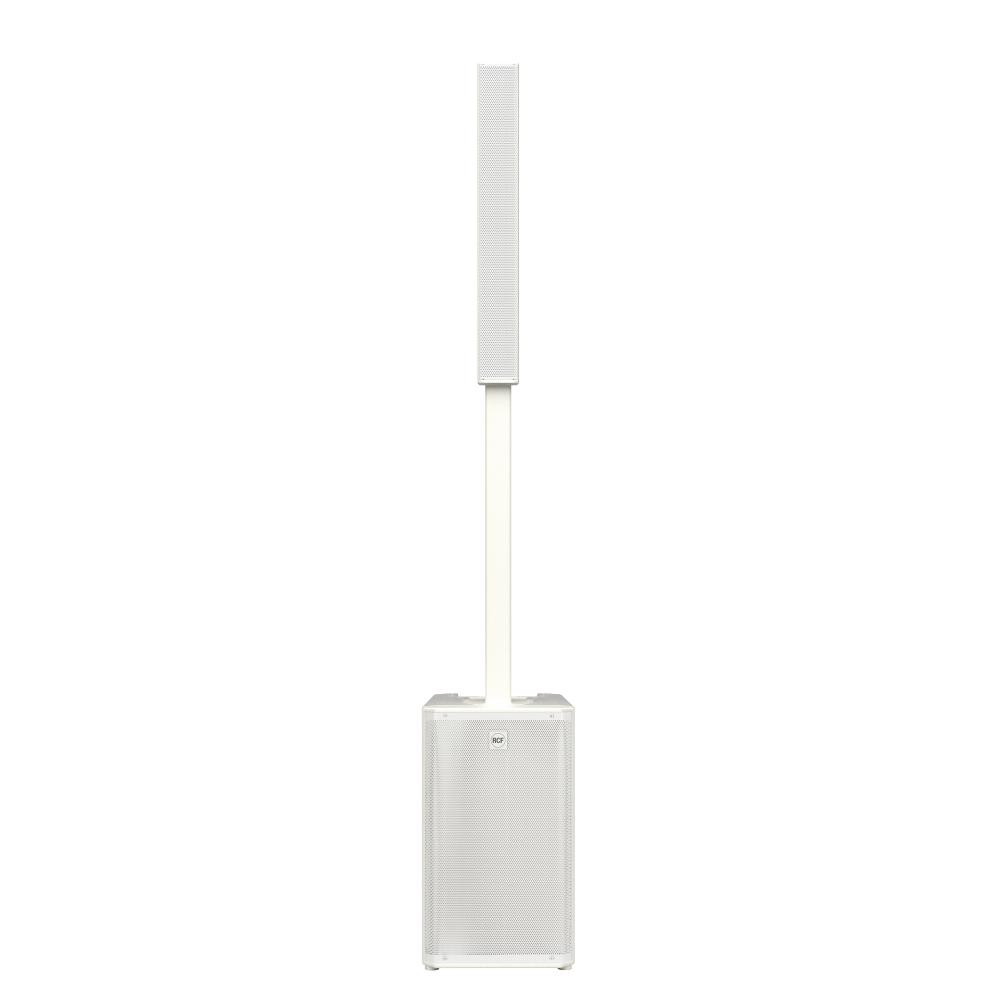

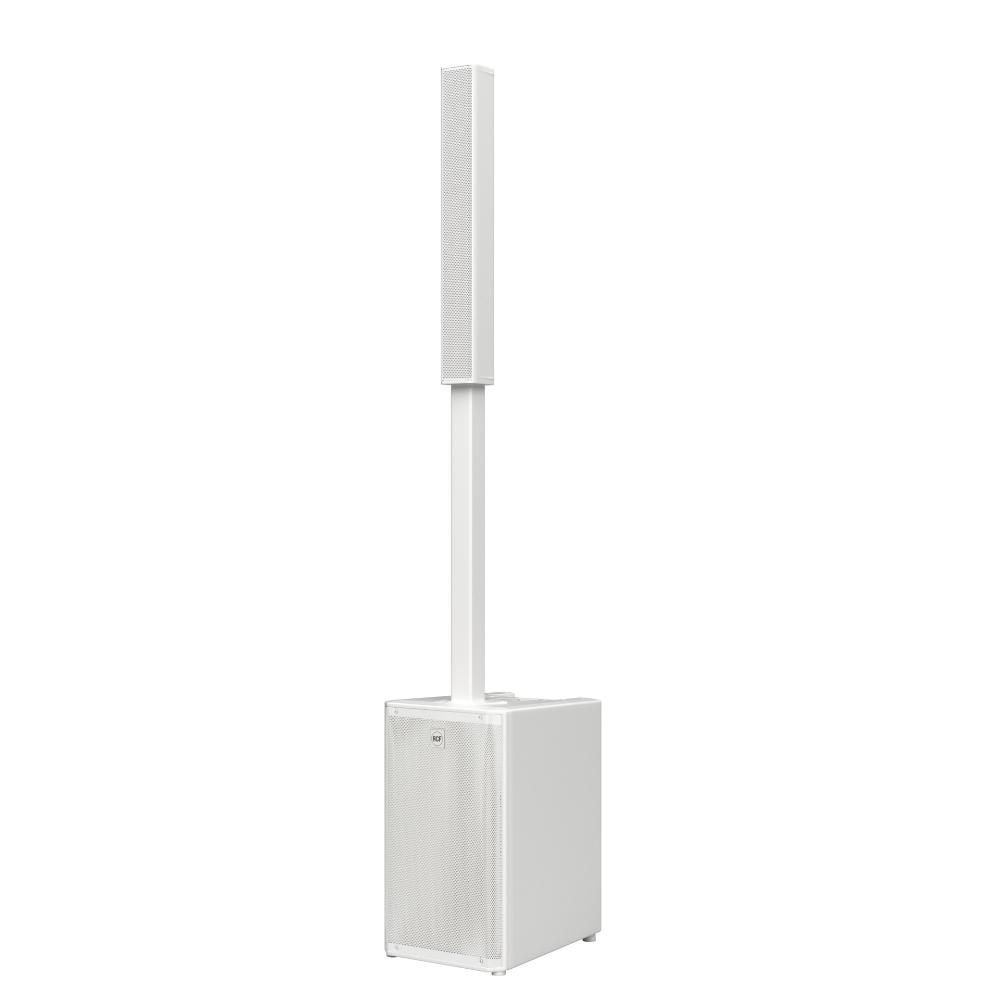

EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75" compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3" full-range transducers and a high-power 12" woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows.
Driven by a 2100W onboard dual-channel Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF's tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

2100 W
Powered by a 2100W onboard Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output.
Three equalization presets are available: Live/Linear for perfectly flat, neutral output, Club for extended lows and crisp highs, and Voice for optimized intelligibility.
Highly energy-efficient, the J9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts.
Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.
The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level.
EVOX J9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with
Acoustics
Frequency Response: 40 Hz - 20,000 Hz
Max SPL @ 1 m: 130 dB
Horizontal Coverage Angle: 120°
Vertical Coverage Angle: 40°

Transducers
Compression Driver: 1 x 0.75" neo, 1.75" v.c.
Full-Range: 6 x 3.0" neo, 1.0" v.c.
Woofer: 1 x 12" v.c.

Input/Output Section
Input Signal: Bal/Unbal
Input Connectors: Combo XLR/Jack
Output Connectors: XLR
Input Sensitivity: -2 dBu/+4 dBu

Processor Section
Frequency Crossover Frequency: 200 Hz/1800 Hz
Protection: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE

Power Section
Total Power: 2100 W Peak
High Frequencies: 700 W Peak
Low Frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE

General
Cabinet Material: PP Composite
Handles: 1 Top
Pole Mount/Cap: Quick-fit Socket
Grille: Steel
Height: 2080.1 mm / 81.89 inches
Width: 350 mm / 13.78 inches
Depth: 462.6 mm / 18.21 inches
Weight: 28.3 kg / 62.39 lbs
1x Evox J9 W
