ProAV2

RadialRadial
₦ 639,654.89
VAT Included
Available in 15 days

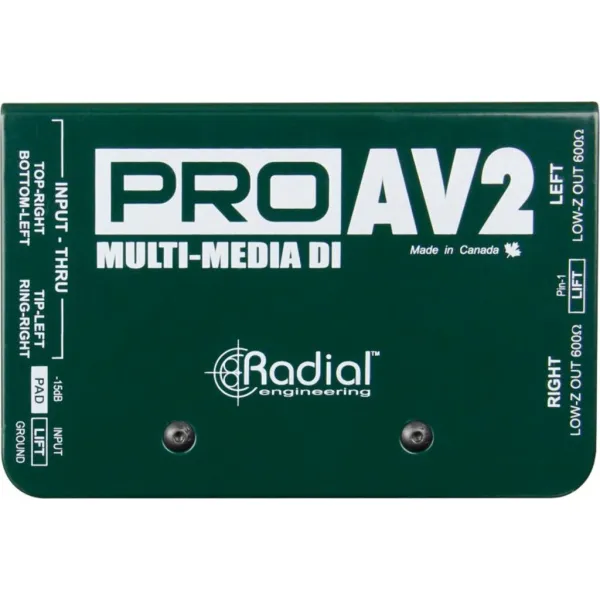

Radial Stereo Passive Multimedia Direct Box, 20Hz ~ 18.5KHz (± 0.2dB) , 128dB

The ProAV2 is an indispensable device for live sound engineers and audio-video technicians alike, with the ability to seamlessly interface nearly any device with a pro audio system.
A 3.5mm stereo input jack and dual 1/4" and RCA connectors ensure that you won't ever be hunting around for adaptor cables, while ultra-quiet performance with transformer isolation helps eliminate hum and buzz from ground loops.
The ProAV2 maintains stereo separation and exhibits linear frequency response from 20Hz to 20kHz, with balanced mic-level XLR outputs that allow you to send signals through a multichannel audio snake on stage or into two channels of a mixing console

° ProAV2: Stereo In ~ Stereo Out
The ProAV2 operates in true stereo (dual mono) making it ideal for stereo devices like laptops and DVD players.
Just like the ProAV1 you can connect with phone, RCA and 3.5mm jacks, quick and adapter-free.
Audio circuit type: Passive, transformer based
Transformer: Eclipse ET-DB2, 12:1 ratio
Number of channels: Dual channel (stereo)
Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
Dynamic range: 128dB
Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
Phase Deviation: 1° @ 100Hz, 8° @ 20Hz
Input Impedance: 140k Ohms, unbalanced
Output Impedance: 150 Ohms, balanced
Maximum Input: +18dB @ 20Hz
Input Connectors: 1/4", RCA, 3.5mm TRS
Output Connectors: XLR
Construction: 14-gauge steel chassis & shell
Size (L x W x D): 3.25" x 5" x 1.875"
Weight: 0.82kg / (1.8lbs)
Shipping size (L x W x D): 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
Shipping weight: 1.2 kg (2.60 lbs)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
