LCB4K
NovaStar
- New
₦ 534,753.35 VAT excl.
- VNNOX Cloud Compatible
- Internal Access Point
- Wi-Fi Antenna Included

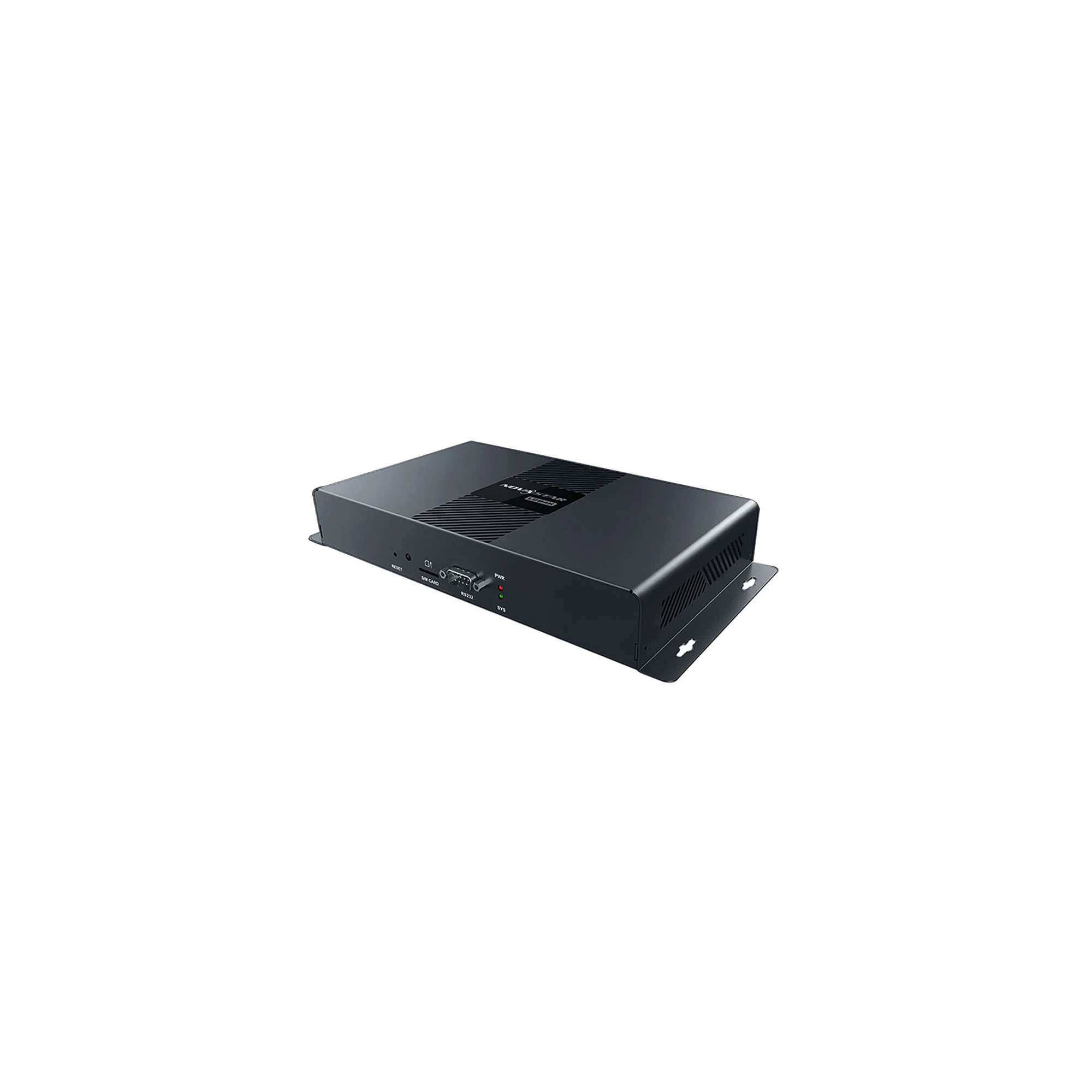

The Novastar LCB4K is a 4K media player designed for digital signage and commercial displays with up to 4K output via HDMI.
It offers a wide range of connectivity options for control and enables synchronized playback on multiple displays using different time synchronization services, such as NTP, GPS (with optional 4G module) and RF (with optional RF module).
It can be connected to a free VNNOX account, which allows you to change content and adjust settings remotely, as long as an Internet connection is available (Ethernet, Wi-Fi or optional 4G).
The LCB4K has powerful processing capabilities with a 1.8GHz quad-core processor, ARM A55 processor, 2GB RAM, 32GB internal storage and support for 2x 4K playback, custom resolutions up to 4096 pixels wide or 4096 pixels high at 60Hz, and many codecs including H.265/HEVC. Stereo audio is available via a 3.5mm mini jack.
It offers media access via USB 3.0 (Type-A), USB 2.0 (Type-A), Ethernet and Wi-Fi and also supports the optional Novastar 4G module for extended remote accessibility.
Inputs
RS-232: 1
Outputs
Main Outputs: 1
Main Output Connectors: 3.5mm TRS Balanced
HDMI 2.0 (Out): 1
Playback
Processor: 1.8GHz Quad-core
Operating Memory: 2GB
Internal Storage Capacity: 32GB
Local Content Upload: Ethernet, USB
Software Specifications
Control Software: VIPLEX Express, VIPLEX Handy, VNNOX
Wireless Specifications
Wi-Fi Mode:: AP
Extra Functions
Scaler Function: Yes
Control & Programming
Maximum Output Resolution: 3840 x 2160
Control Mode: 4G Mobile Network, Ethernet, RS232, USB, Wi-Fi
Connections and Electrical Characteristics
Power supply: 100-240 V AC 50/60 Hz
Power consumption: 15 W
Power input connection: IEC
Data input connection: RJ45, USB A, USB B
Data output connection: HDMI, RJ45, USB A, USB B
Mechanical
IP rating: IP20 (for indoor use only)
Color: Gray
Width (including handles): 275 mm (10.827")
Width (excluding handles): 241 mm (9.488")
Height (including handles): 40 mm (1.575")
Depth (including handles): 139 mm (5.472")
Weight: 1.1 kg (2.425 lb)
1x LCB4K
1x IEC cable
1x USB-A - USB-B cable
1x Wi-Fi Antenna
