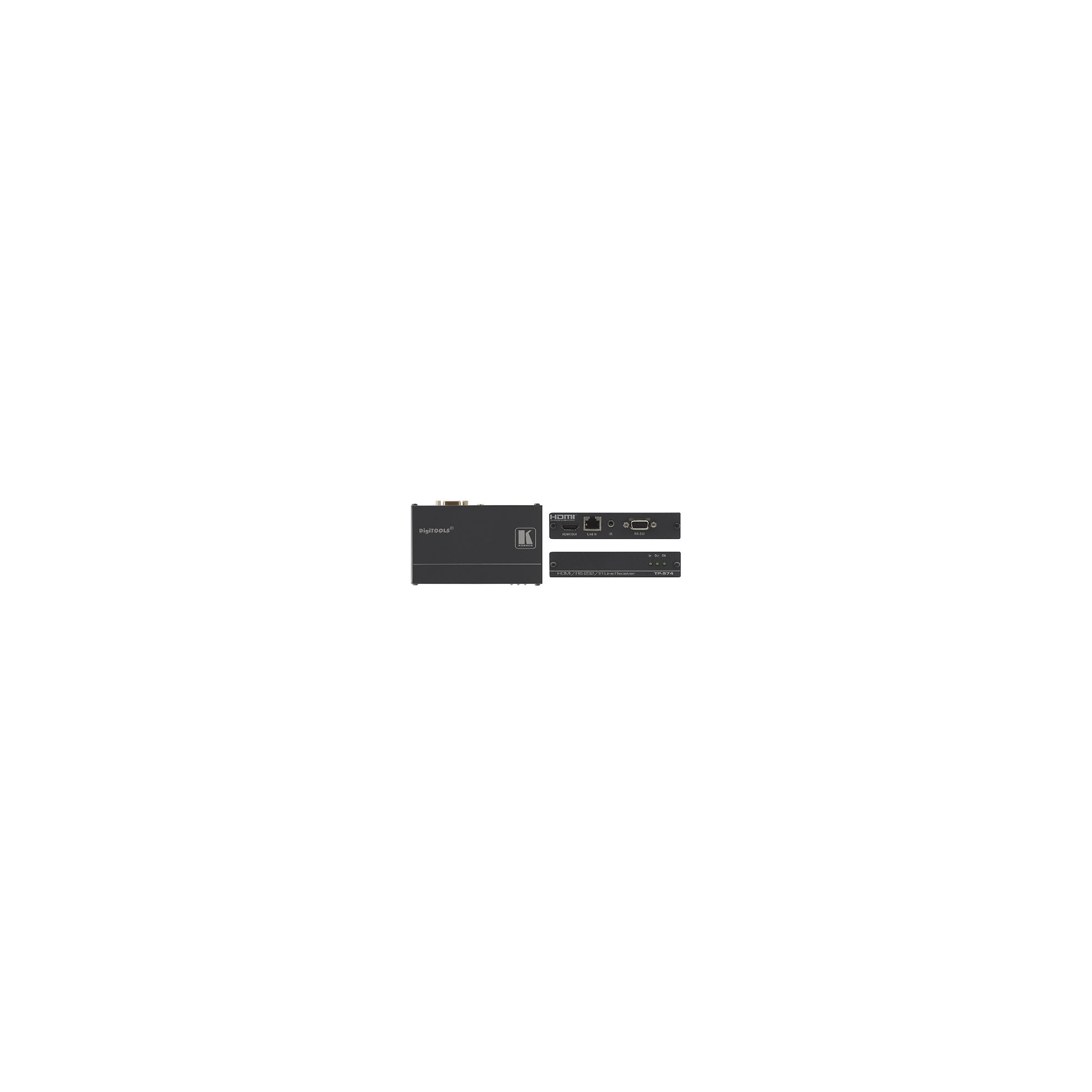

TP-574

° DGKat™ Signal Integration - Kramer''s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
° HDMI Support - HDMI (V.1.4 with Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD).
° 3D Pass-Through.
° EDID PassThru - Passes EDID signals between the source and display.
° Bidirectional RS-232 & IR Interface. - 38400 max baud rate.
° System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-° DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat723 cable.
° Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer''s BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. ° Use only shielded cable where both ends of the shield are soldered to ground.
° Power Connect System™ - A single connection to the transmitter powers both units.


Applications
===========================

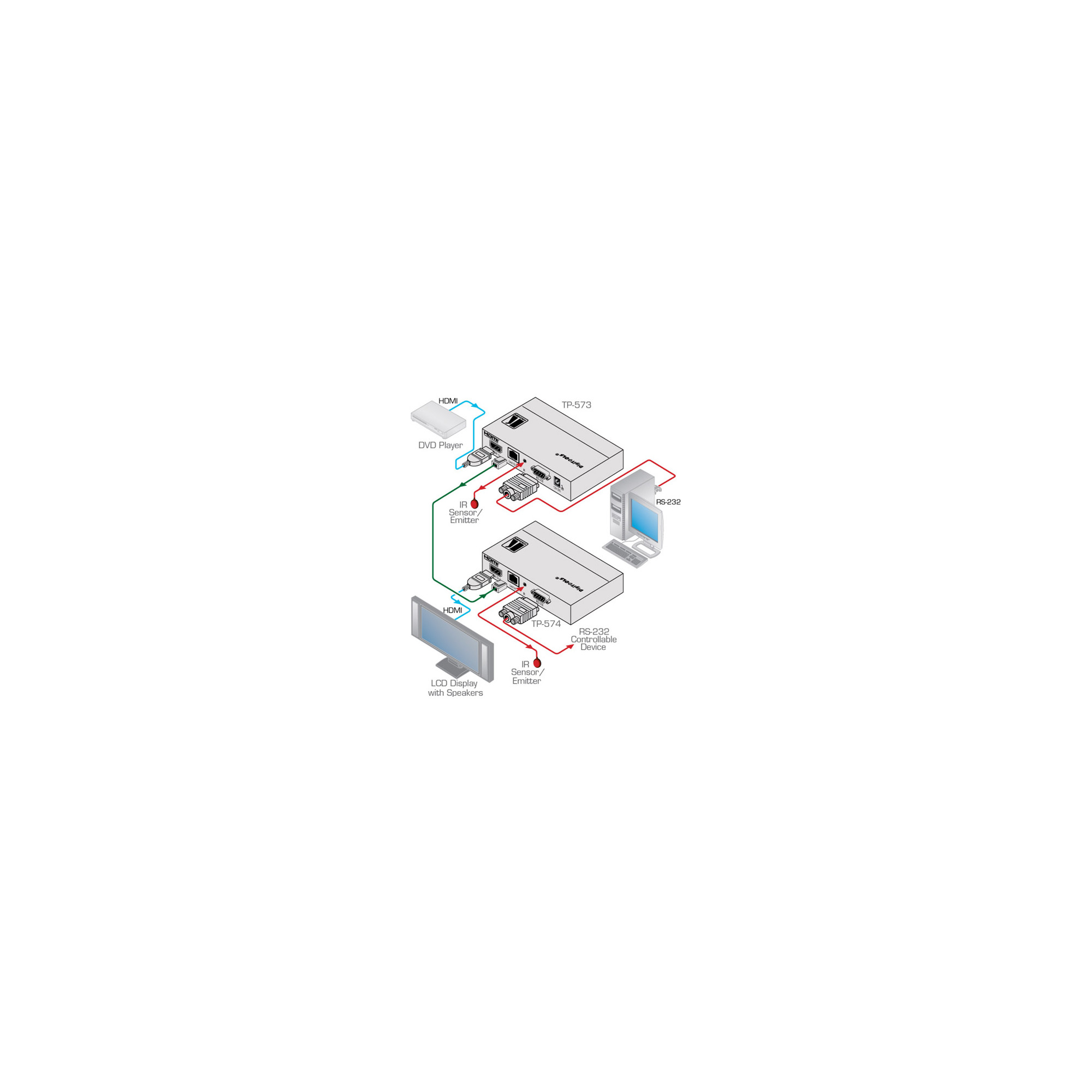

Home theater, presentation and multimedia applications, Rental and staging

Specifications
===========================
OUTPUTS: 1 HDMI connector, 1 bidirectional IR port on a 3.5mm mini jack, 1 bidirectional RS-232 port on a 9-pin D-sub connector.
INPUTS: 1 CAT 5 OUT on an RJ-45 connector.
BANDWIDTH: Supports up to 1.65Gbps bandwidth per graphic channel.
COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP.
POWER CONSUMPTION: 12V DC, 510mA.
DIMENSIONS: 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95"), W, D, H.
WEIGHT: 0.3kg (0.67lbs) approx.
ACCESSORIES: 12V DC power supply.
OPTIONS: RK-3T 19" rack mount, Kramer remote external receiver, Kramer BC DGKat524 (CAT 5 24AWG) and BC DGKat623 (CAT 6 23AWG) cables.
