VP-558

Name: VP-558
Brand: Kramer
SKU: VP-558
Price: 14264980 NGN
Availability: OutOfStock

Kramer

11x4 Presentation Switcher/Scaler

go to the technical sheet

₦ 14,264,980.00

₦ 13,269,749.00 VAT excl.

Available in 14 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

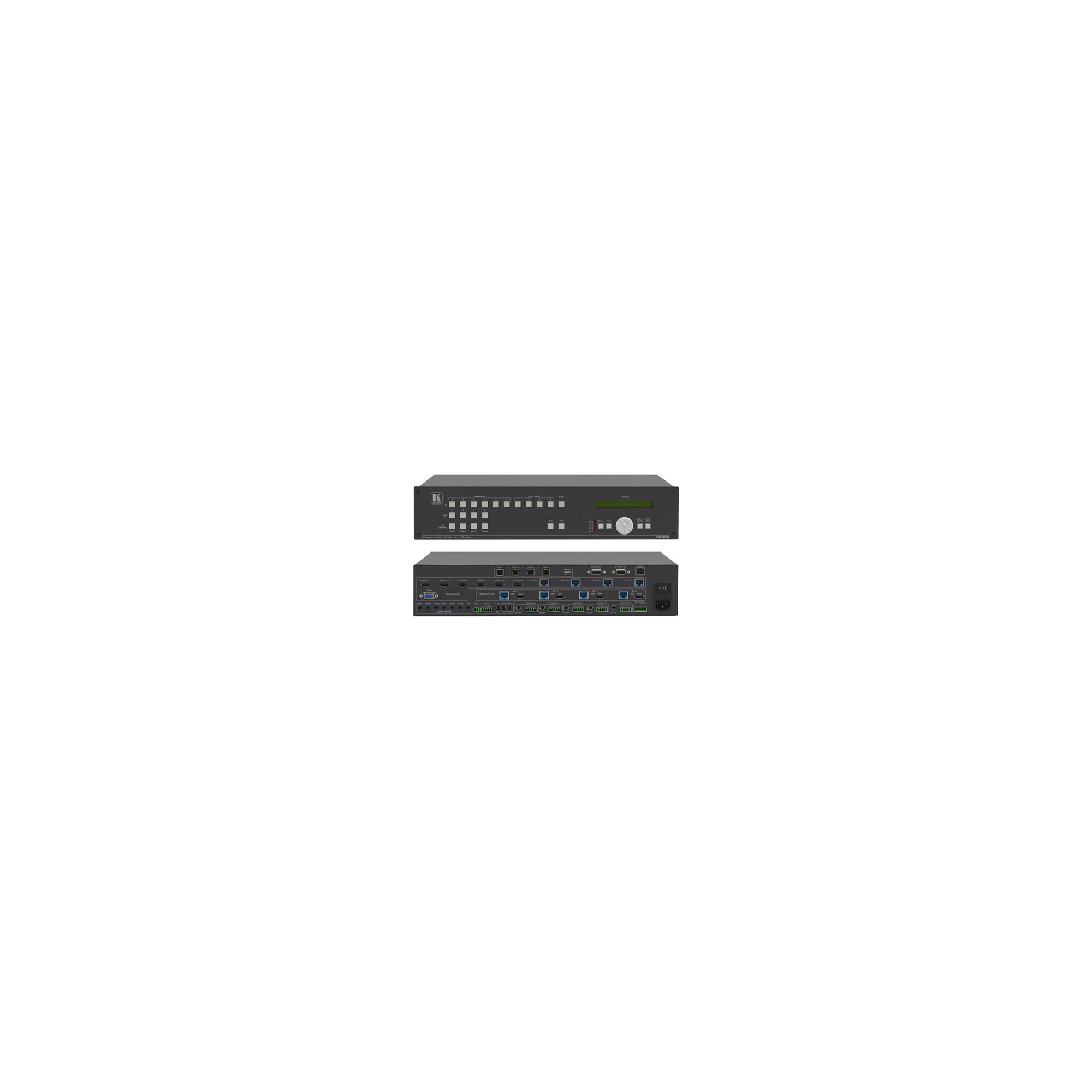

Kramer The 11x4:2 Presentation Matrix Switcher and Scaler System from Kramer can output four independently scaled images with support for analog, digital, and embedded audio. Each output includes an HDMI and HDBaseT connector. The scaler features six HDMI inputs, four HDBaseT inputs, an analog VGA input, and a 4x1 USB switcher. It also includes a microphone input, independent stereo audio outputs, a monitor output, an amplified speaker output, and an audio digital signal processor (DSP).

Pix-Perfect scaling technology allows for precise pixel mapping and high-quality full upscaling and downscaling
Built-in ProcAmp allows you to adjust color, hue, sharpness, noise, contrast, and brightness
Supports up to 1080p/UXGA output resolution
Multiple aspect ratio selections
Supports up to 230' for the HDBT inputs and outputs
Input/output audio level adjustment
Selectable microphone talkover or mix modes
Analog and embedded audio support
Can be set to follow the switching of the video layer, or can act as an independent switcher
Built-in web pages for easy setup and remote control
OSD (On Screen Display) for easy setup and adjustment, accessible via the front panel buttons
Built-in power amplifier
Firmware upgrade via Ethernet
HDTV compatible and HDCP compliant

Specifications
====================================
Inputs
° 6 x HDMI connector
° 1 x 15-Pin VGA
° 4 x HDBT RJ-45 connectors
° 4 x USB port
° 6 x Unbalanced analog audio 3.5 mm mini jacks, for HDMI
° 1 x Unbalanced analog audio 3.5 mm mini jack for PC
° 1 x Aux in/mic balanced stereo audio on a 5-pin terminal block connector

Outputs
° 4 x HDBT on RJ-45 connectors
° 4 x HDMI
° 1 x USB port
° 4 x Audio, balanced stereo on 5-pin terminal block connectors
° 4 x Audio, S/PDIF on RCA connectors
° 1 x Monitor, balanced stereo on a 5-pin terminal block connector
° 1 x Monitor, S/PDIF on an RCA connector
° 1 x Stereo speaker (2 x 10 W into 4 Ohms), on a 4-pin terminal block connector

Output Resolutions Native:
1920 x 1200 @ 60
1920 x 1080p @ 60
1920 x 1080i @ 60
1920 x 1080p @ 50
1920 x 1080i @ 50
1680 x 1050 @ 60
1600 x 1200 @ 60
1400 x 1050 @ 60
1440 x 900 @ 60
1360 x 768 @ 60
1280 x 1024 @ 60
1280 x 768 @ 60
1280 x 800 @ 60
1280 x 720p @ 60
1280 x 720p @ 50
1024 x 768 @ 60
800 x 600 @ 60
720 x 576p @ 60
720 x 480p @ 60
640 x 480 @ 60

Controls
HDMI 1/2/3/4/5/6
HDBT 1/2/3/4
PC
USB 1/2/3/4 input selector buttons
2 x RS-232
Ethernet
Line/Mic selector switch
Cond/Dyn (48 V) selector switch
Mono/Stereo selector switch
REM for muting audio

General
Power Consumption 100 to 240 VAC, 70 VA maximum
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -40 to 158°F (-40 to 70°C)
Relative Humidity 10 to 90%, Non-condensing
Dimensions 19 x 14.4" (48.3 x 36.6 cm)
2 RU
Weight 11 lb (5 kg) Approximately
