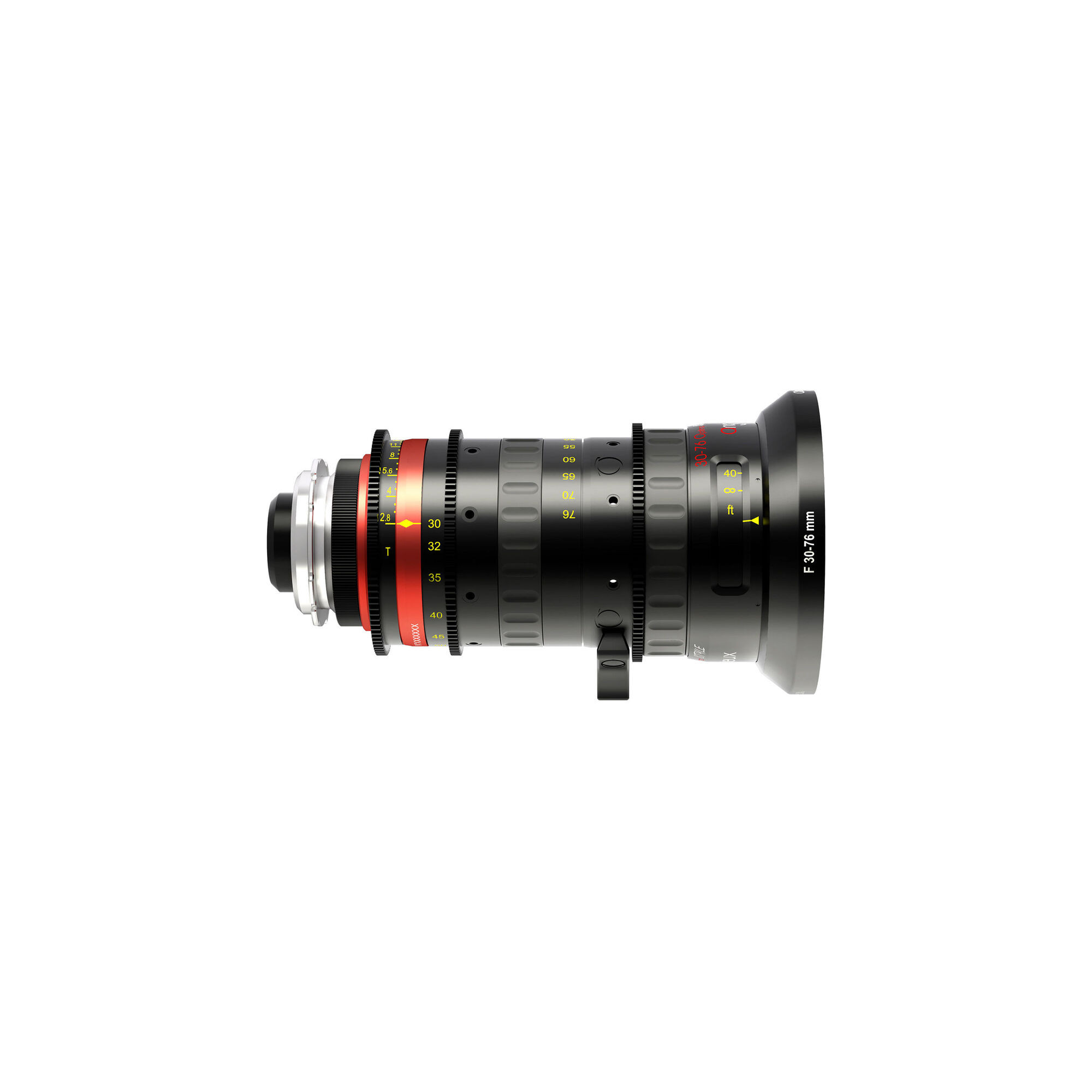

Optimo Style 30-76

The Optimo Style line of zoom lenses inherits the virtues of the famed Optimo Cine lenses, offering extra production efficiency and system compatibility compared with the former Optimo DP lenses. The Optimo Style line is initially comprised of two lightweight zoom lenses with an optional motorization system, and a 10x zoom lens inspired by the legendary Angenieux 25-250mm zoom. All Optimo Style lenses are carefully manufactured to achieve a resolution of 4K and beyond, making them a sound investment for years to come.

Covers Up to Super 35 Sensor Size
2.5x Zoom Ratio
Lightweight, Compact Design
Suitable for 4K+ Image Capture
Fast T2.8 Maximum Aperture
320° Focus Rotation
Short 2' Close Focus
114mm Front Diameter
PL Mount with Optional Mounts Available


MAIN FEATURES

Constant aperture T2.8 throughout the entire zoom range
Compact and very light (1.92/4.2lbs). Ideal for handheld, Steadicam, compact, gimbals and drones
Superb image quality with minimal aberration
Color reproduction matches the highly acclaimed OPTIMO lens series
Extremely well controlled distorsion
Internal focus, minimal breathing
Precise and ergonomic focus ring with scale rotation of 320 degrees and 20 focus witness marks
Compatible with ASU servo unit (integrated motors for FTZ remote control through industry standard control systems)
Compatible with Optimo 1.4x and 2x extenders (42-110mm at T4 with 1.4x and 60-152mm at T5.6 with 2x extenders)
precise and rugged travelling of the zoom and focus groups using Angénieux classic rod mechanical guiding system
Suited for extreme production environment (temperature range from -20°C to +45°C)
Available in PL mount. Easily interchangeable to Panavision PV, Canon EF mounts
Image coverage: S35+ (diameter 31.4 mm) (more info in DOWNLOAD section)


Field of view for 22×16 mm
Focal Length 30 mm 76 mm
Horizontal angular field of view 40.2° 16.4°
Object dimensions at MOD (mm) 321×232 126×92
