DZO Gnosis 243265mm FT Kit

Name: DZO Gnosis 243265mm FT Kit
Brand: DZOFilm
SKU: DZO Gnosis 243265mm FT Kit
Price: 18525.97 EUR
Availability: OutOfStock

DZOFilm

EAN: 6970604942409

DZOFilm 24, 32, 65mm T2.8 Gnosis Macro Prime 3-Lens Kit (Feet)

go to the technical sheet

€ 18.525,97

€ 17.233,46 VAT excl.

Available in 14 days

Not sure if this is the right product for you? Talk to a consultant

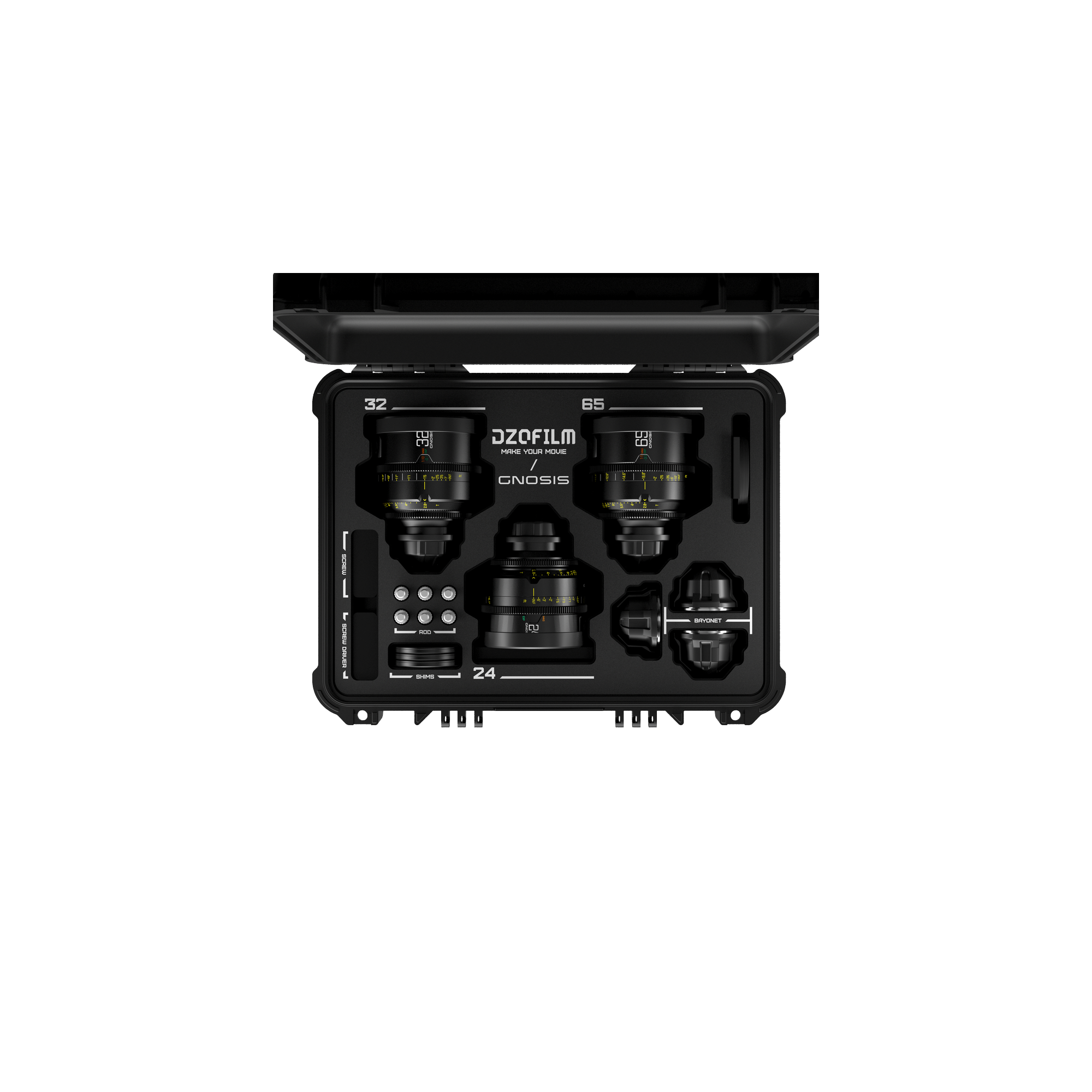

DZOFilm 24, 32, 65mm T2.8 Gnosis Macro Prime 3-Lens Kit (LPL with PL & EF Mounts, Feet) - Black

This wider Gnosis Macro Prime 3-Lens Kit from DZOFilm bundles together 24, 32, and 65mm lenses, providing macro views in wider, wide, and standard options with focus marks in feet. Each ARRI LPL-mount lens comes with both ARRI PL and Canon EF mounts, enabling you to switch mounts to suit a variety of cine-style cameras. Read more below about each lens in this kit.

24, 32 & 65mm T2.8 Macro Prime Lenses
Covers Full-Frame Format
Native LPL + PL & EF Mounts
T2.8 to T22 Aperture Range
Focus Marks in Feet

DZOFilm 24mm T2.8 Gnosis Macro Prime Lens (LPL with PL & EF Mounts, Feet)
Focal Length: 24mm
Lens Mount: ARRI LPL
Lens Format Coverage: Full Frame
Image Circle: 46.5 mm
Maximum Aperture: T2.8
Minimum Aperture: T22
Horizontal Angle of View: Full Frame: 83.8°
Minimum Focus Distance: From Image Plane: 6.1" / 15.5 cm
Optical Design: 12 Elements in 10 Groups
Diaphragm Blades: 12
Gear MOD & Pitch:
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter: 114 mm
Filter Thread: 105 mm
Focus Scales: Imperial
Focus Rotation: 300°
Iris Rotation: 62°
Electronic Communication: No
Maximum Magnification Ratio: 1.25:1
Image Stabilization: No
Lens Support: 3/8"-16 Mounting Threads
Length: 3.9" / 100 mm
Weight: 2.78 lb / 1.26 kg

DZOFilm 32mm T2.8 Gnosis Macro Prime Lens (LPL with PL & EF Mounts, Feet)
Focal Length: 32mm
Lens Mount: ARRI LPL
Lens Format Coverage: Full Frame
Maximum Aperture: T2.8
Minimum Aperture: T22
Minimum Focus Distance: From Unspecified Point in Lens: 6.6" / 16.8 cm
Gear MOD & Pitch
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Filter Thread: None
Focus Scales: Metric
Maximum Magnification Ratio: 1:1
Image Stabilization: No
Weight: 3.22 lb / 1.46 kg

DZOFilm 65mm T2.8 Gnosis Macro Prime Lens (LPL with PL & EF Mounts, Feet)
Focal Length: 65mm
Lens Mount: ARRI LPL
Lens Format Coverage: Full Frame
Image Circle: 46.5 mm
Maximum Aperture: T2.8
Minimum Aperture: T22
Minimum Focus Distance: From Image Plane: 9.36" / 23.77 cm
Optical Design: 11 Elements in 8 Groups
Diaphragm Blades: 16
Gear MOD & Pitch
Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Front Diameter: 114 mm
Filter Thread: 105 mm
Focus Scales: Metric
Focus Rotation: 300°
Iris Rotation: 67°
Electronic Communication: No
Maximum Magnification Ratio: 1:1.33
Image Stabilization: No
Length: 4.4" / 112 mm
Weight: 3.24 lb / 1.47 kg
