DZO Linglung 10-24 20-70 mm

Name: DZO Linglung 10-24 20-70 mm
Brand: DZOFilm
SKU: DZO Linglung 10-24 20-70 mm
Price: 3577.79 EUR
Availability: OutOfStock

DZOFilm

DZOFilm DZO 10-24mm & 20-70mm T2.9

go to the technical sheet

€ 3.577,79

€ 3.328,18 VAT excl.

Available in 13 days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

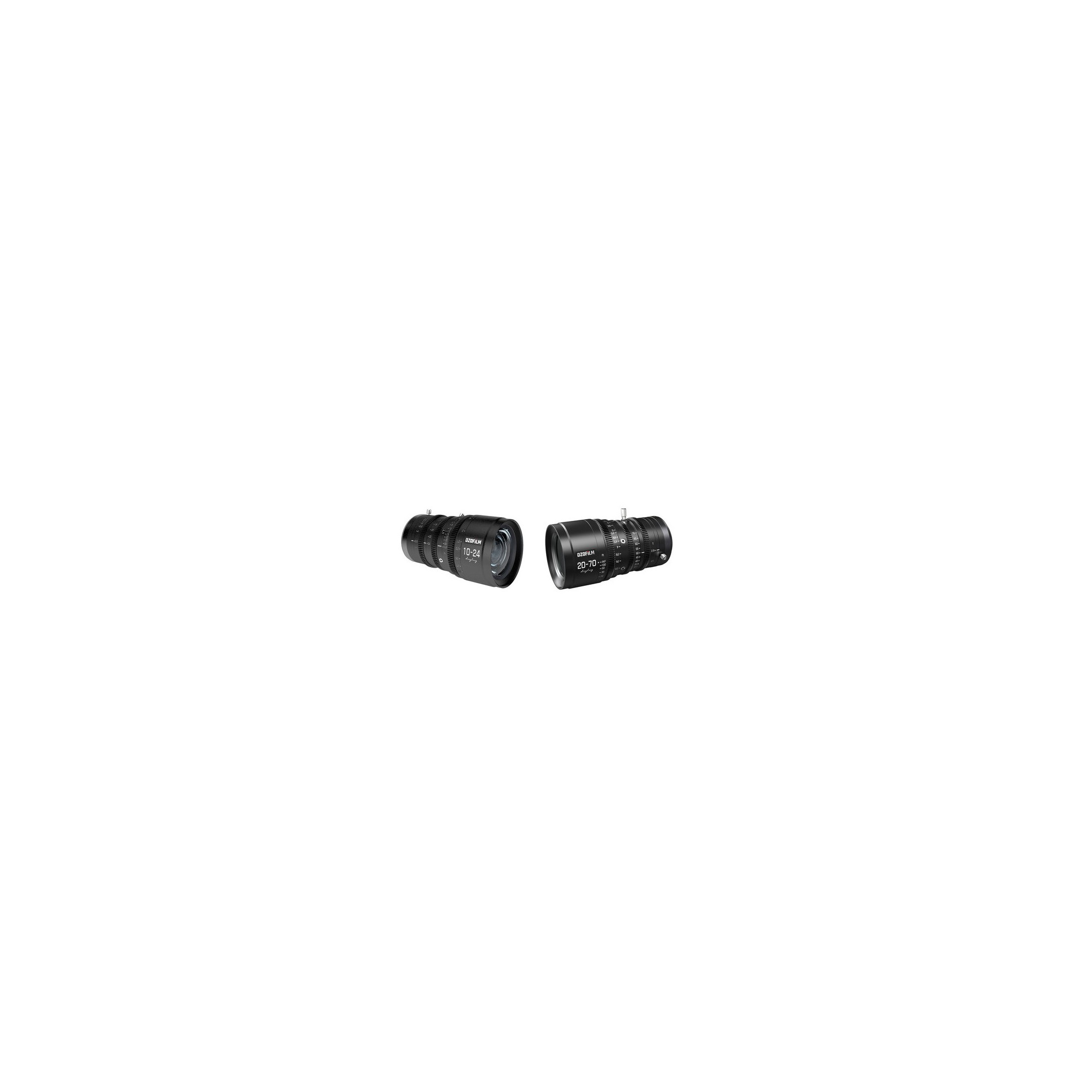

DZOFilm DZO 10-24mm & 20-70mm T2.9 MFT Parfocal Cine Lens Bundle

Featuring two parfocal lenses of almost identical size, this MFT Parfocal Cine Lens Bundle from DZOFilm offers a flexible and consistent workflow with focal lengths from a wide-angle 10mm to 70mm.
Included are a 10-24mm and a 20-70mm cine lens for MFT-mount cameras. Both are parfocal lenses, designed to maintain focus throughout the zoom range.
Both feature a T2.9 aperture, 12-blade iris, and minimal breathing. They have 270° focus rotation and a two-sided focus scale with imperial and metric measurements.
The lenses are designed with a durable all-metal housing with an 80mm front diameter and 77mm filter thread.
The focus, iris, and zoom gears are also consistently 0.8 MOD/32-pitch.
Back focus adjustment of 19.2mm allows for efficient swapping between different cameras.

Key Features

Maintain Focus Throughout Zoom Range
Near-Zero Breathing
12-Blade Iris
19.7 & 31" Minimum Focus Distances
270° Focus Rotation with 26 Focus Marks
Two-Sided Focus Scale (Imperial/Metric)
Back Focus Adjustment
80mm Front Diameter / 77mm Filter Thread
All-Metal Housing

Spare parts Photographic Lens Adapter

DZOFilm

DZO-ACC1MPL

€ 129,20 VAT included

Available 1 unit in 4 Days

DZOFilm

DZO-ACC1MEF

€ 129,20 VAT included

Available 18 unit in 4 Days

DZOFilm DZO 10-24mm T2.9 MFT Parfocal Cine Lens Specs
Focal Length: 10 to 24mm
Lens Mount: Micro Four Thirds
Lens Format Coverage: MFT
Image Circle: 21.6 mm
Maximum Aperture: T2.9
Minimum Aperture: T22
Diagonal Angle of View: MFT: 92.5 to 49.3°
Horizontal Angle of View: MFT: 79.7 to 40.3°
Minimum Focus Distance From: 19.7" / 50 cm
Diaphragm Blades: 12
Gear MOD & Pitch: Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter: 80 mm
Filter Thread: 77 mm
Focus Scales: Imperial
Focus Rotation: 270°
Iris Rotation: 70°
Zoom Rotation: 100°
Zoom Ratio: 2.4x
Image Stabilization: No
Length: 6.11" / 155.1 mm
Weight: 2.43 lb / 1.1 kg

Packaging Info
Package Weight: 3.82 lb
Box Dimensions: 8.8 x 5.5 x 5.4"

DZOFilm DZO 20-70mm T2.9 MFT Parfocal Cine Lens Specs
Focal Length: 20 to 70mm
Lens Mount: Micro Four Thirds
Lens Format Coverage: MFT
Image Circle: 21.6 mm
Maximum Aperture: T2.9
Minimum Aperture: T22
Diagonal Angle of View: MFT: 57.6 to 17.9°
Horizontal Angle of View: MFT: 47.5 to 14.3°
Minimum Focus Distance: From : 31.1" / 79 cm
Diaphragm Blades: 12
Gear MOD & Pitch: Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter: 80 mm
Filter Thread: 77 mm
Focus Scales: Imperial
Focus Rotation: 270°
Iris Rotation: 70°
Zoom Rotation: 100°
Zoom Ratio: 3.5x
Image Stabilization: No
Length: 6.2" / 157.5 mm
Weight: 2.43 lb / 1.1 kg

Packaging Info
Package Weight: 3.6 lb
Box Dimensions: 8.8 x 5.5 x 5.5"

DZOFilm DZO 10-24mm T2.9 MFT Parafocal Cine Lens
Front Lens Cap
Rear Lens Cap
Limited 1-Year Warranty
DZOFilm DZO 20-70mm T2.9 MFT Parafocal Cine Lens
Front Lens Cap
Rear Lens Cap
