DZOFilm

6970604944083

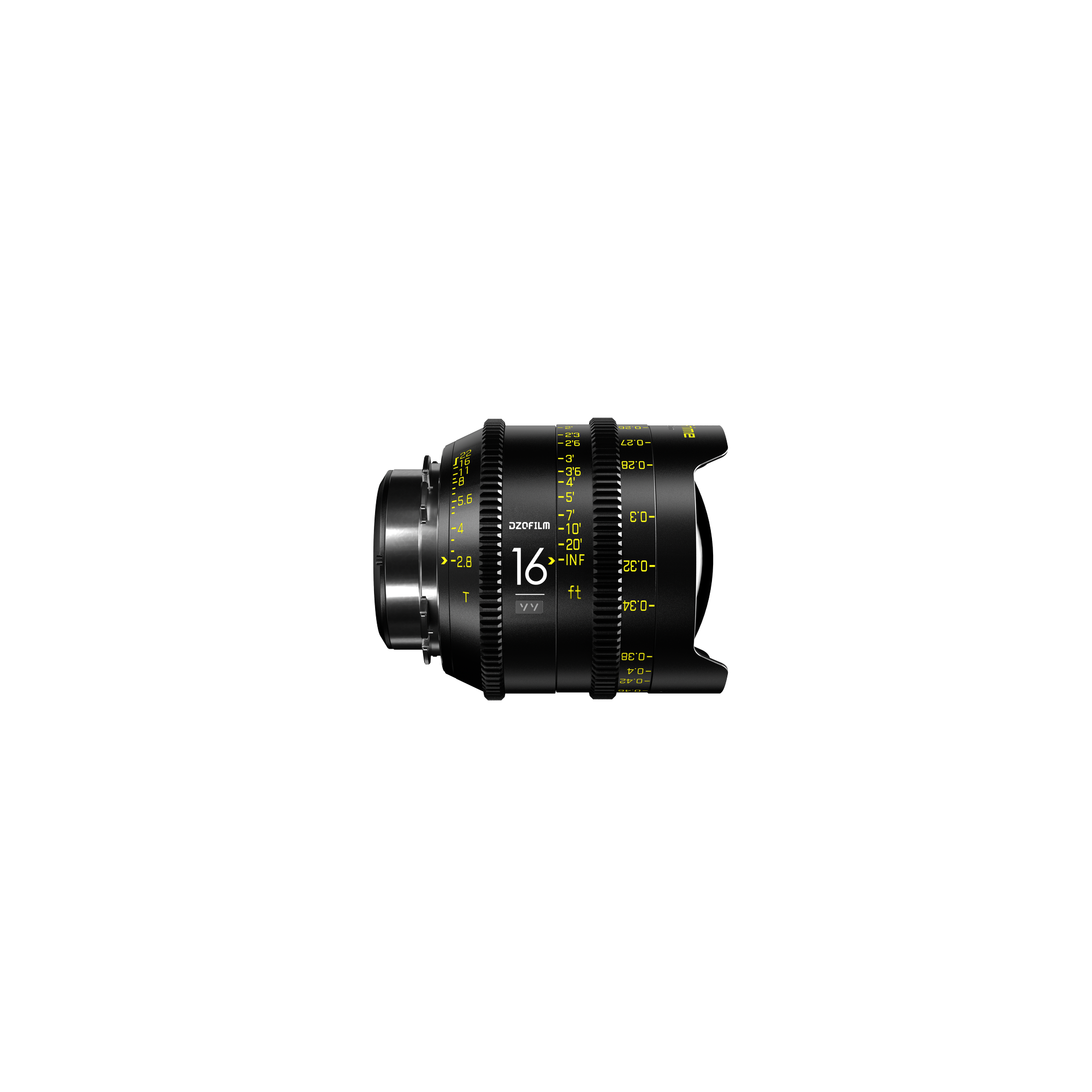

DZOFilm VESPID 16mm T2.8 lens (PL Mount + EF Mount) - DZO-V01628PL
go to the technical sheet
€ 1.953,77

€ 1.817,46 VAT excl.

Available 1 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant
Relatively small and light, the DZOFilm VESPID 16mm T2.8 lens is part of DZOFilm's VESPID lens series and is suitable for independent and high-end full frame cinematography. The lens has an 80mm front diameter, which allows it to work with virtually any cine-style matte box. The small size makes this lens an attractive option when working with drones and gimbals, as well as when shooting handheld or run-and-gun. Featuring an interchangeable PL mount, this fully manual lens works with cameras equipped with either a PL or EF mount with the included EF mount. The full frame coverage of the lens supports sensors with an image circle up to 46.5mm for use on cameras with sensors up to full frame without vignetting.

The 16-blade diaphragm, which is consistent across the VESPID prime lens range, creates round blurry lights that look more natural and contribute to the lens's natural-looking bokeh. The focus ring features 270 ° rotation for precise focusing and the aperture ring has generous 50 ° rotation. The lens has a magnetically attached rear filter for ND filters.

Main features
This 16mm lens has an image circle that covers a full frame sensor. When mounted on a camera with a Super35 sensor, it provides a closer shot than a camera with a full frame sensor.
The lenses provide an organic look that is a cross between modern cool and technically precise aesthetics and vintage cinema lenses.
Coated optics help provide natural-looking contrast, helping to control hazy glare and specular highlights, preventing glare from fading the image.
The 16-blade diaphragm creates natural looking bokeh and creates blurry, rounded lights.
The modern mechanical design allows each lens to be small in size and light in weight, while sharing the same 80mm front diameter for quick lens changes.
The rear of the lens has a magnetically attached rear filter that accepts optional ND filters that allow you to control exposure without affecting the aperture setting or changing the depth of field.
A minimum focusing distance of 10 "allows you to get closer to the subject.

Focal length: 16 mm
Lens mount: ARRI PL
Lens size coverage: Full frame
Image circle: 46.5mm
Maximum opening: T2.8
Minimum opening: T22
Minimum focusing distance: From the image plane: 9.84 "/ 0.25m
Diaphragm blades: 16
Front diameter: 80 mm
Focus scales: Imperial metric
Rotation of focus: 270 °
Rotation of the iris: 50 °
Electronic communication: No
Image stabilization: No
Lens Support: None
Length: 3.4 "/ 87mm
The weight: 32.8oz / 930g
Packaging information
Package Weight: 2,895lbs
Box dimensions: 8.6 x 5.5 x 5 "

DZOFilm VESPID 16mm T2.8 Cine Lens (PL & EF Mounts)
Front Lens Cap
Rear Lens Cap
