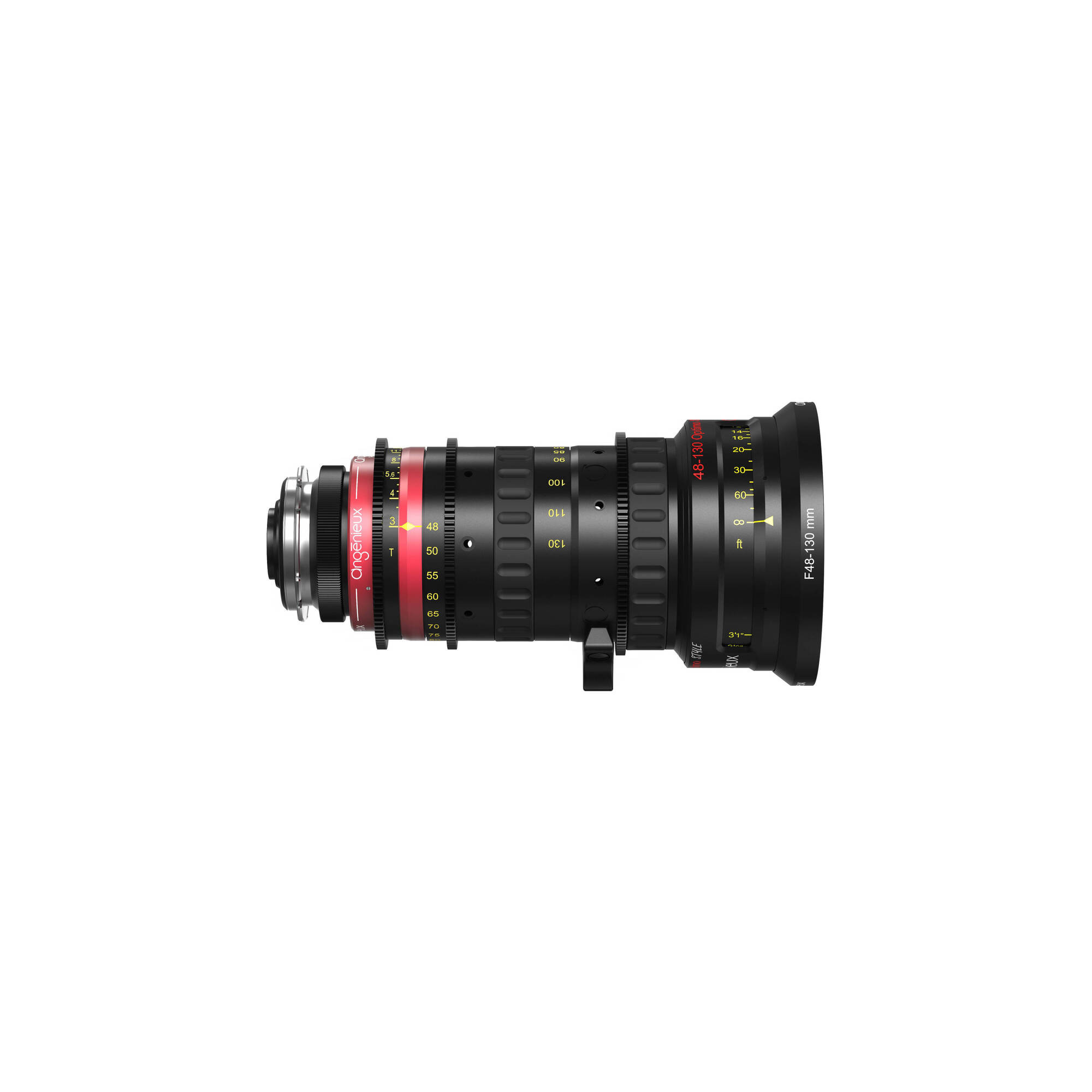

Optimo Style 48-130

The 48-130 T3 is a complementary zoom lens to the 16-40 T2.8 and 30-76 T2.8 Optimo Style short zooms. With a 2.7x zoom range, a long focal length of 130mm and a fast aperture of T3, the 48-130 Optimo Style is the ideal lens for a wide range of applications including documentaries, wildlife, interviews and features. With exceptional optical performances, great image coverage (Ultra S35 format up to 34.6mm image circle), minimal breathing and a fast aperture of T3 with no ramping, the 48-130 is a great companion for shooting high end digital productions . Its light weight and compactness provide a perfect balance for shoulder works while mounted on newest S35 digital cameras. The 48-130 is sharing the same rugged and precise mechanical construction with the other Optimo Style short zooms, making it a trusted tool while shooting in challenged environments. With that additional lens the Optimo Style short zooms cover a focal length range of 16mm to 260mm with the use of the 2x extender. This affordable package can be complemented with the 25-250 Optimo Style for specific tripod works.

MAIN FEATURES

2.7x zoom range with a telephoto position of 130mm in an extremely compact form factor
Constant aperture T3 throughout the entire zoom range
Enhanced image circle to Ultra S35 up to 34.6mm. Fully covers RED 8K Helium sensor
Compact and very light (1.95kg / 4.3lbs). Ideal for handheld, Steadicam, compact gimbals, remote heads, drones.
Superb image quality with minimal aberration
Color reproduction matches the highly acclaimed Optimo lens series
Extremely well controlled distortion
Internal focus, minimal breathing
Precise and ergonomic focus ring with scale rotation of 320 degrees with over 20 precise focus witness marks
Compatible Angénieux Servo Unit (integrated motors for FTZ remote control through industry standard control systems)
Compatible with Optimo 1.4x and 2x extenders ( 67-182mm at T4.2 with 1.4x, 96-260mm at T6 with 2x)
Precise and rugged travelling of the zoom and focus groups using Angenieux classic rod mechanical guiding system
Suited for extreme production environment ( temperature range from -20°C to +45°C)
Available in PL mount. Easily interchangeable to Panavision PV, Canon EF mounts


Field of view for 22×16 mm
Focal Length 48 mm 130 mm
Horizontal angular field of view 25.6° 9.8°
Object dimensions at MOD (mm) 386×281 144×105
