PT-120XL

PT-120XL

Kramer

Twisted pair receiver for computer graphics video signals
go to the technical sheet
₦ 381,678.00

₦ 355,049.00 VAT excl.

Available in 14 days
Manuale: Download
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant

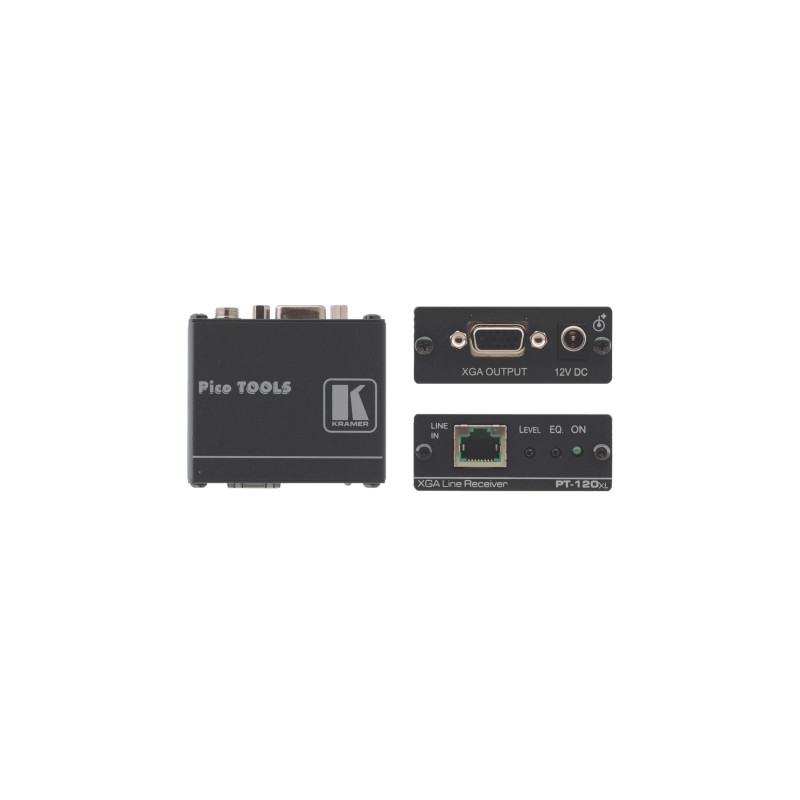

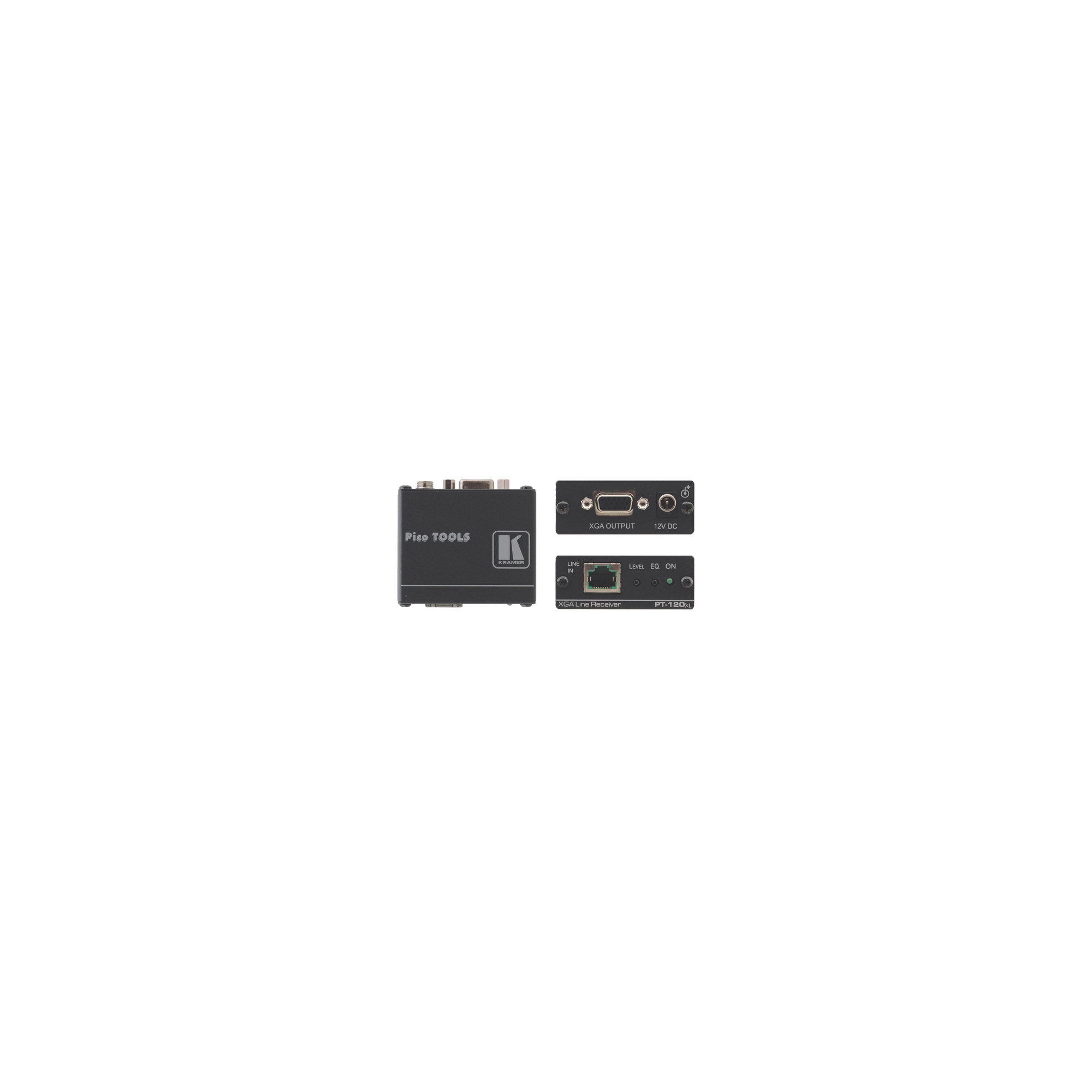

The PT-120xl is an extended range twisted pair receiver for computer graphics video signals. It converts a twisted pair signal from a WP-110 transmitter (or other compatible Kramer transmitter) to a computer graphics signal.

Download

Manuale

Download (1.2MB)

HDTV Compatible.
Max. Resolution: WUXGA & 1080p.
Level (Gain) & EQ (Peaking) Controls.
System Range:Up to 300m (980ft). Greater distances possible depending on signal resolution and cable.
Cable:UTP (unshielded twisted pair) or STP (shielded twisted pair) cable such as CAT 5.
Power Connect™ System:A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other

TECHNICAL SPECIFICATIONS
INPUT:1 RJ-45 connector.
OUTPUT:1 VGA/UXGA on a 15-pin HD connector.
MAX. OUTPUT LEVEL:1.3Vpp.
RESOLUTION:Up to WUXGA, 1080p.
RANGE:Up to 300m (980ft).
CONTROLS:Level: 0.7v to 1.3v, 300m, EQ: 300m @120MHz.
COUPLING:DC.
POWER CONSUMPTION:12V DC, 350mA max.
OPERATING TEMPERATURE:0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:-40° to +70°C (-40° to 158°F).
HUMIDITY:10% to 90%, RHL non-condensing.
DIMENSIONS:6cm x 6.5cm x 2.5cm (2.36" x 2.56" x 1") W, D, H.
WEIGHT:0.14kg (0.31lbs) approx.
ACCESSORIES:Power supply.
OPTIONS:RK-4PT 19inch rack adapter
