Hydra Alien Pro Electronic Mounting Kit - V Mount
go to the technical sheet
₦ 6,805,257.00

₦ 6,330,471.40 VAT excl.

Available 1 unit in 4 Days
Not sure if this is the right product for you? Talk to a consultant

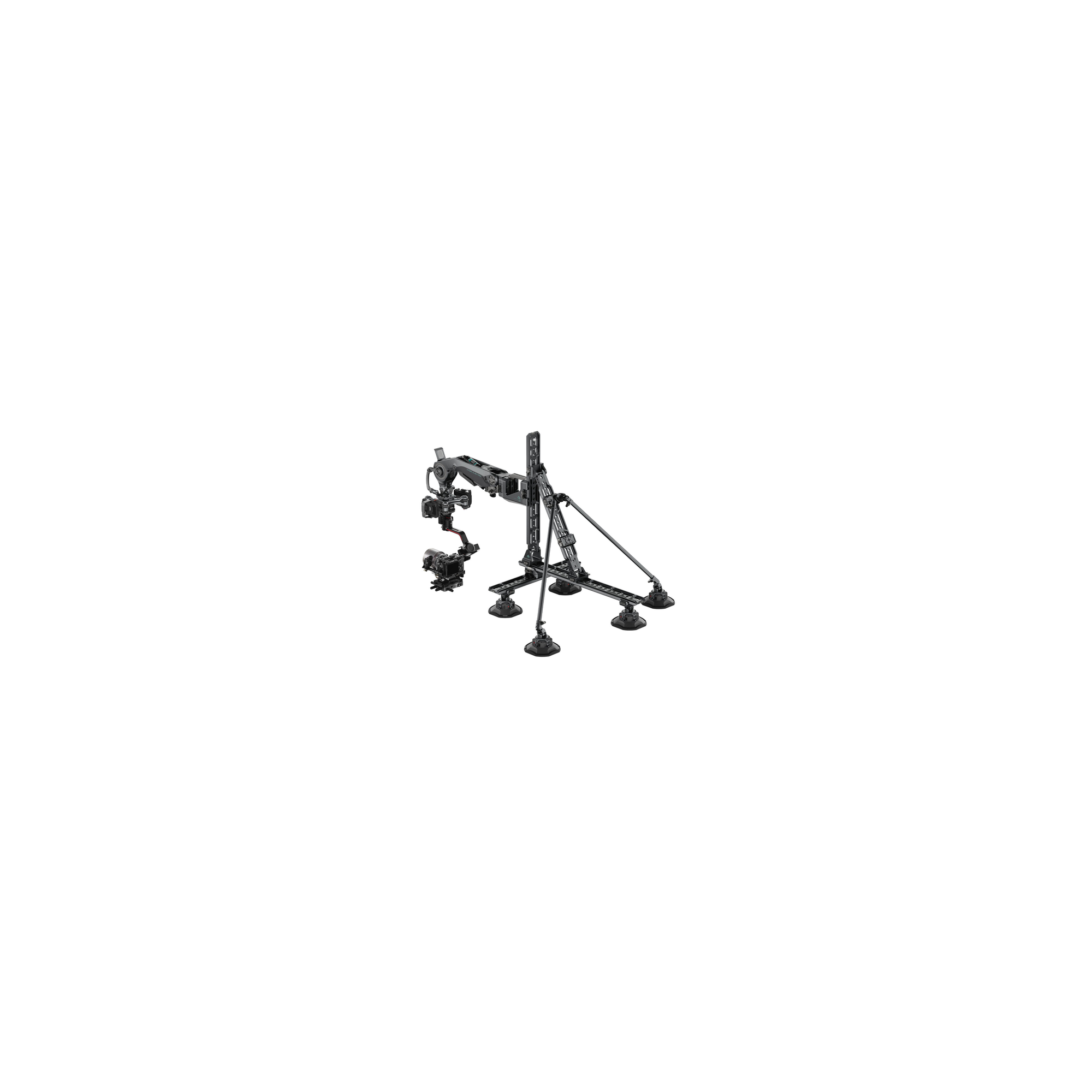

Tilta Hydra Alien Pro Electronic Mounting Kit - V Mount

The system utilizes a highly customizable combination of dovetail-like plates and suction cups that allows users to fine-tune the exact placement of their shot to achieve almost any angle possible when mounting to a vehicle.
The newly designed dovetail plates feature retractable safety pins at every position which the arm can be mounted.
This drastically improves the safety of the system, especially when adjusting the position of the arm via a new sliding design which makes small adjustments quick and easy.
The newly designed shock absorbing arm supports higher payloads up to 28.7lbs and features a motorized shock absorbing head which provides greater stability and uses motors to help stabilize the system similar to a gimbal.

When paired with the optional Nucleus Nano 2 Control Handle, the damping of the shock absorbing head can be adjusted remotely which makes this ideal for fast paced environments and provides the opportunity to fine tune damping settings as road conditions change in real time.
When paired with a lightweight gimbal, this creates an incredibly smooth image while being more user friendly when compared to traditional systems.
This innovative system greatly expands possibilities for both entry level and experienced users who may not have the full budget needed for more traditional vehicle mounted rigs.

Materials: Aluminum alloy
Color: Grey
Case 1: 68 x 57 x 30cm /26.7 x 22.4 x 11.8 inches
Case 2: 103 x 48 x 25cm / 40.5 x 18.9 x 9.8 inches
Case 1: 16kg / 35 lbs
Case 2: 17.3kg / 38 lbs

Hydra Alien Pro Electronic Mounting Kit – V Mount (HDA-T18-A-V):
1x Box.1 (HDA-T18-SAK-V)
1x Shock Absorbing Arm for Hydra Alien Pro(12010.00017.00.00)
1x Shock Absorbing Head for Hydra Alien Pro(HDA-T18-SAH)
1x DJl Ronin 2 Mount Adapter for Hydra Alien Pro(HDA-T18-MA-R2)
1x Power Supply Base Plate for DJI Ronin(TGA-PBP)
2x Power Module for Hydra Alien Pro – V Mount(HDA-T18-PM-V)
1x Set Lightweight Swappable Shock Absorber Kit for Hydra Alien Pro(HDA-T18-LSK)(1 Set with 8 Pcs)
8x 220g Counterweight(TGA-CW-220)
1x Set Tool Kit
1x Security Rope(37104.00035.00.00)
1x 1/4 Ring Screw(32110.00514.00.00)
1x RED DSMC2 Power to PTAP Cable(TCB-RD2-PTAP)
1x 2-Pin Lemo to 2-Pin Lemo Cable,Length 60cm(TCB-2LE-2LE-17)
1x Box.2 (HDA-T18-EBK)
1x Dovetail Plates for Hydra Alien Pro(HDA-T18-DP)
1x Dovetail Accessory Mounting Plate for Hydra Alien Pro(HDA-T18-DAM)
3x Electronic Suction Cup with Dovetail Mount (4.5)(HDA-ESC-DM-45)
2x Electronic Suction Cup with 19mm Rod Mount (4.5)(HDA-ESC-RM-45)
2x Tilta 19mm Aluminum Alloy Rod (60cm)(60cm)(TA-19R-AA-60)
1x Dovetail to 19mm Rod Mount Adapter for Hydra Alien Pro(HDA-T18-DMA )
1x Dovetail Extension Bracket for Hydra Alien Pro(HDA-T18-DEB)
1x Safety Belt-Black(37104.00036.00.00)
