DMW-XLR2E

Name: DMW-XLR2E
Brand: Panasonic
SKU: DMW-XLR2E
Price: 883254 NGN
Availability: InStock

Panasonic

EAN: 5025232966110

XLR Microphone Adapter/4 Channel Microphones, 32-Bit Float Recording - Black

go to the technical sheet

₦ 883,254.00

₦ 821,631.59 VAT excl.

Available 6 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

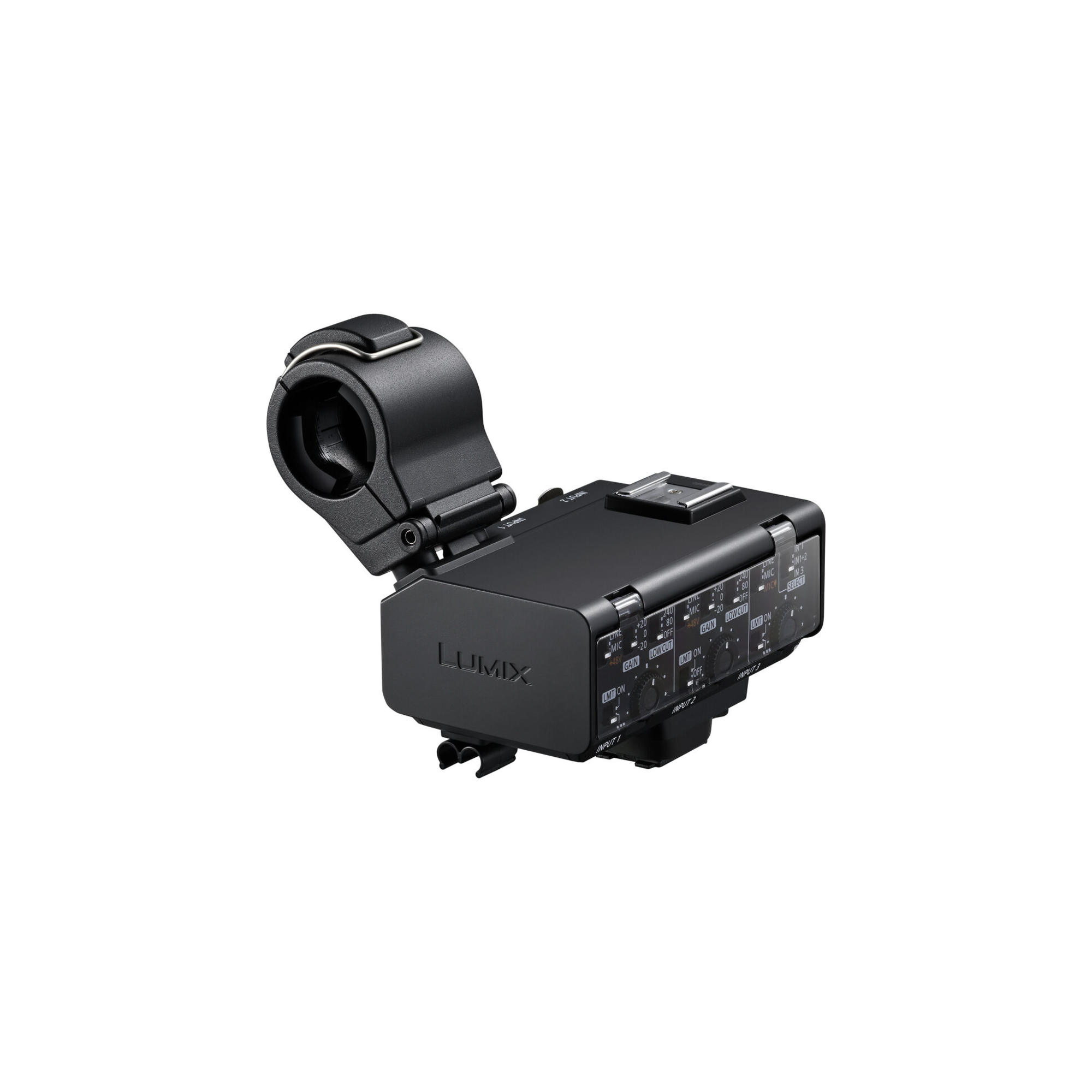

Panasonic XLR Microphone Adapter/4 Channel Microphones, 32-Bit Float Recording - Black

XLR microphone adapter for 4-channel audio recording, high-resolution sound recording and 32-bit float recording.
Compatible with the LUMIX GH7 (DC-GH7).

32-bit recordings
The camera offers 32-bit float recording, improving the quality and efficiency of the entire workflow.
Thanks to its wide dynamic range, the 32-bit float format records more information, from quiet to loud sounds.
As a result, there is no need to make tedious sound level adjustments while recording audio.
Video and music can be managed in a single file, making post-production much more efficient.

Input 1, Input 2
Input Terminal: 3-Pin XLR (Female)
Standard entry level:
- LINE 0 dBu
- MIC, 48V: -40 dBu
- (0 dBu=0.775 Vrms)
Standard recording level: -12 dBFS (at standard input)
Characteristic Frequency: 20Hz to 40kHz, 1/-1 dB (during Fs=96kHz, during LINE)
Phantom Power Source: 48V

Input 3
Input terminal: f3.5-mm stereo mini jack
Standard entry level:
- LINE -10 dBV
- MIC, MIC (plug power): -40 dBV
- (0 dBV=1 Vrms)
Standard recording level: -12 dBFS (at standard input)
Characteristic Frequency: 20Hz to 40kHz, 1/-1 dB (during Fs=96kHz, during LINE)
Plug power: 2.5V

Sampling frequency Bit length Number of recording channels
Linear Recording:
- 48kHz/24-bit/2ch, 96kHz/24-bit/2ch
(Select one of INPUT1, INPUT1 2 or INPUT3)
- 48kHz/24bit/4ch
Float adjustment:
- 48kHz/32-bit/2ch, 96kHz/32-bit/2ch
(Select one of INPUT1, INPUT1 2 or INPUT3)
- 48kHz/32bit/4ch

Operating temperature
From -10°C to 40°C

Operating humidity
10 - 80% RH

Dimensions (W x H x D)
- Approx. 61.2 x 60.9 x 92 mm / 2.41 x 2.40 x 3.63 inches (without microphone stand)
- Approx. 94.6 x 106.2 x 92 mm / 3.73 x 4.19 x 3.63 inches (with microphone stand)
(excluding protruding parts)

Weight
- Approx. 158g (without microphone stand)
- Approx. 192g (with microphone stand)
