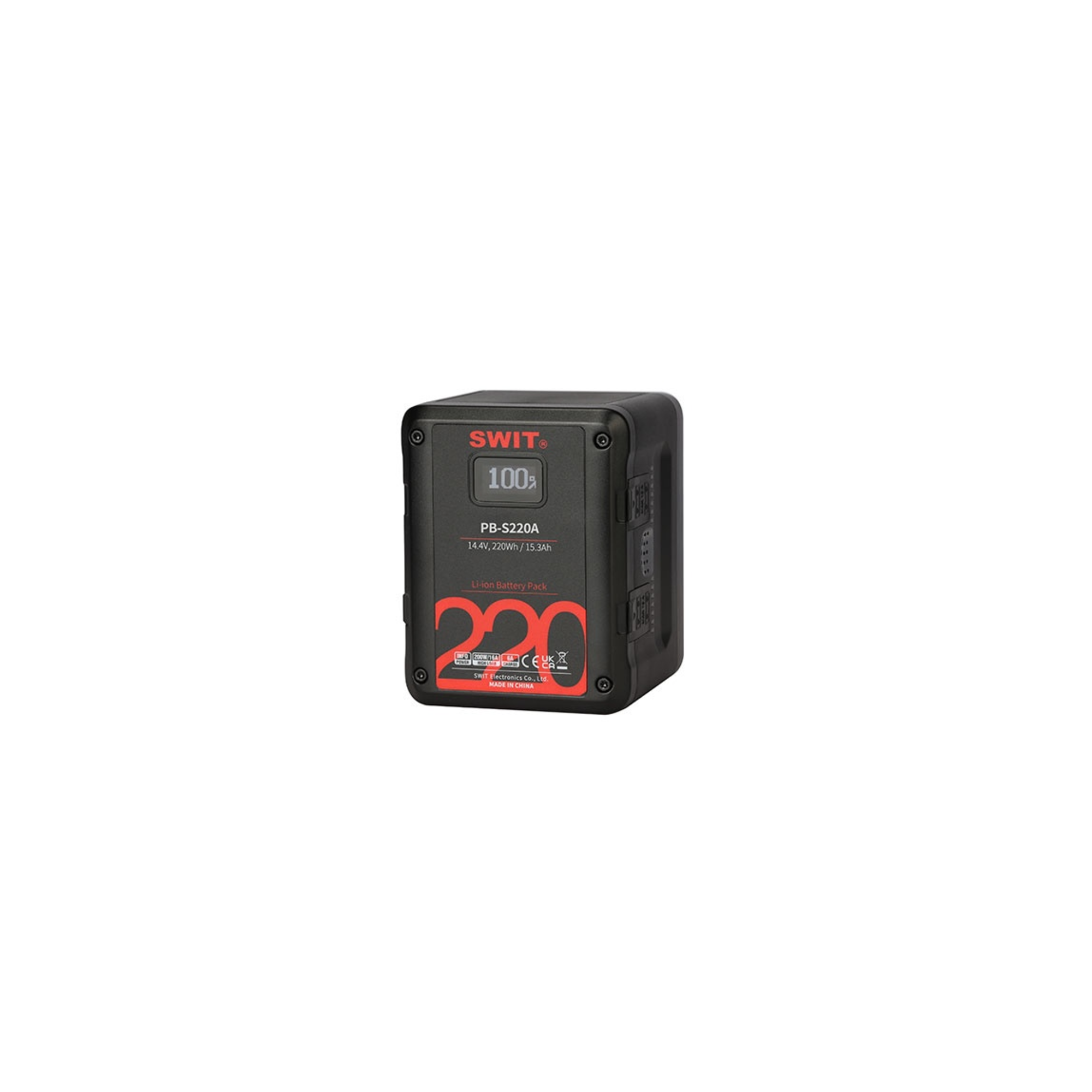

PB-S220A

Swit 220Wh Multi-sockets Square Digital Battery - Gold Mount

- Square shape design for Cine-cameras
- At least 200W, 16A constant load
- 4× D-tap output sockets
- 1× USB 5V/2A power output sockets
- 6A super fast charging
- OLED display accurate remaining run time
- Multiple circuit protections

° Square shape design for Cine-cameras
PB-S series camera batteries are compact designed, shorter than normal Gold mount batteries, and match perfectly with most of the Cine-cameras.

° 220Wh / 15.3Ah Capacity
Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 220Wh / 15.3Ah high capacity.
Can run approx 7 hours for normal ENG cameras and approx 2.5 hours for ARRI ALEXA.

° High Load for Cine Cameras (At least 200W / 16A load)
PB-S220A provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cameras and on-camera devices together.
The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.

° 4× D-tap, 1× USB
PB-S220A provides 4x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.

° 6A Fast Charging (Using SWIT 6A fast charger)
PB-S220A supports 6A fast charging by SWIT PC-P461A or S-3812A fast charger, to save more than 50% charging time.
The 220Wh PB-S220A battery can be charged from 0 to 80% after 2.3 hours, and fully charged within 3.5 hours.
