NL4FXX-W-S

Name: NL4FXX-W-S
Brand: Neutrik
SKU: NL4FXX-W-S
Price: 36345 NGN
Availability: OutOfStock

Neutrik

EAN: 7613187017612

Four-Pole speakON Connector (Green)

go to the technical sheet

₦ 36,345.00

₦ 33,809.36 VAT excl.

Available in 19 days

Not sure if this is the right product for you? Talk to a consultant

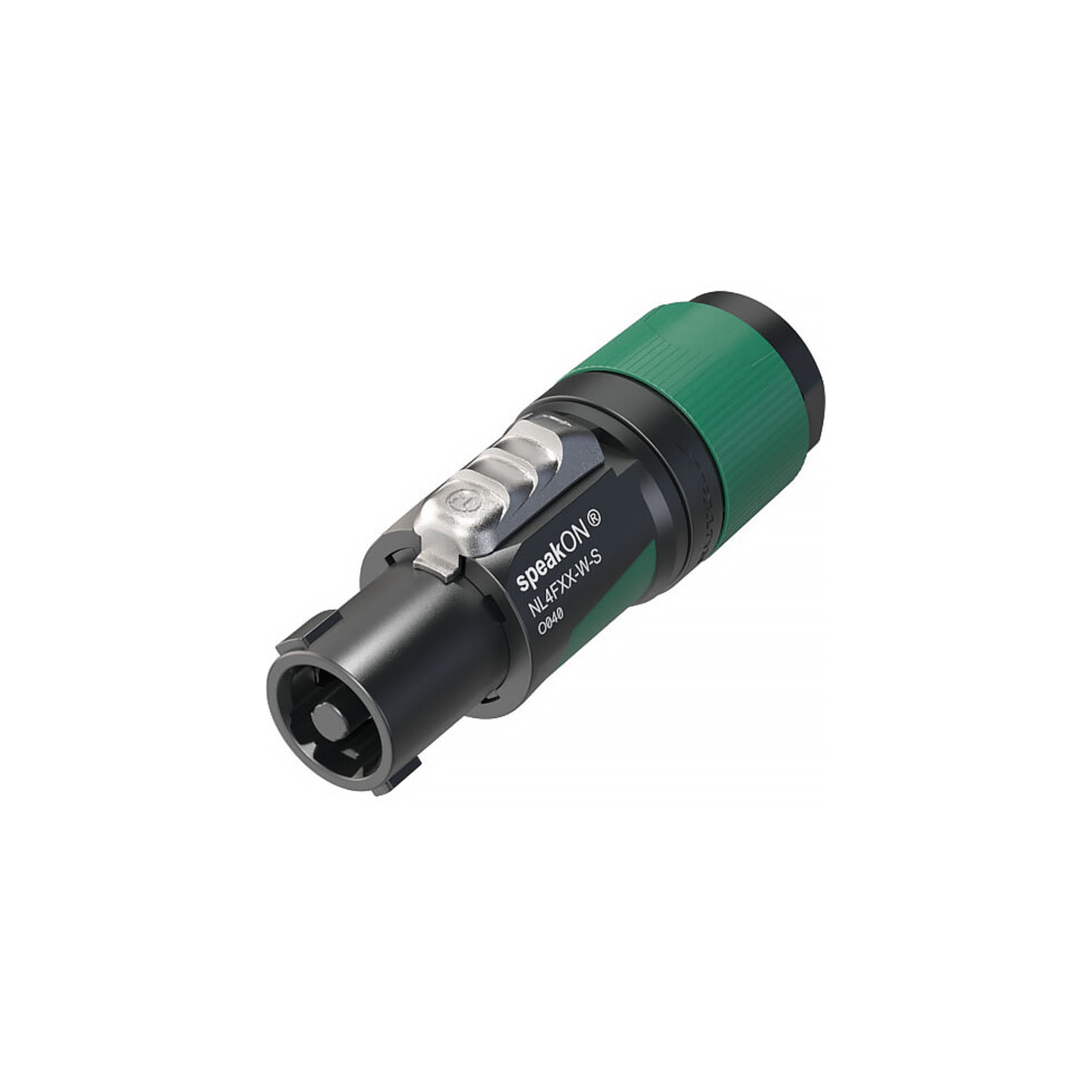

Neutrik NL4FXX-W-S Four-Pole speakON Connector (Green)

- Up to 37 A rms current rating
- Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
- Superior NEUTRIK quality standard, extremely robust and reliable
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Easy and reliable twist lock system
- Ergonomic design with slip-proof two-component molded housing
- Improved kink protection by two-component bushing

Electrical
___________________
Contact resistance: less than or equal to 2 mO
Dielectric strength: 2.8 kVac
Insulation resistance: > 10 GO (initially)
Number of electrical contacts: 4
Rating Europe: IEC 61984: 37 A 250 V AC
Rating USA: UL1977: 35 A 250 V AC
Rating Canada: CSA C22.2 No.182.3: 24 A 250 V AC

Mechanical
___________________
Cable O.D.: 6 - 12 mm
Lifetime: typically 5''000 mating cycles
Wiresize (mm²): 1.5 - 4 mm²
Wiresize (AWG): 17 - 11 AWG
Locking device: Twist lock
Termination: screw type terminals

Material
___________________
Contact plating: Ag
Contacts: Copper Alloy
Insert: Polyamide (PA6.6)
Locking element: Zinc diecast
Shell: Polyamide (PA6) / TPE
Strain relief: Polyketone
Bushing: Polypropylene / TPE

Environmental
___________________
Temperature range: -33 °C to +80 °C
Protection class: IP20
Flammability acc. To UL94: V-0
