NA3FDM
Neutrik
7613187002199

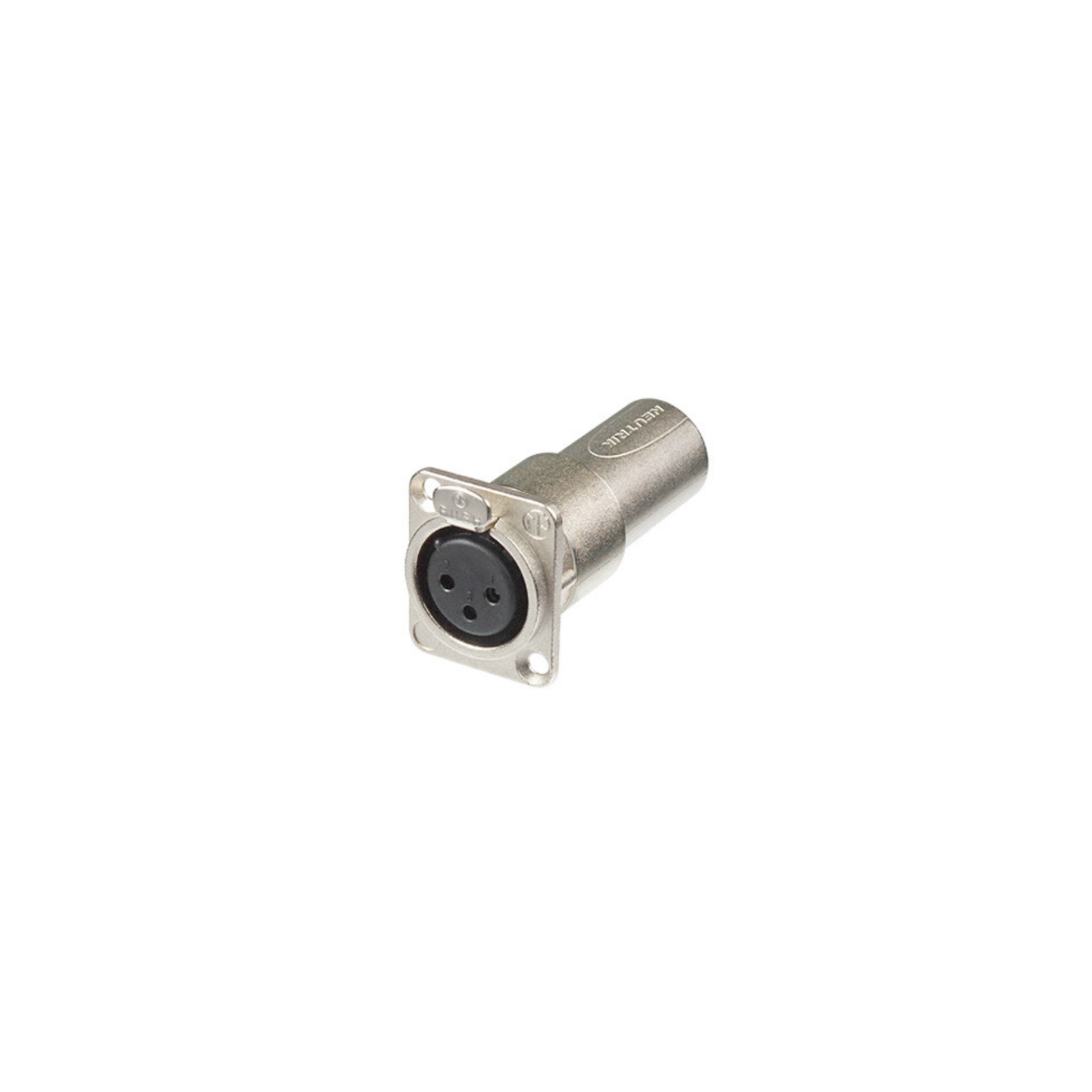

Neutrik NA3FDM XLR female-male feedthrough adapter for panel mount
go to the technical sheet
₦ 48,374.00
₦ 44,998.93 VAT excl.
Neutrik NA3FDM XLR female-male feedthrough adapter for panel mount
Connection Type: Adapter
Electrical
Capacitance between contacts: less or equal 4 pF
Contact resistance: less or equal 5 mO
Dielectric strength: 1,5 kVdc
Insulation resistance: > 2 GO (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V
Mechanical
Insertion force: less or equal = 20 N
Withdrawal force: less or equal = 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 2.5 mm²
Wiresize: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock
Chassis shape: D
Environmental
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Connection Type: Adapter
Electrical
Capacitance between contacts: less or equal 4 pF
Contact resistance: less or equal 5 mO
Dielectric strength: 1,5 kVdc
Insulation resistance: > 2 GO (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V
Mechanical
Insertion force: less or equal = 20 N
Withdrawal force: less or equal = 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 2.5 mm²
Wiresize: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock
Chassis shape: D
Environmental
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Contact plating: 2 µm Ag over 2 µm Ni
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
