8101 PSAX 1000

Name: 8101 PSAX 1000
Brand: Adam Hall
SKU: 8101 PSAX 1000
Price: 200164 NGN
Availability: InStock

Adam Hall

Power and audio cable from Shuko/XLR to VDE/XLR - 10 m

go to the technical sheet

₦ 200,164.00

₦ 186,199.00 VAT excl.

Available 1 unit in 4 Days

Manufacturer: go to website

Not sure if this is the right product for you? Talk to a consultant

Product description
Specifications

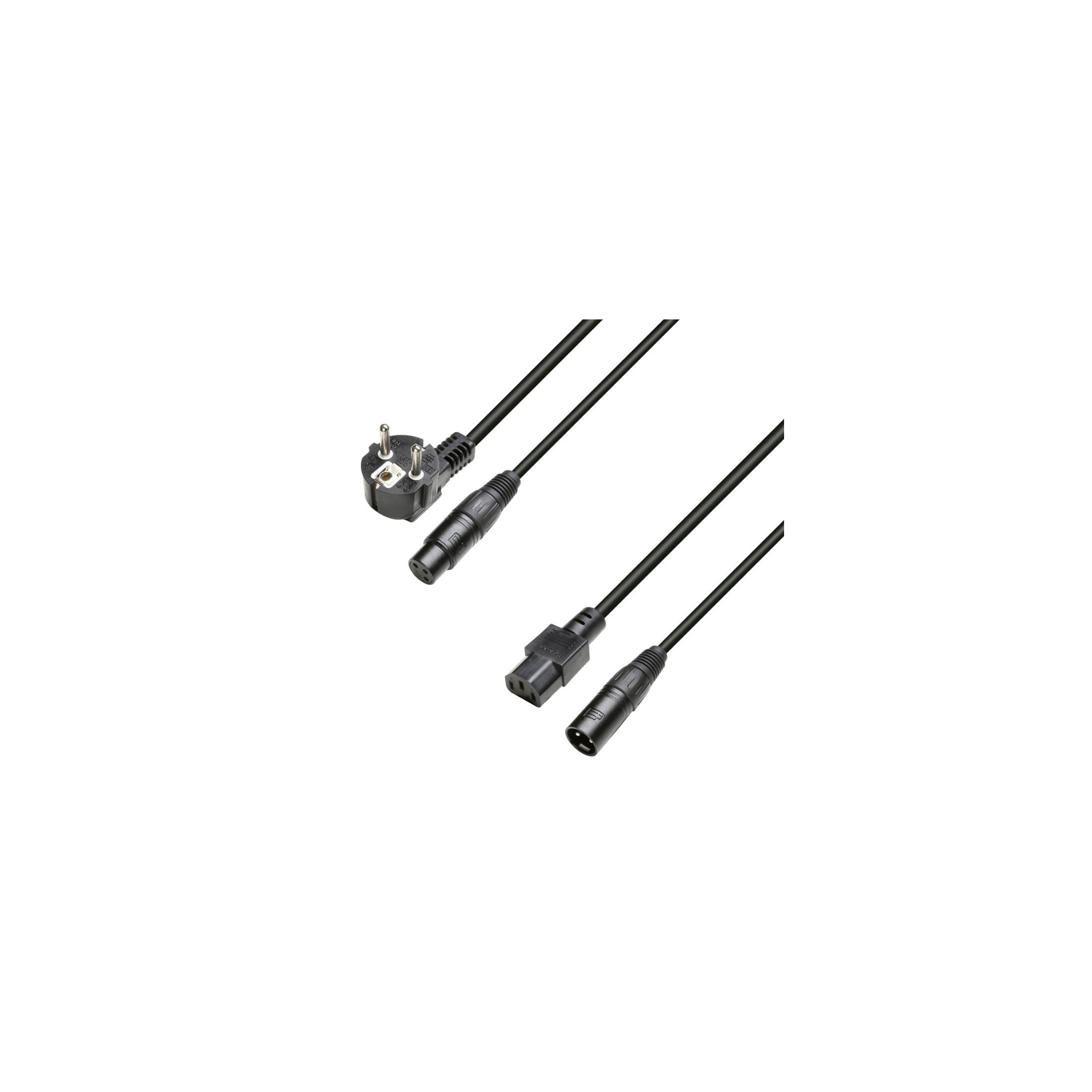

Adam-Hall Power and Audio Cable CEE7 / 7 and XLR Female to C13 and XLR Male 3x1.5 mm² 10 m

Equipped with highly reliable AH audio connectors
Cable section equal to 3x1.5mm² for power
Cable section equal to 2x0,22mm for audio

Cable length: 10 m
Splitter length: 40cm
Black colour
Overall diameter: 16mm
Sheath material: PVC
Connection 1-A: Protection contact type E+F (CEE 7/7)
Link 1-A Gender: Male
Link 1-B: C13
Link 1-B gender: Female
Number of poles connection 2-A: 3
Connection 2-B: XLR
Characteristic impedance: 55 ohm/km
Link 2-B Gender: Male
Number of poles connection 2-B: 3
Internal conductor section 1: 1.5 mm²
Number of internal conductors 1: 3
Internal conductor section 2: 0.22 mm²
Inner Conductor Material 2: Polished Copper
Inner conductor structure 2: 28 x 0.1 mm
Number of internal conductors 2: 2
Shielding: Spiral shield
Screen Material: Copper / Aluminum Film
Ader/Ader: 125 pF/m
Maximum ambient temperature: -20 - 70° °C
Weight: 2.7kg
