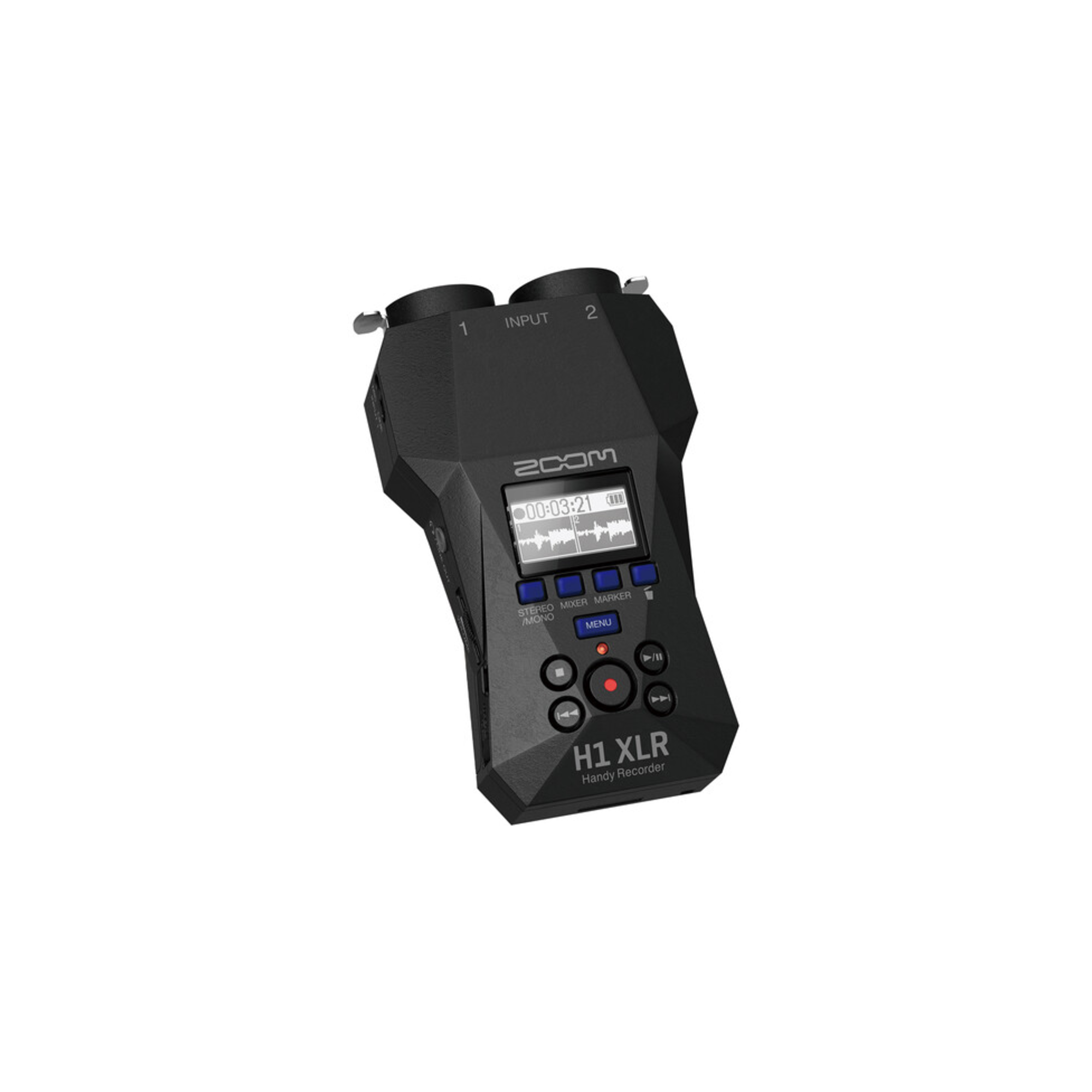

Zoom H1 XLR Portable Audio Recorder for Video, Maximum Sample Rate: 96 kHz / 32-Bit Float

Go Anywhere, Record Anything
The H1 XLR is the recorder for creators who know no limits.
Capture audio for videos, direct mixer feeds, songwriting, and more.

Input Flexibility
Featuring two lockable XLR/TRS combo inputs, the H1 XLR is ready to record microphones, instruments, stereo signals from cards, devices, and consoles, and more.

The 3.5 mm stereo input lets you record camcorder-mounted microphones, lavalier microphones, smartphones, and other sources.

Preamps
The H1 XLR's preamps deliver crystal-clear audio with an EIN (equivalent input noise) of -122 dB and sample rates up to 96 kHz.

Professional Line Level
Capture professional +4 dBu line-level signals to record clipping-free audio from any mixer or line output.

Stereo or Mono
The H1 XLR can record both stereo and mono files, depending on your application.

Perfect on Camera
The H1 XLR is perfect for mounting on your rig and lets you record high-quality audio from shotgun or wireless microphones.

Perfect Audio for Your Mobile Videos
Connect the H1 XLR to your mobile device via the USB-C port and record professional audio directly to your smartphone's video.

Perfect for video podcasts, live streaming, and more.

32-bit Float Audio Interface
Connect to a PC, Mac, iOS, or Android device and use the H1 XLR as an audio interface, simultaneously recording to an SD card.

Inputs
Mic/Line (mono):
Connectors: 2 XLR/TRS combo inputs (XLR: 2 HOT, TRS: TIP HOT)
Input gain: No adjustment required (using dual A/D converter circuits)
Input impedance:
- MIC: 2.7 kO or more
- LINE: 1 kO or more
- Maximum input level:
- MIC: +4 dBu
- LINE: +24 dBu
Phantom power: +48 V | Total per channel 10 mA or less
Equivalent Input Noise:
- MIC: -122 dBu or less (IHF-A) at 150 O input
- LINE: -100 dBu or less (IHF-A) at 600 O input
MIC/LINE IN Jack:
- Connector: Stereo mini jack
- Input Impedance: 2 kO
- Plug-in Power: 2.5 V

Outputs
Phone/Line Out Jack:
Connector: Stereo mini jack
Maximum Output Level: 20 mW + 20 mW (with 32 O load)
Output Impedance: 10 O or less
Built-in Speaker:
Type: 20 mm × 30 mm elliptical dynamic speaker
Maximum Effective Power: 250 mW

Recorder
Recording Format:
- WAV
- 44.1, 48, or 96 kHz / 32-bit float
- Stereo / Mono
- Supports BWF and iXML formats
- Recording Media:
- 4 to 32 GB microSDHC cards
- 64 GB to 1 TB microSDXC cards

Display
OLED: 128 × 64

USB
Connector: USB Type-C (Use a USB cable that supports data transfer)
Audio Interface: USB Audio Class 1.0
- Input and Output Channels: 2 in / 2 out (Stereo)
- Sampling Rates: 44.1, 48 kHz
- Bit Depth: 16-bit, 32-bit float
- File Transfer: USB 2.0 High Speed

Power Supply
2 AA batteries: Alkaline, lithium, or rechargeable NiMH
AC adapter: ZOOM AD-17: DC 5 V/1 A (supports USB bus power)

General
Power consumption: Maximum 2.5 W
Dimensions: 62.1 mm (W) × 107 mm (D) × 39.3 mm (H)
Weight (including batteries): 164 g
