FR-AV2

Name: FR-AV2
Brand: Tascam
SKU: FR-AV2
Price: 663696 NGN
Availability: InStock

Tascam

EAN: 4907034135202

Compact 32-Bit-Float Field Recorder and Timecode Generator

go to the technical sheet

₦ 663,696.00

₦ 617,391.78 VAT excl.

Available 1 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

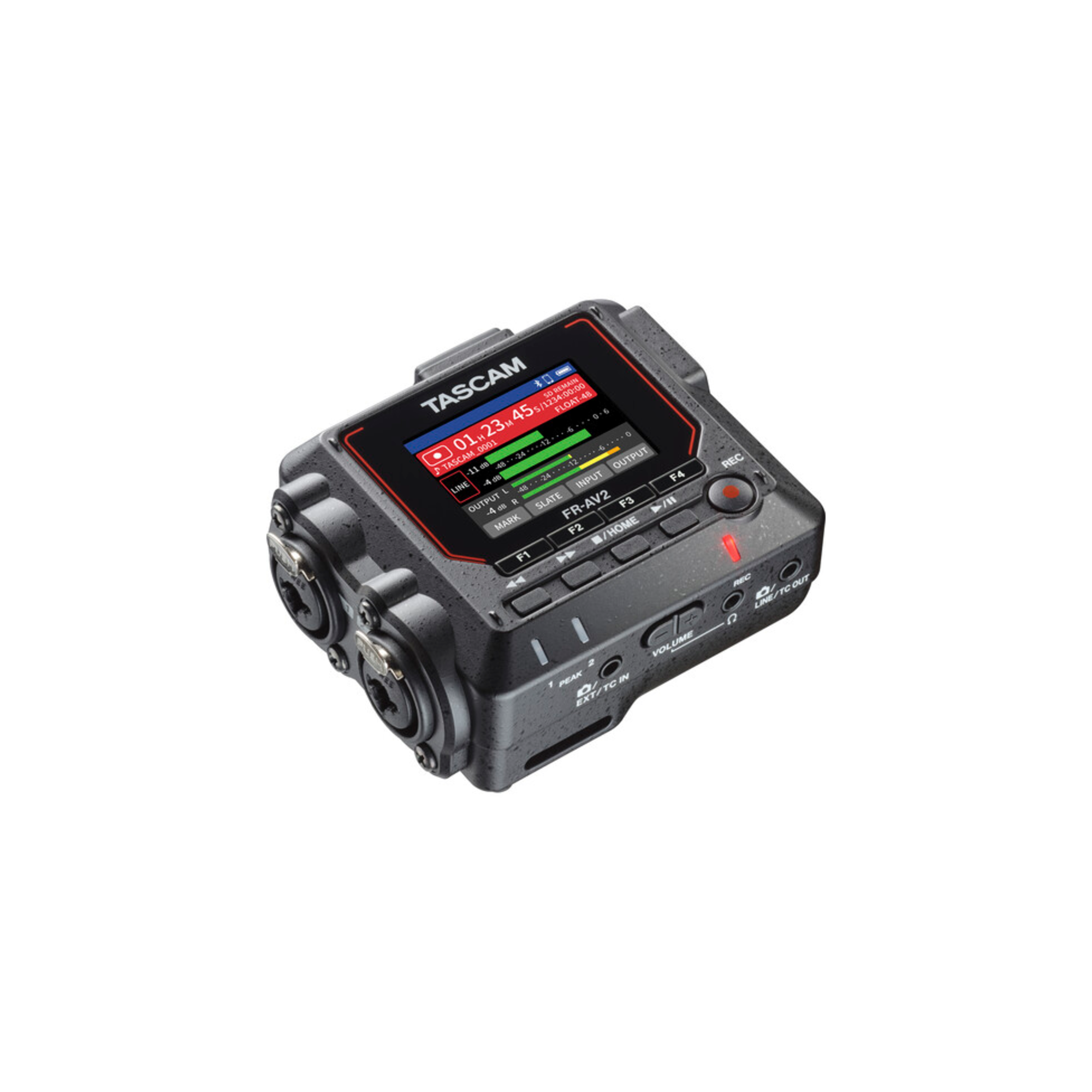

Tascam FR-AV2 Compact 32-Bit-Float Field Recorder and Timecode Generator

The Tascam FR-AV2 is a compact and feature-packed audio recorder for film makers that combines state-of-the-art 32-bit floating point technology with timecode generation and synchronisation.
This not only ensures a significantly enhanced sound experience - it also simplifies the entire process from recording to editing.
Synchronise the recorder with industry-standard video equipment without the need for an external timecode device.
And use the optional AK-BT2 Bluetooth adapter for wireless monitoring.

No-Clip Recordings
With the FR-AV2's advanced 32-bit float recording at up to 192 kHz, you'll never have to scrap a recording because of distorted or weak audio levels.
When recording at lower bit depths, such as 24-bit and 16-bit, loud sound sources can cause digital clipping that cannot be fixed later.
Dual analogue-to-digital converter technology captures recordings with greater dynamic range and clarity - so you can increase the level of dialogue without distracting changes in tone or dynamics.

Premium XLR/TRS Combo Inputs
Connect microphones and professional line-level sources directly to the FR-AV2's dual Ultra HDDA preamps.
With an equivalent input noise of just -127 dBu, you can capture audio with maximum clarity and virtually noise-free.
In addition, the 3.5-mm stereo input allows you to use wireless microphones, lavalier mics and any other audio sources you may have in your arsenal.

Ultimate Timecode Generation
With the FR-AV2, you'll be able to streamline your videography rig and take less gear to shoots.
The recorder sends and receives timecode via its 3.5-mm input/output for DSLR cameras, and also supports jam-sync for any external timecode devices.
Using the optional AK-BT2 Bluetooth adapter, you can also wirelessly sync timecode with supported Atomos UltraSync Blue devices.

Wireless Audio Monitoring
Adding the optional AK-BT2 Bluetooth adapter allows you to monitor audio wirelessly on the fly.
Select one of three quality levels to ensure you get the best possible signal depending on the recording environment, including connection quality and sound quality.
Wired and Bluetooth monitoring work in parallel so that two people can listen at the same time.

iPhone Filmmaker, Meet Your Professional Audio Interface
Whether you're always on the go or creating content spontaneously, the FR-AV2 fits easily into your iPhone video rig using a USB-C cable.
This allows you to use professional-grade XLR inputs for superior sound quality, as well as output timecode and synchronise it with your smartphone.
With timecode input/output and your phone, the FR-AV2 turns your mobile videos into professional productions.

Simple and Comprehensive Field Recorder
The FR-AV2 is one of the most comprehensive audio recorders for videography on the market.
It lets you focus on your video shoot, not your audio gear.
With the ultra-compact recorder mounted to your camera, you get dual professional audio inputs, 32-bit float recording, onboard timecode generation and synchronisation, and wireless audio monitoring capability - all in a single rugged package.

Recording
_____________________________________
Recording media: microSD (64 MB - 2 GB) | microSDHC (4-32 GB) | microSDXC (48-512 GB)
Recording/playback format: WAV (BWF)
Sampling frequency: 48 kHz, 96 kHz, 192 kHz
Quantization bit depth: 24 bit, 32 bit float
Input channels: 2
Maximum number of recordable tracks: 2

Analogue audio inputs and outputs
_____________________________________
Microphone input (balanced): XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Maximum input level: +4 dBu
Minimum input level: -76 dBu
Gain adjustment range: 0-50 dB
Input impedance: greater than or equal to 2 kOmega
Phantom power: 24 V, 48 V
Line input (balanced): 6.3-mm standard TRS jacks (Tip = HOT, Ring = COLD, Sleeve = GND)
Maximum input level: +24 dBu
Nominal input level: +4 dBu (GAIN at minimum)
Input impedance: greater than or equal to 8 kOmega
Line/timecode input (unbalanced): 3.5-mm stereo mini jack
Maximum input level: 1 dBV
Nominal input level: -19 dBV (GAIN at minimum)
Minimum input level: -79 dBV
Input Impedance: greater than or equal to 6 kOmega (plug-in power off) | greater than or equal to 1.6 kOmega (plug-in power on)
Plug-in power: 2.5 V, 5 V

Analogue audio outputs
_____________________________________
Line/timecode output (unbalanced): 3.5-mm stereo mini jack
Maximum output level: +6 dBV
Nominal output level: -10 dBV (-16 dBFS)
Output impedance: 210 Omega
Headphones output: 3.5-mm stereo mini jack
Maximum output power: 50 mW + 50 mW (THD+N <0.1 % at 32 Omega)
Recommended headphones impedance: 16-400 Omega

USB
_____________________________________
Connector: USB Type-C
Transfer format: USB 2.0 HIGH SPEED
Device Class: Mass Storage Class | USB Audio Class 2.0
USB Audio
Sampling frequency: 48 kHz, 96 kHz
Quantization bit depth: 24 bit, 32 bit float
Number of inputs/outputs: 2/2 channels

Timecode input/output
_____________________________________
Timecode input: 3.5-mm stereo mini jack (Tip: Timecode IN, Ring: Not used, Sleeve: GND)
Input impedance: greater than or equal to 10 kOmega
Signal level range: 0.5 to 5 Vpp
Timecode output: 3.5-mm stereo mini jack
LTC selected
Terminal assignment: Tip: Timecode, Ring: Not used, Sleeve: GND
Output impedance: 600 Omega
Output level: 2 Vpp
MIC LEVEL selected
Terminal assignment: Tip: Timecode, Ring: right channel, Sleeve: GND
Output impedance: 110 Omega
Output level: 40 mVpp

Audio performance
_____________________________________
EIN (equivalent input noise, mic preamp): less than or equal to -127 dBu
Frequency response (input jacks to PCM data): 48 kHz: 20 Hz - 20 kHz, +0 dB / -0.5 dB | 96 kHz: 20 Hz - 40 kHz, +0.5 dB / -1 dB | 192 kHz: 20 Hz - 60 kHz, +0.5 dB / -3 dB
Dynamic range (input jacks to PCM data): greater than or equal to 132 dB (20-kHz SPCL LPF, A-weighting)
Total harmonic distortion ratio (THD+N, input jacks to PCM data): less than or equal to 0.02% (1 kHz sine wave, -1 dBFS input, GAIN at minimum, 20-kHz SPCL LPF)

Battery operation time
_____________________________________
Conditions: Stereo recording at 48 kHz, both input jacks used, continuous operation, in hours:minutes (JEITA CP-2905)
Alkaline battery (Evolta)
09:00: Phantom power off, 24-bit resolution
04:30: Phantom power on (48 V, 2 × 3 mA), 32-bit float
NiMH battery (Eneloop)
08:30: Phantom power off, 24-bit resolution
05:30: Phantom power on (48 V, 2 × 3 mA), 32-bit float
Lithium battery (Energizer Ultimate Lithium)
15:00: Phantom power off, 24-bit resolution
10:00: Phantom power on (48 V, 2 × 3 mA), 32-bit float

Power supply and other specifications
_____________________________________
Power sources: 3 AA batteries (alkaline, NiMH, lithium-ion) | USB bus power | TASCAM PS-P520U AC adapter (sold separately)
Power consumption: 3.8 W (maximum)
Operating temperature range: 0-40 °C
Dimensions (W x H x D, overall): 99 mm × 80 mm × 40 mm
Weight:
- 267 g (including batteries)
- 195 g (without batteries)
