MAX-BR2
MAX-BR2

MAX-BR2

PepLink

Rugged, Dual-Cellular Router for the Most Reliable Remote&Mobile Applications
go to the technical sheet
₦ 627.00

₦ 582.81 VAT excl.

Available in 19 days
: Download
Not sure if this is the right product for you? Talk to a consultant

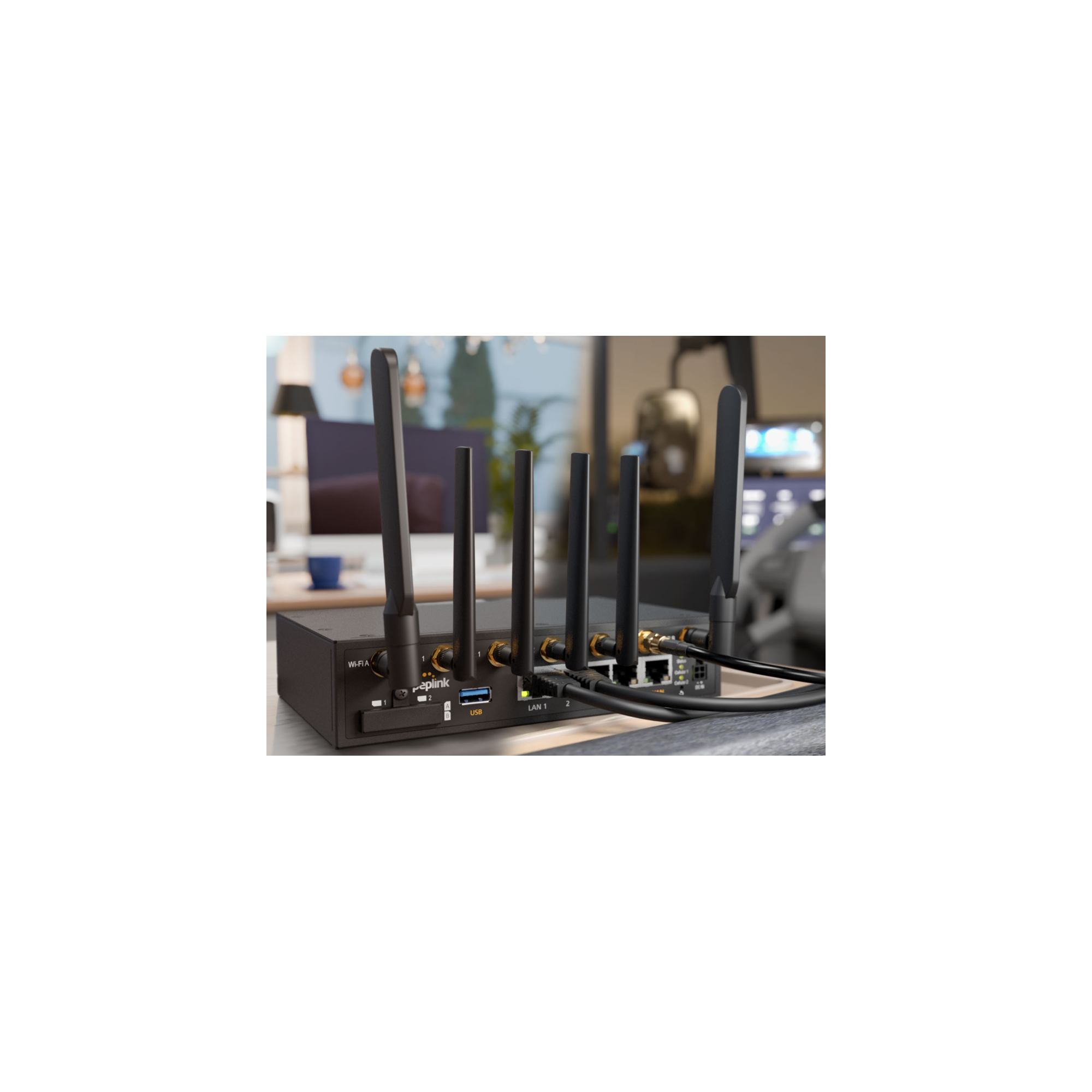

BR2 Rugged, Dual-Cellular Router for the Most Reliable Remote & Mobile Applications

Multiple Backup WANs for Added Reliability
Built-in dual-cellular modems plus external WAN options ensures unbreakable connectivity while on the go and in the most remote locations.

Simple Installation for Mass Deployments
For truly remote and industrial applications, its built-in eSIM and remote SIM configuration allows for zero-truck-roll provisioning, configuration and management.
Remotely manage and configure all devices in your network with InControl and InTouch .
No pre-staging configurations necessary.

Advanced SpeedFusion Technology
SpeedFusion technology seamlessly bonds multiple Internet connections into a single more-reliable Internet feed achieve zero interruption.

Download

Download (0)

WAN Interface:
- 1x 10/100/1000M Ethernet
- 2x Embedded Cellular Modems with Redundant SIM Slots
- 1x USB Interface
LAN Interface: 4x 10/100/1000M Ethernet
Wi-Fi Interface: Simultaneous Dual-Band (2.4GHz / 5GHz) | Wi-Fi 5, 2X2 MIMO | Wi-Fi WAN and/or AP
SpeedFusion features: Hot Failover / Smoothing / Bandwidth Bonding
Number of SpeedFusion VPN Peers: 2 / 5
Router Throughput: 300Mbps
SpeedFusion VPN Throughput:
- No Encryption: 80Mbps
- 256-bit AES: 60Mbps
Recommended Users: 1-60
Cellular Data Rate: CAT-4: 150 Mbps / 50 Mbps
Antenna Connectors:
- 4x SMA Cellular Antenna Connectors
- 2x RP-SMA Wi-Fi Antenna Connectors
- 1x SMA GPS Antenna Connector
Power Input:
- Power Port: 12V - 30V DC
- AC Adapter: AC Input 100V-240V / DC Output 12V
- Terminal Block: 12V - 30V DC
- Power over Ethernet 802.3at
Power Consumption: 8W (nominal) / 13W (max. without USB output)
Operating Temperature: -40° - 149°F / -40° - 65°C
Humidity: 15% - 95% (non-condensing)
Certifications: FCC, CE, RoHS | EN 61000 Electromagnetic Compatibility
Dimension: 6.89 x 5.12 x 1.61 inches / 175mm x 130mm x 41mm
Weight: 2.43 pounds / 1.1 kg

1x BR2
4x LTE Antennas (ACW-237)
2x Dual Band Wi-Fi Antennas (ACW-342)
1x GPS Active Antenna (ACW-232)
1x 12V 2A 4-Pin Power Supply (ACW-632)
