Ninja TX

Name: Ninja TX
Brand: Atomos
SKU: Ninja TX
Price: 1925264.32 NGN
Availability: InStock

Atomos

EAN: 814164023184

Monitor/Recorder 8K30p ProRes RAW (SDI/HDMI, CFexpress/USB-C).

go to the technical sheet

₦ 1,925,264.32

₦ 1,790,943.55 VAT excl.

Volume discounts

Quantity	Unit discount	You Save
2	5%	₦ 192,526.43

Available 2 unit in 4 Days

Not sure if this is the right product for you? Talk to a consultant

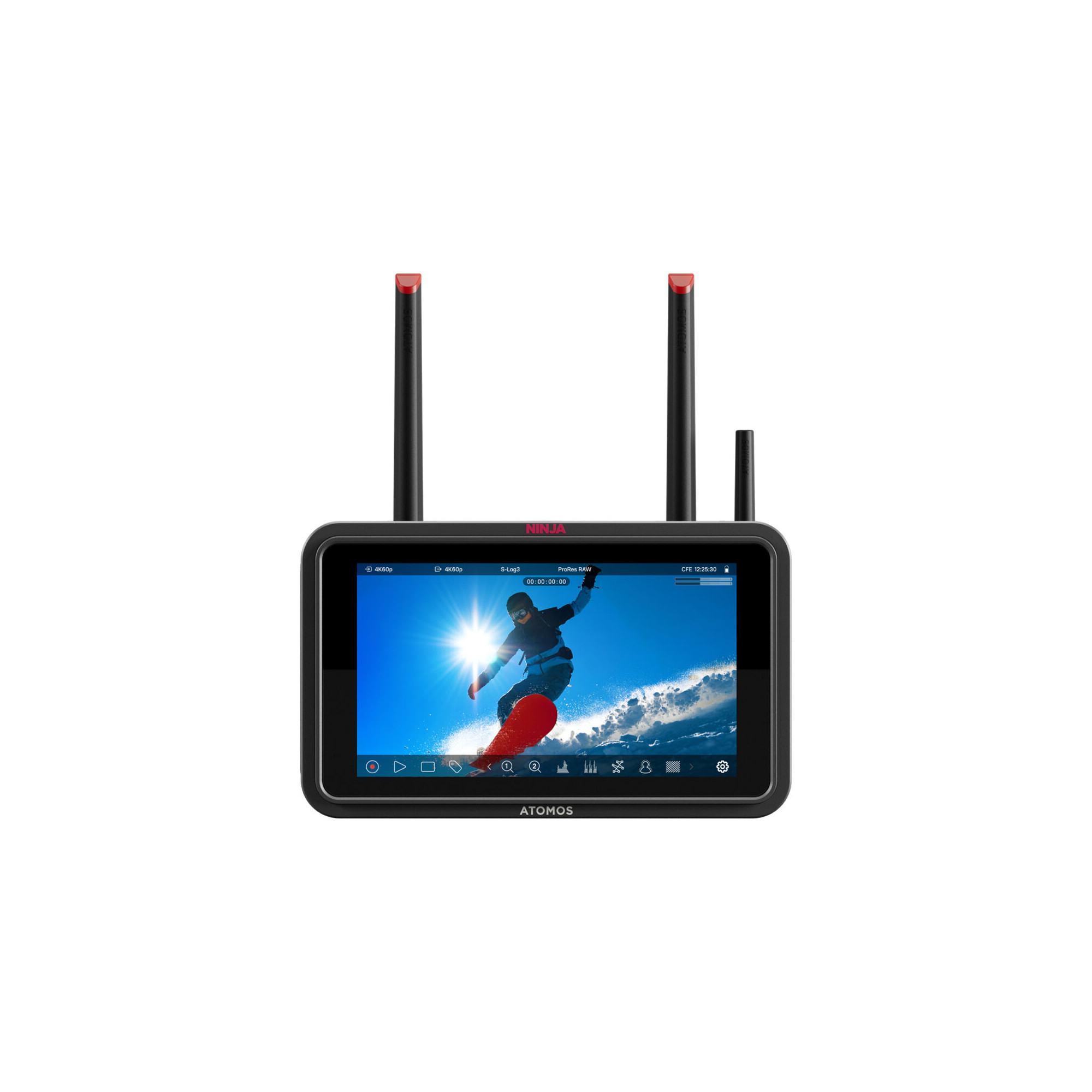

Atomos Ninja TX, SDI & HDMI I/O, up to 8K30p ProRes RAW recording to CFexpress or USB-C storage

USB-C
Ninja TX has two USB-C ports, opening the door to the directly attachment of external storage media, and monitor calibration.
It's a future-ready addition designed to keep pace with evolving content creation needs.

USB-C PD
Ninja TX supports USB-C Power Delivery (PD), which allows the device to be powered directly from a compatible USB-C source, including power banks, wall adapters, or hub systems.

Unique cable locking system
Atomos has developed a unique and rugged locking ecosystem to maintain a secure grip on connected HDMI and USB-C cables.
Ninja TX comes with special brackets to facilitate this, and a USB-C locking cable.
With Atomos locking cables you get the most robust cable system available today.

50% brighter 1500 nit screen
Ninja TX's 1500 nit screen is now 50% brighter, and is packed with pro monitoring features like EL Zone™ false color, focus peaking, waveform, RGB parade, vectorscope and more!
All Ninja models feature the Atomos OS combined with the 5-inch touchscreen interface to give you far more control of your shot, and displaying more detail than your camera's built-in display.

Record to Cfexpress and more!
Atomos invented the concept of a monitor that also records to high capacity, inexpensive removable media.
Ninja and Ninja Ultra use removable SSD Drives, and now with Ninja TX you can choose to record on either Cfexpress or an external hard drive with high-speed USB-C connection.
Now you have even more recording media options!

Integrated wireless features
Ninja TX comes with everything included for Wi-Fi cloud connectivity, including 20GB of free ATOMOSPHERE storage and the ability to share footage with anyone, anywhere.
Just as with Ninja or Ninja Ultra (fitted with Atomos Connect), you can upload directly to camera to cloud platforms like frame.io and Dropbox, or transmit and receive NDI 6 / HX3 streams.

Environmental
Ambient operating temperature: Up to 40 degrees Celsius

Construction
Body: Aluminium with ABS plastic
Cooling: Actively controlled fan and heat sink

Power
Input voltage: 6.2V to 16.8V DC
Operating power: Up to 30W
Multi-function button: Power / lock screen
Continuous power: Via NP-F battery or USB-C PD Power
DC in connector: Via Battery Eliminator (optional)
DTAP: Up to 13W
USB PD IN: 45W capable, power supply required
USB PD OUT: Up to 13W

Display
Size: 5.2-inch
Resolution: 1920 x 1080
Backlight Type: Edge lit
Brightness (cdm2 / Nits): 1500
Aspect ratio: 16:9
Color Gamut: Rec.709
Calibration support: Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable

Color Pipeline
Gamma: Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
Gamut: BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display: .Cube format
3D LUT Down Stream: Loop out
3DLUT 50/50: Yes
Monitoring Modes: Native / HLG / PQ / 3D LUT
HDR Output Conversion: Log / HDR to HLG / PQ

Video Input
HDMI: 1 x HDMI 2.0
Locking port: Bracket provided, HDMI locking cable purchased separately
SDI: 12G
Wi-Fi: Wi-Fi 6E
USB: 2 x USB-C 2.0/3.0
Bit Depth: 8/10-bit video
Video Chroma Subsampling: 4:2:2

Video Output
HDMI: 1 x HDMI (2.0) up to 4K60P
Locking port: Optional
SDI: 12G
Wi-Fi: Wi-Fi 6E
USB: 2 x USB-C 2.0/3.0
Bit Depth: 8/10-bit video
Video Chroma Subsampling: 4:2:2

Metadata
HDMI: RAW - white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut

Network
Wi-Fi: Wi-Fi 6E
USB: 2 x USB-C 3.0

Connectivity
Bluetooth: Yes
LANC: Yes

Video Signal Conversion
HDMI to SDI: Yes
SDI to HDMI: Yes

Audio In/Out
HDMI: 8-channel, 24-bit
SDI: 12-channel, 24-bit
Analogue Audio Line In: 3.5mm headphone jack, 2-channel input
Headphone Out: 3.5mm headphone jack, 2-channel

Timecode
Embedded: HDMI & SDI
Time of day: Yes
Reference / Genlock input: NO
LTC: No
Wireless AirGlu RF Server and Client: Yes
Wireless AirGlu BT Server: Yes

Physical
Mount points: 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom
Dimensions: 151mm x 92mm x 36mm
Weight: 400 g

1x Ninja TX monitor-recorder
1x USB-C locking cable adaptor
1x HDMI locking cable adaptor
1x Wi-Fi antenna
5x antenna tips (black, white, yellow, green, red)
1x AirGlu antenna
1x Antenna caps
1x USB-C locking cable (45cm)
1x Quick Start Guide
