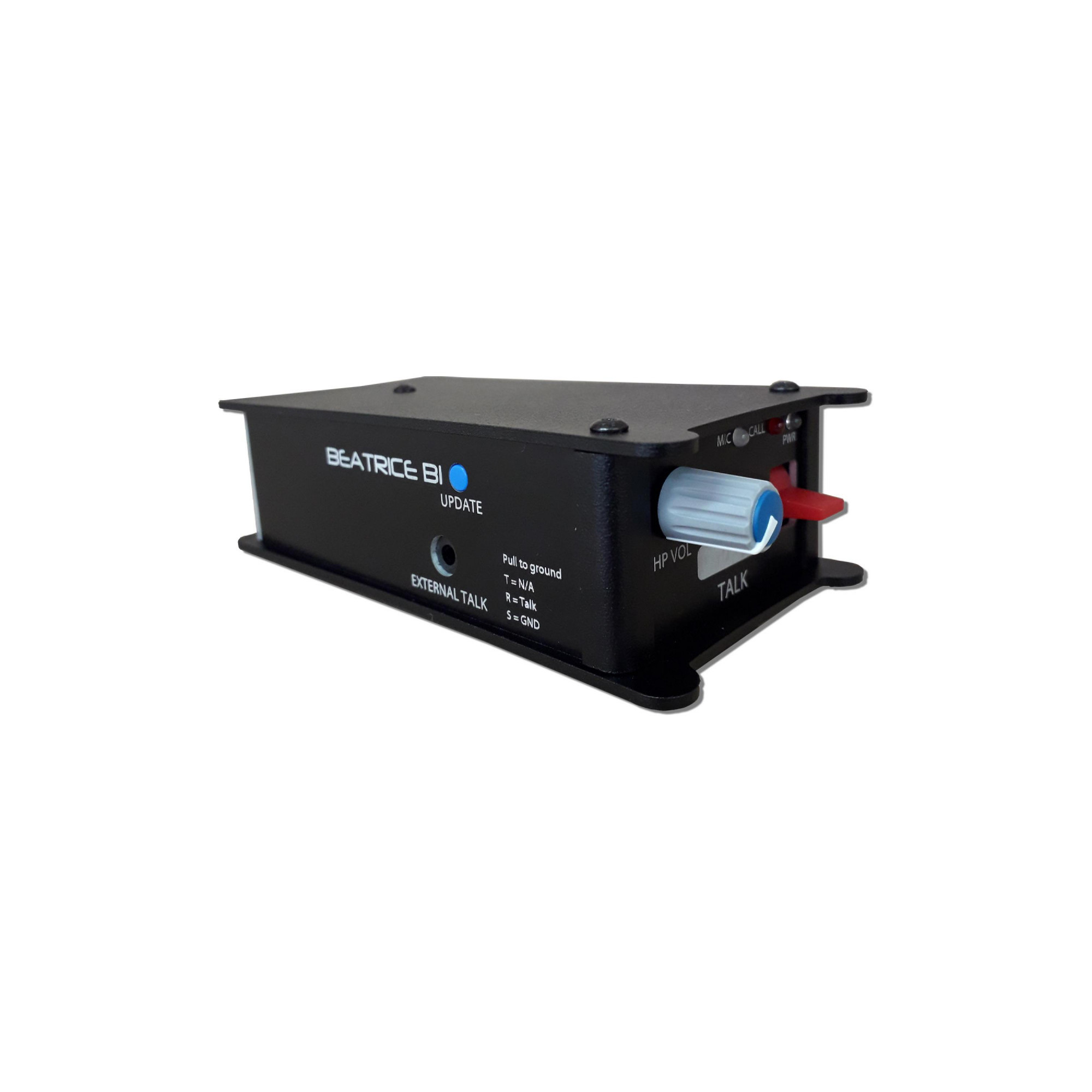

BEATRICE B1

Glensound Single Channel Network Audio Ultra Compact Beltpack Intercom

The Glensound BEATRICE B1 is an ultra compact, robust, portable single channel beltpack intercom designed for broadcast, theatre and professional audio applications.
It is part of our Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard ethernet networks.
As such the BEATRICE B1 is also fully compatible with other manufacturers' equipment using the Dante protocol.
It is also AES67 compliant.
This small beltpack was designed to be very easy to use for the operator and simple to set up for the technician.
It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.

Single Channel
One single user connected to the unit can listen and communicate with 1 other circuit on the network.
Depending upon how the Dante network has been routed the incoming audio circuits and outgoing circuits can be different locations.

Dante Routing & Partyline Mode
Audio routing to/ from other devices is setup using Dante controller which allows for point to multipoint routing on outgoing circuits (but only 1 single incoming circuit for an incoming channel).
An inbuilt partyline facility allows the incoming circuit to be routed to the output circuit making a simple partyline.

External Mic Input
A good quality, clear sounding microphone amplifier, designed for communication purposes, is fitted which also has the benefit of a compressor/ limiter circuit to help keep levels and intelligibility consistent even when the operator gets overly excited.
Twelve Volt Phantom power is also available and can be turned on/ off as required.

Volume & Panning
The front panel features an easy to use volume control.
When in configuration mode, this control can also be used to pan the incoming circuit to one ear or the other.

PoE Powered
The Beatrice B1 is powered via the Ethernet cable by standard PoE (Power over Ethernet), which can be supplied by an external PoE switch or a midspan power injector.

Headphone Output
One of our unique headphone amplifiers is fitted to the Beatrice B1.
This allows either low or high impedance headphones to be used, and automatically adjusts the output level to match the impedance of headphones in use.
The headphone amplifier is stereo and sources can be panned to left or right ears as desired.
The unique headphone amplifier can also drive mono earpieces from its stereo output without any performance issues.

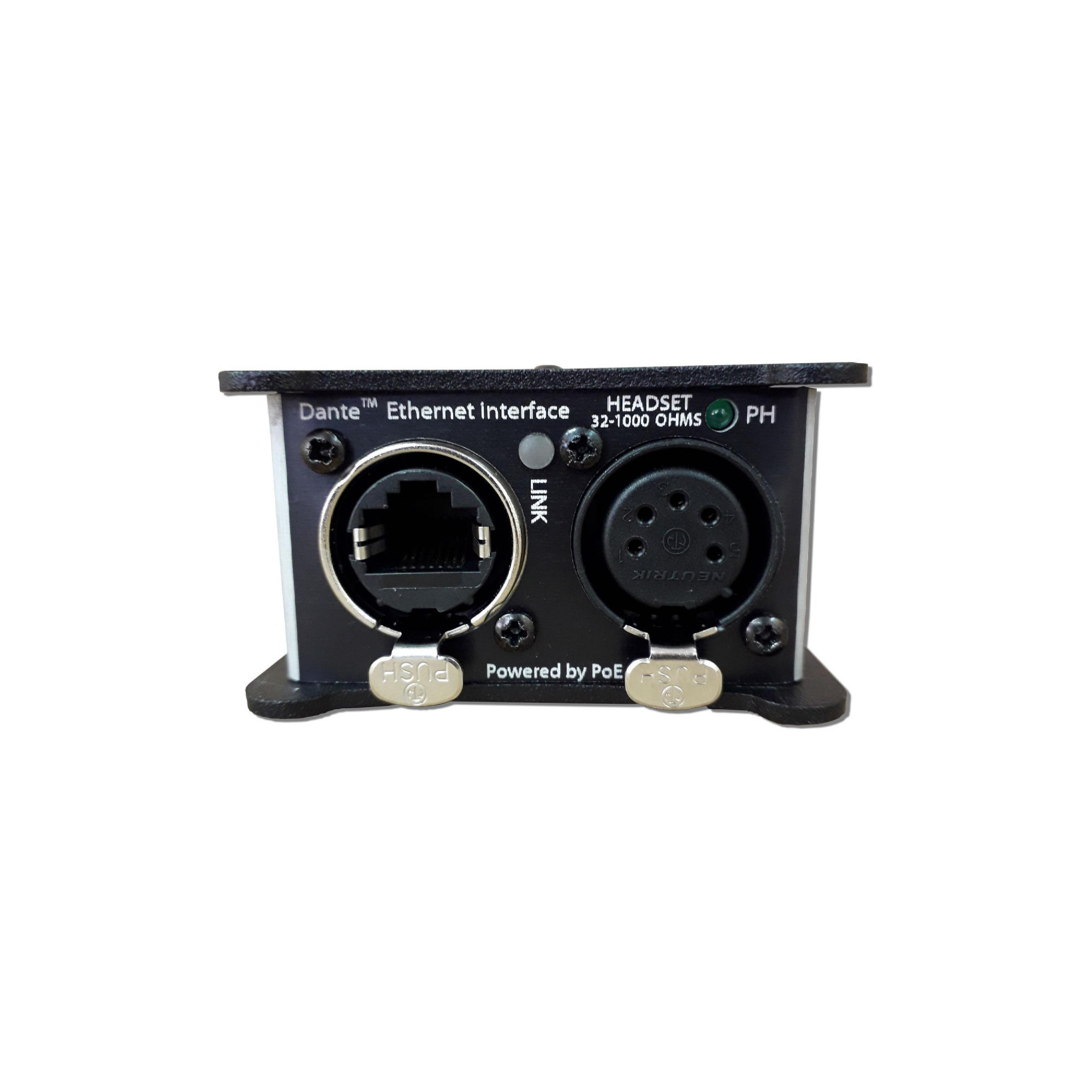

Multipin XLR Headset Connector
As standard the Beatrice B1 is fitted with a 5 pin balanced XLR socket for the microphone input and headphone output.
It can also be supplied with a 4 XLR plug.
