S-1223FS
SwitEAN:6948193501949
₦ 1,540,043.93
VAT Included
VAT Included
Promotion valid until
Adcom - Swit
New
Available in 7 days
21.5" Studio Monitor with full professional functions, 3G SDI/HDMI, 1920*1080,including desktop stand, TSL UMD

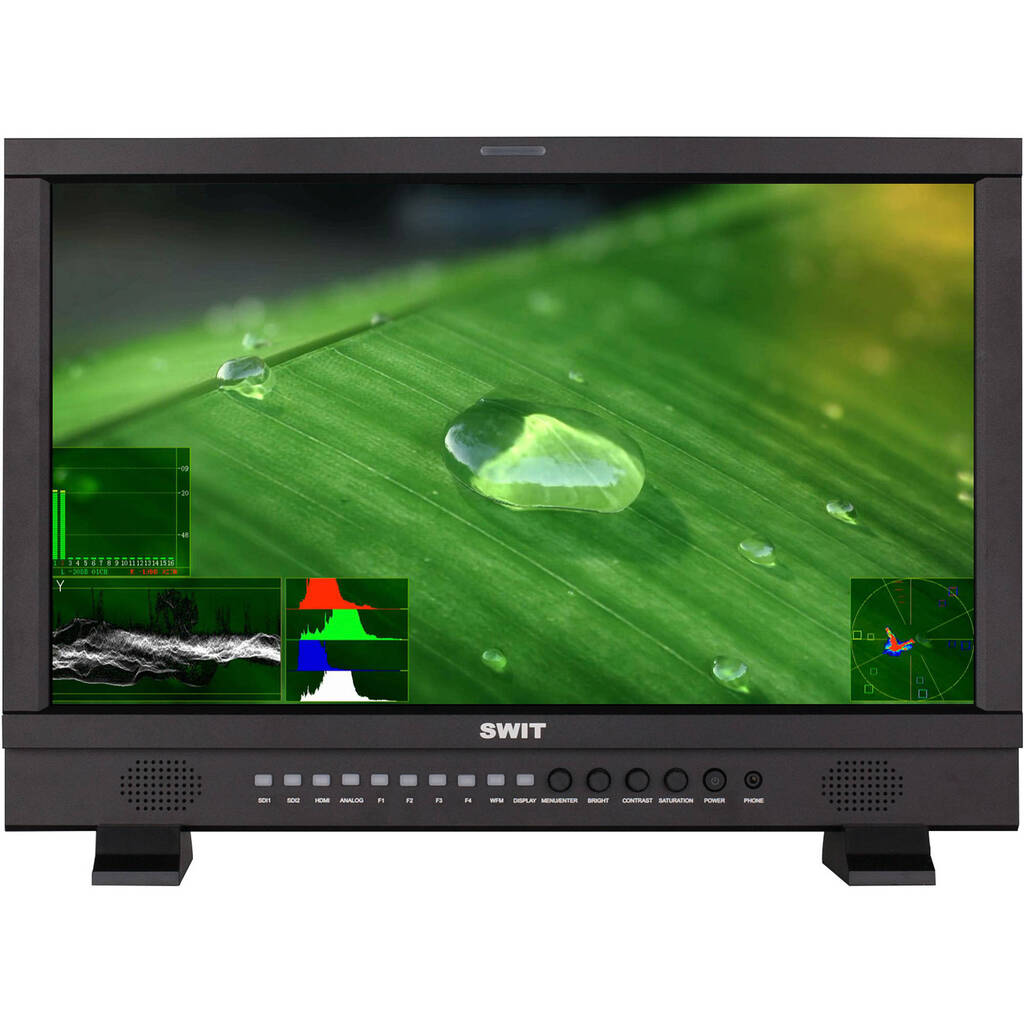

The 21.5" Full HD Waveform Studio LCD Monitor from SWIT adopts an IPS (In-Plane Switching) LCD panel with full HD resolution. It also features an LED backlight, 1000:1 contrast for accurate color reproduction, and a viewing angle of 178°. The supported video analysis assistant patterns include: Waveform (Y/Pb/Pr/R/G/B), Vectorscope and Histogram (R/G/B/Y). For convenience, the patterns can be switched on/off individually.
The monitor can display SDI 16-channel and HDMI 8-channel embedded audio meters with marks and audio abnormal alert info. Users can also select any 2 channels audio to output to the internal speakers or via the 3.5 mm audio output jack. The audio meter pattern position can be selected from Up/Down/Left/Right, and you can select to display 2 channels, 8 channels or 16 channels. It supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, up to 8 letters can be displayed.

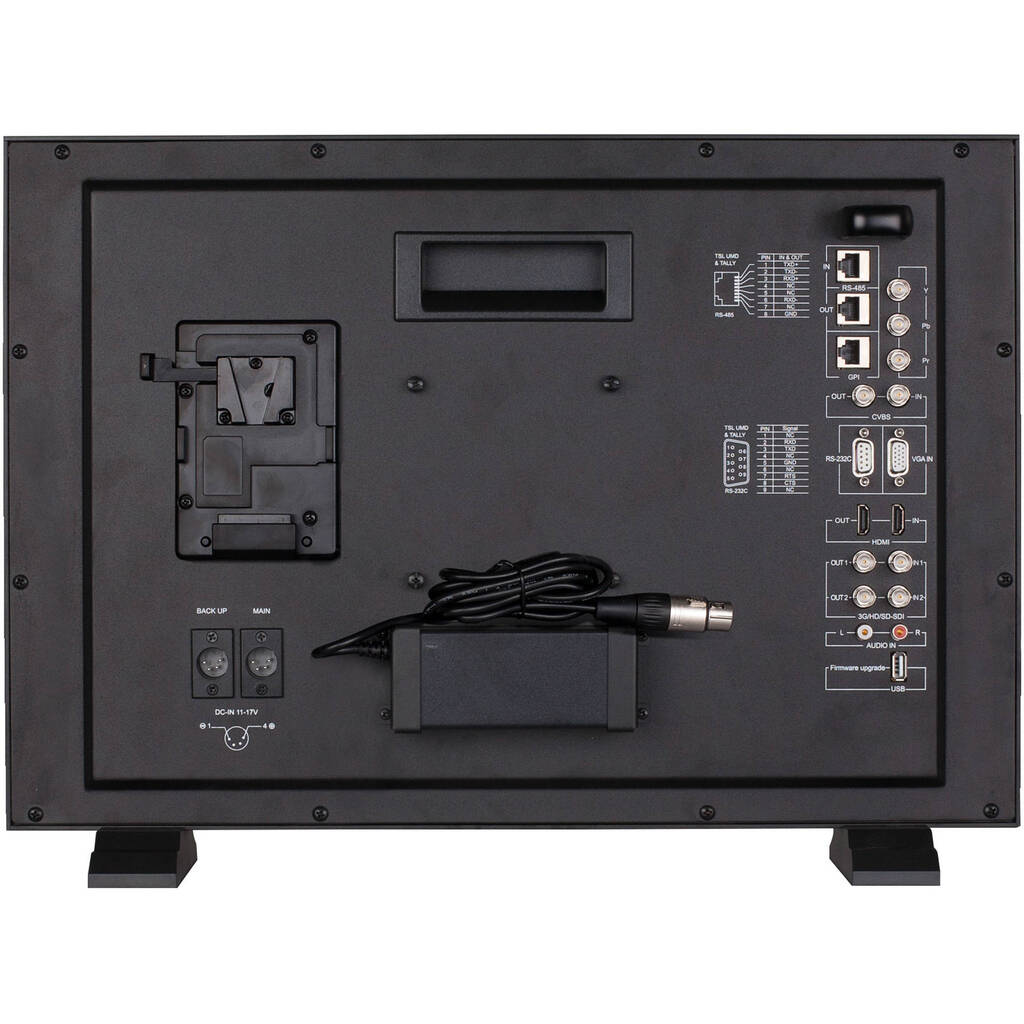

The monitor provides a standard USB port for firmware upgrade. You can download the latest firmware file to a USB stick, and directly insert it into the monitor to upgrade, no computer needed. For power, it provides a 4-pin XLR jack for 11-17 VDC, and a V-Mount battery plate enables outdoor using. There are three colors for the Tally light: Red, Green and Yellow.
21.5" LCD panel, 1920 x 1080 resolution
2K/3G/HD/SD-SDI (x2), HDMI monitoring
Y/Pb/Pr, VGA, CVBS monitoring
16-channel embedded audio meters with alert
Select any 2 audio channels to output
Waveform Y/Cb/Cr/R/G/B and single line
Vectorscope, Histogram R/G/B/Y
Peaking focus assist (red/blue switch)
AFD, timecode, H/V delay
TSL UMD and text TALLY display
Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
False color, R/G/B/Mono, zebra stripes, internal color bar
USB firmware upgrade
In the Box
SWIT 21.5" Full HD Waveform Studio LCD Monitor (V-Mo
The 21.5" Full HD Waveform Studio LCD Monitor from SWIT adopts an IPS (In-Plane Switching) LCD panel with full HD resolution. It also features an LED backlight, 1000:1 contrast for accurate color reproduction, and a viewing angle of 178°. The supported video analysis assistant patterns include: Waveform (Y/Pb/Pr/R/G/B), Vectorscope and Histogram (R/G/B/Y). For convenience, the patterns can be switched on/off individually.
The monitor can display SDI 16-channel and HDMI 8-channel embedded audio meters with marks and audio abnormal alert info. Users can also select any 2 channels audio to output to the internal speakers or via the 3.5 mm audio output jack. The audio meter pattern position can be selected from Up/Down/Left/Right, and you can select to display 2 channels, 8 channels or 16 channels. It supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, up to 8 letters can be displayed.
The monitor provides a standard USB port for firmware upgrade. You can download the latest firmware file to a USB stick, and directly insert it into the monitor to upgrade, no computer needed. For power, it provides a 4-pin XLR jack for 11-17 VDC, and a V-Mount battery plate enables outdoor using. There are three colors for the Tally light: Red, Green and Yellow.
21.5" LCD panel, 1920 x 1080 resolution
2K/3G/HD/SD-SDI (x2), HDMI monitoring
Y/Pb/Pr, VGA, CVBS monitoring
16-channel embedded audio meters with alert
Select any 2 audio channels to output
Waveform Y/Cb/Cr/R/G/B and single line
Vectorscope, Histogram R/G/B/Y
Peaking focus assist (red/blue switch)
AFD, timecode, H/V delay
TSL UMD and text TALLY display
Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
False color, R/G/B/Mono, zebra stripes, internal color bar
USB firmware upgrade
In the Box
SWIT 21.5" Full HD Waveform Studio LCD Monitor (V-Mo
