16-0712-R2 - SmallHDEAN  811786033256

Monitors > Monitors up to 35"
EAN:811786033256
₦ 2,440,840.18
VAT Included
Adcom - SmallHD
New
Available in 10 days

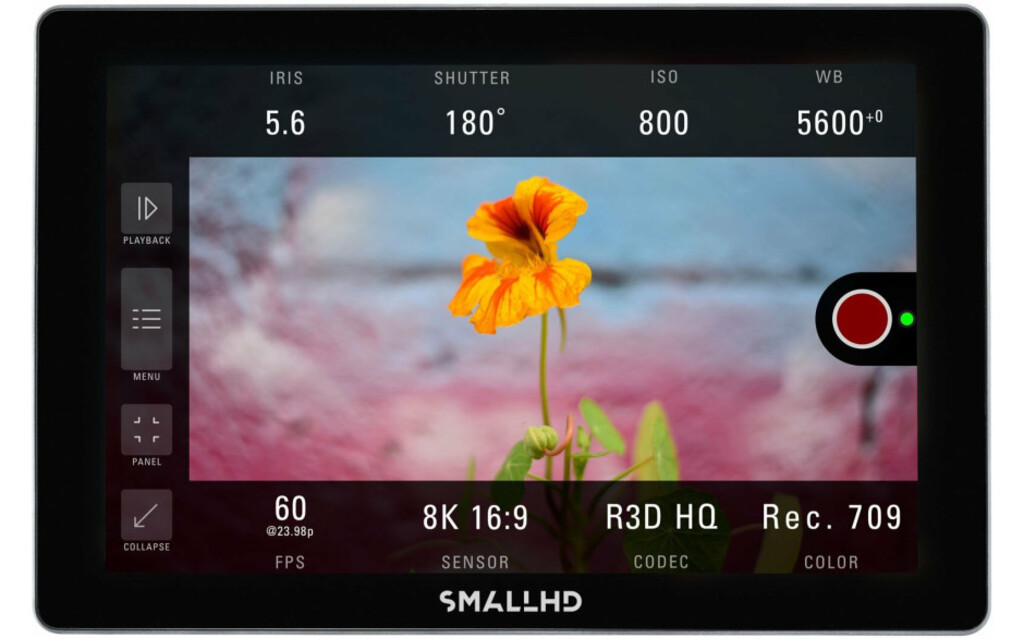

7-inch touchscreen monitor with included Camera Control for access to internal camera settings on RED® KOMODO® or DSMC3™

Featuring a user-customizable UI powered by PageOS 4 software

7" 1920 x 1200 Touchscreen Display
RED RCP2 Camera Control Upgrade
Micro-USB to 5-Pin Adapter & Cable
Microfiber Cleaning Cloth
L-Series Battery Plate
1000 cd/m², 10-Bit IPS LCD Panel

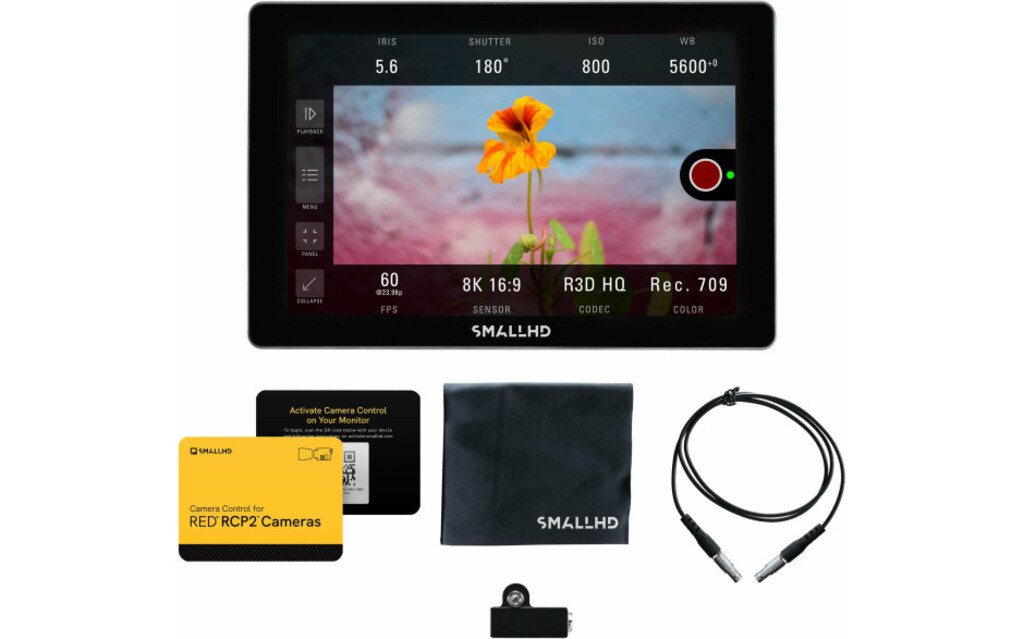

Use the lightweight Indie 7 RED RCP2 Monitor Kit from SmallHD to provide professional monitoring for your KOMODO or RED DSMC3 camera with a sharp 7" display suitable for indoor or outdoor use. The kit includes the Indie 7 monitor, an L-series battery plate, a micro-USB to 5-pin control cable, a cable adapter, a microfiber cleaning cloth, and the RED KOMODO/DSMC3 RCP2 camera control software upgrade.

The Cine 7 monitor supports up to UHD 4K30 HDMI input/output as well as up to 1080p60 via the SDI input/output. The RED control software loads onto the monitor and allows you to control RED camera functions via the RCP2 protocol such as run/stop, color and exposure controls, status, color temperature, video format, playback, shutter, menu control, and more, all via the Cine 7 touchscreen. The control cable and micro-USB-to-LEMO adapter allow the monitor to connect to the camera.
SmallHD INDIE 7 Touchscreen On-Camera Monitor

The lightweight INDIE 7 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.

The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4
Display
Panel Type IPS-Type LCD
Display Size 7.02" / 17.8 cm
Screen Area 5.95 x 3.72" / 15.11 x 9.45 cm
Resolution 1920 x 1200
Aspect Ratio 16:9
Viewing Angle Horizontal: 160°
Touchscreen Yes
Maximum Brightness 1000 cd/m2
Contrast Ratio 1000:1
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
HDR Compatibility None
Pixels Per Inch (ppi) 323 ppi
Color Gamut 100% Rec. 709
Real-Time LUT Monitoring SDR, HDR
Image Controls Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra
I/O
Video 1 x HDMI Type A Input
1 x HDMI Type A Output
1 x BNC (3G-SDI/HD-SDI) Input
1 x BNC (3G-SDI/HD-SDI) Output
Embedded Audio HDMI
SDI
Audio 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x Barrel (10 VDC) Input
Other I/O 1 x USB 2.0 (Micro-USB) Input
Wi-Fi None
Format Support
Video Format HDMI (10-Bit 4:4:4 RGB, YCC)
UHD 4K: 30/29.97/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
480i: 240/239.76/120/119.88/100/60/59.94
576i: 200/100/50
SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50/25
480p: 60
576i: 50
480i: 59.94
Video Signal Conversion HDMI to SDI

SDI to HDMI
Power
DC Input Power 10 to 34 VDC
Battery Type 1 x L-Series (Interchangeable Mount)
Power Consumption 17.3 W
Mounting
Mounting 4 x 1/4"-20 Female
Environmental
Certifications CE, FCC, IC, RoHS, as per Manufacturer
Operating Temperature 30 to 100°F / -1 to 37°C
Storage Temperature 0 to 120°F / -17 to 48°C
General
Material of Construction Aluminum
Dimensions 7.09 x 4.67 x 1.32" / 18.01 x 11.86 x 3.35 cm
Weight 26 oz / 737 g
Warranty Length Limited 1-Year Warranty
Packaging Info
Package Weight 1.955 lb
Box Dimensions (LxWxH) 9.4 x 7 x 2.1"
