Sony

5013493397323

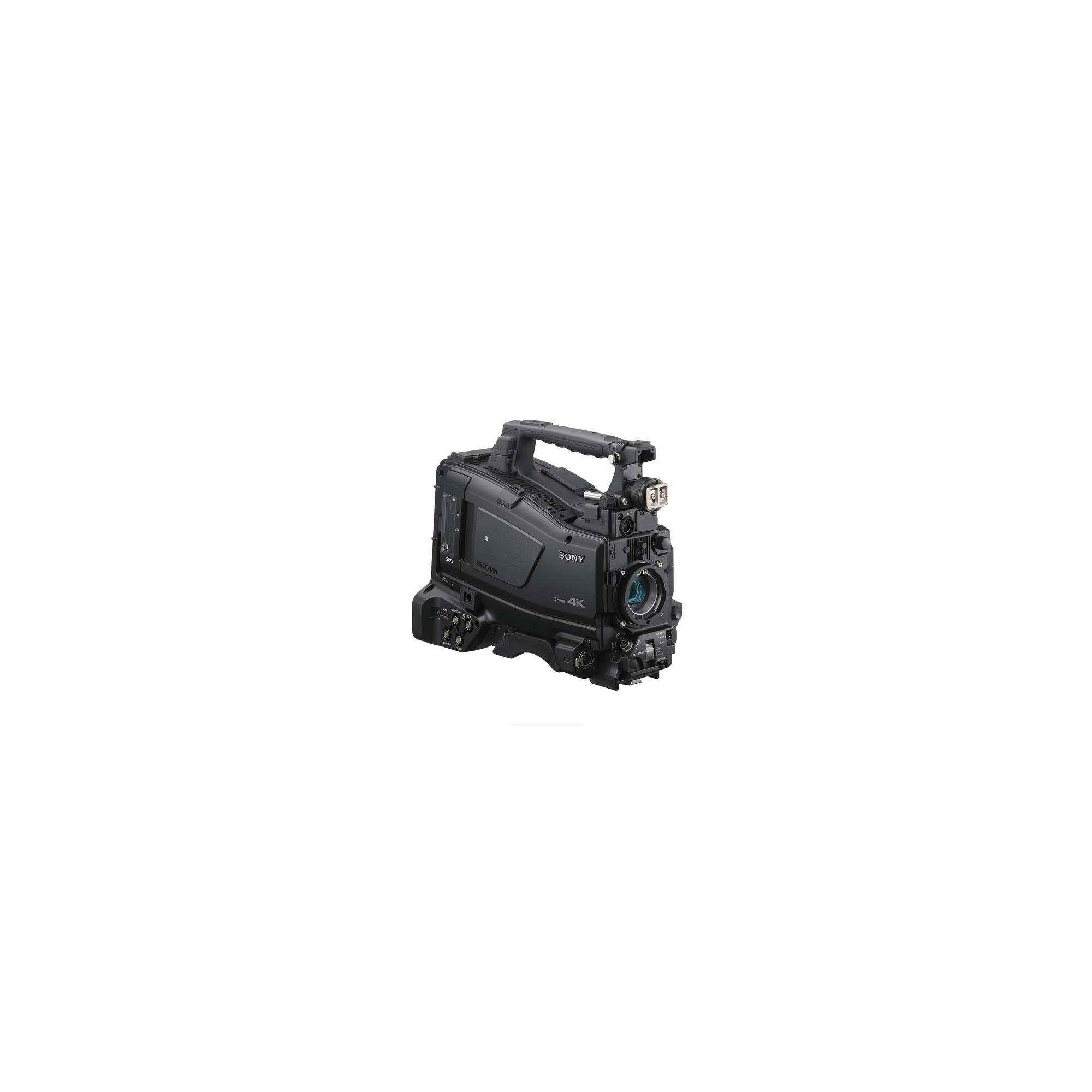

4K Shoulder-Mount Broadcast Camcorder, 2/3"-Type 3-Chip CMOS - Body Only
go to the technical sheet
₦ 69,890,048.93

₦ 65,013,999.00 VAT excl.

Volume discounts

Quantity Unit discount You Save
2 5% ₦ 6,989,004.89
Available in 49 days
Datasheet: Download
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant
Sony PXW-Z750 4K Shoulder-Mount Broadcast Camcorder, 2/3"-Type 3-Chip CMOS - Body Only

- 3-Chip 2/3" 4K CMOS Sensor
- Sony 2/3 Bayonet B4 Lens Mount
- UHD 4K/Full HD up to 59.94p
- Up to 120 fps Variable Frame Rate
- Simultaneous Recording to Both SxS Slots
- 3G-SDI Input and Output
- Genlock and Timecode
- Built-In Network Protocols

Capture professional-quality video with the PXW-Z750 4K Shoulder-Mount Broadcast Camcorder from Sony, which features a 3-chip 2/3" CMOS sensor that records up to UHD 4K, 3840 x 2160p resolution.
The PXW-Z750 features a global shutter to prevent artifacts such as "jello" motion and flash banding, and it provides a compatible feature set for broadcast, news, documentary, and sports programming.
Like its predecessor the PXW-Z450, the PXW-Z750 camcorder supports the Sony XAVC codec up to UHD 4K at 59.94p recording, up to 120 fps 1080p variable-motion recording, and it records using XAVC and MPEG H.264 formats.
It's lighter than the PDW-700, so shoulder-mounted location shooting is made even easier.
The high-quality XAVC-I codec allows you to record HDR quality video with 10-bit 4:2:2 color sampling, providing superior color depth and image quality.

The PXW-Z750 provides a variety of AV and network interfaces including 3G-SDI and HDMI video outputs, an RJ45 Ethernet port, and USB 3.0 control ports.
It features a Sony 2/3 bayonet B4 lens mount to accommodate professional ENG broadcast zoom lenses.
Two SxS slots for high-speed recording are built-in for fast media transfer, simultaneous recording, and quick post-production turnaround.
The camcorder's built-in wireless receiver supports XDCAM air (with XDCAM air subscription and CBK-DL1 USB Extension adapter), which allows you to transfer media on the fly from your shoot directly to the studio.
Other features supported include genlock and timecode inputs, built-in speaker, XLR input and output, remote and light ports, an EVF port, and an HDMI output.

Image Sensor
The PXW-Z750 incorporates a 3-chip 2/3" 4K CMOS sensor optical block with a wide color gamut that provides exquisite picture quality with true-to-life color reproduction, high sensitivity, and low noise level for a wide range of shooting scenarios.

Versatile B4 Lens Options
The 3-chip 2/3-type size sensor block of the Z750 matches the rugged B4 lens mount system, allowing you to use a wide variety of commercially available B4 4K/HD lenses.
This flexibility supports a variety of shooting applications while reducing costs by leveraging your existing lens investments.

Slow Motion
Ideal for sports and nature programs, the PXW-Z750 can acquire footage in 120 fps in Full HD for beautifully smooth, finely detailed slow-motion playback.

Embedded RJ45 Connector
This Ethernet connector provides a robust and fast connection to the network and can be utilized for file transfer, live streaming, and camera control from a web browser.

NFC (Near Field Communication) for Easy Wireless LAN Connection
An NFC function supports easy connection for launching the CBM (Content Browser Mobile) application on a smartphone or tablet.
This means you can skip cumbersome setup procedures.

High Quality at Lower Bit Rates
As well as the established XAVC-I QFHD Class 300 4K and standard MPEG HD422 codecs, the PXW-Z750 also supports the latest generation XAVC-L422 QFHD 200 codec.
Compressing Ultra HD 4K images with a LongGOP frame structure, this achieves significant bit rate savings over previous Intra Frame codecs while maintaining superb 4K image quality. Lower data rates increase recording times while reducing storage requirements.
Uncompromised picture quality is ensured by 10-bit, 4:2:2 color sampling, making the PXW-Z750 ideal for HDR productions.
A wide range of 4K codecs provide the flexibility to select the recording format that is best suited for the requirements of the production you are working on.

Fast Media Transfers
The PXW-Z750 supports latest-generation SxS Pro X media, enabling very high-speed file transfers at up to 10 Gb/s with the SBAC-T40 Thunderbolt 3 SxS card reader/writer.
Transfers are approximately three times faster than previous generation media/reader combinations, dramatically accelerating workflows for any application and bringing down production costs.




VCT-U14F
ON-AIR

VCT-U14F

₦ 269,178.93 VAT included
Available 20 unit in 4 Days
SHAN-TM700
Panasonic

SHAN-TM700

₦ 710,573.93 VAT included
Available in 14 days
FSB 4 0307
Sachtler

FSB 4 0307

₦ 2,476,637.68 VAT included
Available in 14 days
VCT-14
Sony

VCT-14

₦ 857,795.18 VAT included
Available in 14 days
XA20sx8.5BRM-K3
Fujinon

XA20sx8.5BRM-K3

₦ 5,505,288.93 VAT included
Available 3 unit in 4 Days
UA22x8BERD-S8
Fujinon

UA22x8BERD-S8

₦ 26,981.43 VAT included
Available in 124 days
S-2620
Swit

S-2620

₦ 437,255.18 VAT included
Available 1 unit in 4 Days
PL-E90
Swit

PL-E90

₦ 745,726.43 VAT included
Available 2 unit in 4 Days
PL-E60D
Swit

PL-E60D

₦ 866,932.68 VAT included
Available in 11 days
PL-E90D
Swit

PL-E90D

₦ 1,243,988.93 VAT included
Available 2 unit in 4 Days
S-2630
Swit

S-2630

₦ 854,408.93 VAT included
Available in 11 days
S-2440C VM
Swit

S-2440C VM

₦ 1,692,962.68 VAT included
Available in 64 days
S-2610
Swit

S-2610

₦ 560,718.93 VAT included
Available in 11 days
BR-540245
ON-AIR

BR-540245

₦ 745,511.43 VAT included
Available 5 unit in 4 Days
BR-620250
ON-AIR

BR-620250

₦ 680,258.93 VAT included
Available 2 unit in 4 Days
BR-620340
ON-AIR

BR-620340

₦ 784,426.43 VAT included
Available 1 unit in 4 Days
BR-500350
ON-AIR

BR-500350

₦ 583,562.68 VAT included
Available 5 unit in 4 Days
LC-H3003
Sony

LC-H3003

₦ 2,737,755.18 VAT included
Available in 11 days
N60
Kiloview

N60

₦ 1,343,856.43 VAT included
Available 3 unit in 4 Days
ECM-44BMP
Sony

ECM-44BMP

₦ 374,528.93 VAT included
Available 1 unit in 4 Days
ECM-XYST1M.CE7
Sony

ECM-XYST1M.CE7

₦ 324,648.93 VAT included
Available 1 unit in 4 Days
NTG-2
Rode

NTG-2

₦ 506,915.18 VAT included
Available 2 unit in 4 Days
ECM-MS2
Sony

ECM-MS2

₦ 620,596.43 VAT included
Available 1 unit in 4 Days
ECM-678
Sony

ECM-678

₦ 2,090,228.93 VAT included
Available in 14 days
NTG-3 Black
Rode

NTG-3 Black

₦ 1,445,658.93 VAT included
Available in 14 days
ECM-X7BMP
Sony

ECM-X7BMP

₦ 331,260.18 VAT included
Available 1 unit in 4 Days
ECM-44B
Sony

ECM-44B

₦ 650,105.18 VAT included
Available 0 unit
NTG-8
Rode

NTG-8

₦ 2,177,250.18 VAT included
Available in 14 days
NTG-4
Rode

NTG-4

₦ 580,015.18 VAT included
Available 2 unit in 4 Days
ECM-77BMP
Sony

ECM-77BMP

₦ 804,851.43 VAT included
Available 1 unit in 4 Days
ECM-B1M
Sony

ECM-B1M

₦ 730,246.43 VAT included
Available 2 unit in 4 Days
NTG-1
Rode

NTG-1

₦ 485,522.68 VAT included
Available 1 unit in 4 Days
ECM-VG1
Sony

ECM-VG1

₦ 438,921.43 VAT included
Available 1 unit in 4 Days
NTG-3
Rode

NTG-3

₦ 1,445,658.93 VAT included
Available 1 unit in 4 Days
ECM-680S
Sony

ECM-680S

₦ 2,445,677.68 VAT included
Available in 14 days
ECM-674
Sony

ECM-674

₦ 1,131,651.43 VAT included
Available 1 unit in 4 Days
ECM-V1BMP
Sony

ECM-V1BMP

₦ 304,600.18 VAT included
Available 2 unit in 4 Days
NTG-4 PLUS
Rode

NTG-4 PLUS

₦ 621,510.18 VAT included
Available in 14 days
S-8110S
Swit

S-8110S

₦ 408,713.93 VAT included
Available 3 unit in 4 Days
S-8180S
Swit

S-8180S

₦ 712,347.68 VAT included
Available in 11 days
VL-B100USB
ON-AIR

VL-B100USB

₦ 293,581.43 VAT included
Available 4 unit in 4 Days
S-8082S
Swit

S-8082S

₦ 301,375.18 VAT included
Available 2 unit in 4 Days
PB-H290S
Swit

PB-H290S

₦ 736,535.18 VAT included
Available 1 unit in 4 Days
PB-S220S
Swit

PB-S220S

₦ 714,658.93 VAT included
Available 3 unit in 4 Days
S-8192S
Swit

S-8192S

₦ 728,526.43 VAT included
Available 1 unit in 4 Days
PB-S98S
Swit

PB-S98S

₦ 221.69 VAT included
Available 4 unit in 4 Days
S-8083S
Swit

S-8083S

₦ 422,151.43 VAT included
Available 2 unit in 4 Days
S-8113S
Swit

S-8113S

₦ 522,395.18 VAT included
Available 2 unit in 4 Days
PB-M98S
Swit

PB-M98S

₦ 462,087.68 VAT included
Available 3 unit in 4 Days
Boompole
Rode

Boompole

₦ 285,841.43 VAT included
Available 3 unit in 4 Days
Boompole Micro
Rode

Boompole Micro

₦ 141,200.18 VAT included
Available 1 unit in 4 Days
Boompole PRO
Rode

Boompole PRO

₦ 535,671.43 VAT included
Available 2 unit in 4 Days
Boompole Mini
Rode

Boompole Mini

₦ 240,691.43 VAT included
Available 1 unit in 4 Days
LH5P II
Portkeys

LH5P II

₦ 895,312.68 VAT included
Available 2 unit in 4 Days
PVM-X1800
Sony

PVM-X1800

₦ 18,615,451.43 VAT included
Available in 14 days
LMD-A240
Sony

LMD-A240

₦ 6,433,551.43 VAT included
Available 1 unit in 4 Days
S-1093F
Swit

S-1093F

₦ 1,808,417.68 VAT included
Available in 11 days
LMD-A220
Sony

LMD-A220

₦ 5,619,131.43 VAT included
Available in 34 days
S-1093FLUX
Swit

S-1093FLUX

₦ 1,977,461.43 VAT included
Available 1 unit in 4 Days
LMD-A180
Sony

LMD-A180

₦ 6,669,943.93 VAT included
Available in 14 days
UWP-D26K21
Sony

UWP-D26K21

₦ 1,589,278.93 VAT included
Available in 14 days
URX-S03DK33
Sony

URX-S03DK33

₦ 2,745,387.68 VAT included
Available in 14 days
URX-S03DK42
Sony

URX-S03DK42

₦ 2,732,702.68 VAT included
Available 3 unit in 4 Days
UWP-D21K21
Sony

UWP-D21K21

₦ 1,190,453.93 VAT included
Available 1 unit in 4 Days
UWP-D22K21
Sony

UWP-D22K21

₦ 1,187,390.18 VAT included
Available 1 unit in 4 Days
S-4030
Swit

S-4030

₦ 1,331,708.93 VAT included
Available in 11 days
UVC-02
Roland

UVC-02

₦ 548,517.68 VAT included
Available 3 unit in 4 Days
Z-VCT-P
Zacuto

Z-VCT-P

₦ 1,315,261.43 VAT included
Available in 11 days
Z-VCT-PD
Zacuto

Z-VCT-PD

₦ 338,946.43 VAT included
Available 2 unit in 4 Days
Z-VCT-PRP
Zacuto

Z-VCT-PRP

₦ 129,106.43 VAT included
Available in 11 days
S-3812S
Swit

S-3812S

₦ 856,935.18 VAT included
Available 1 unit in 4 Days
SC-302S
Swit

SC-302S

₦ 364,101.43 VAT included
Available 1 unit in 4 Days
VL-PC4L
ON-AIR

VL-PC4L

₦ 608,395.18 VAT included
Available 5 unit in 4 Days
HD 200 PRO
Sennheiser

HD 200 PRO

₦ 172,052.68 VAT included
Available 1 unit in 4 Days
HD 25 LIGHT
Sennheiser

HD 25 LIGHT

₦ 214,407.68 VAT included
Available in 11 days
HD 280 Pro
Sennheiser

HD 280 Pro

₦ 296,053.93 VAT included
Available 2 unit in 4 Days
HD 300 Pro
Sennheiser

HD 300 Pro

₦ 446,231.43 VAT included
Available 2 unit in 4 Days
HD 26 Pro
Sennheiser

HD 26 Pro

₦ 597,860.18 VAT included
Available 1 unit in 4 Days
DICARDEW2
Sony

DICARDEW2

₦ 61,220.18 VAT included
Available in 19 days
UV-C BOXER
Cartoni

UV-C BOXER

₦ 17,204,191.43 VAT included
Available in 14 days
DICARDEW1
Sony

DICARDEW1

₦ 30,582.68 VAT included
Available in 19 days
CBA-PXWZ750B
Portabrace

CBA-PXWZ750B

₦ 912,082.68 VAT included
Available in 24 days
ECM-6
Zoom

ECM-6

₦ 208,011.43 VAT included
Available in 14 days
ECM-3
Zoom

ECM-3

₦ 198,228.93 VAT included
Available in 14 days

Download

Datasheet

Download (421.22KB)

Imaging
Lens Mount: B4
Lens Communication: Yes
Sensor Resolution: Effective: 8.29 Megapixel
Image Sensor: 2/3"-Type 3-Chip CMOS
Image Stabilization: No
Built-In ND Filter: Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Capture Type: Video Only

Exposure Control
Shutter Type: Electronic Rolling Shutter
Shutter Speed: 1/2000 to 1/2 Second
ISO/Gain Sensitivity: Gain: -3 to 42 dB dB
Shutter Angle: 11.25 to 180°
White Balance:
- Range: 1500 to 50,000K
- Presets: Set B, ATW, Set A, AWB

Video Capture
Internal Recording:
MPEG HD420 4:2:0
1920 x 1080p from 1 to 59.94/72/75/80/90/96/100 fps
1920 x 1080i at 50/59.94 fps
1440 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
MPEG HD422 4:2:2
1920 x 1080p from 1 to 59.94/72/75/80/90/96/100 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 23.98/25/29.97/50/59.94 fps
XAVC-I 4:2:2 10-Bit
3840 x 2160 from 1 to 59.94 fps [300 Mb/s]
1920 x 1080p from 1 to 59.94/72/75/80/90/96/100 fps [100 Mb/s]
1920 x 1080i at 50/59.94 fps [100 Mb/s]
XAVC-L 4:2:0 8-Bit
3840 x 2160 from 1 to 59.94 fps [150 to 200 Mb/s]
1920 x 1080p from 1 to 59.94/72/75/80/90/96/100 fps [50 Mb/s]
1920 x 1080i at 50/59.94 fps [50 Mb/s]
Video Output:
SDI/BNC
3840 x 2160 up to 59.94 fps
Fast-/Slow-Motion Support: Yes
Gamma Curve: HDR-HLG, Sony S-Log 3
Audio Recording:
- XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio
- MPEG: 4-Channel 24-Bit 48 kHz LPCM Audio
IP Streaming:
MPEG2, RTP, UDP
320 x 180 to 1280 x 720 (0.2 to 9.0 Mb/s)

Interface
Media/Memory Card Slot: Dual Slot: SxS
Video I/O:
- 1 x BNC (HD-SDI) Input
- 2 x BNC (12G-SDI) Output
- 1 x HDMI (Unspecified Signal) Output
Audio I/O:
- 2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
- 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
- 1x XLR 5-Pin Mic/Line Input
- 1x XLR 5-Pin Mic/Line Output
Power I/O:
- 1x Hirose 4-Pin (11 to 17VDC up to 1.8 A) Output
- 1x Light 2-Pin Output
- 1x XLR 4-Pin (11 to 17VDC) Input
Other I/O:
- 1x RJ45 (LAN)
- 1x 20-Pin Viewfinder
- 1x 50-Pin
- 1x Hirose 8-Pin Control
- 1x Lens 12-Pin Control
- 2x USB-A
- 1x USB-B
- 1x RJ45 (LAN)
- 1x BNC (Timecode) Input
- 1x BNC (Genlock) Input
- 1x DE-15/DB-15 (Wireless Receiver) Input
Wireless: 2.4 GHz Wi-Fi 4 (802.11n), NFC Video Output, Audio Output, Control
Mobile App Compatible: No
Global Positioning (GPS, GLONASS, etc.): GPS

Monitor
Display Type: Primary Monitor: Articulating 3.5" Non-Touchscreen LCD
Resolution: Primary Monitor: 960 x 540

Focus
Focus Mode: Automatic, Manual Focus

Power
Battery Type: V-Mount
Power Consumption: less than or equal to 50 W

Environmental
Operating Conditions: 32 to 104°F / 0 to 40°C
Storage Conditions: -4 to 140°F / -20 to 60°C

General
Accessory Mounting Thread: No
Dimensions: 5.91 x 10.59 x 13.07" / 15.01 x 26.9 x 33.2 cm
Weight: 8.38 lb / 3.8 kg (Body Only)

1x PXW-Z750 4K Shoulder-Mount Broadcast Camcorder (Body Only)
1x Shoulder Strap
1x Cold Shoe Kit
1x Lens Mount Cap
1x Protective Cap

Other products in the same category

Previous
Next
AU-V23HS1G
Panasonic

AU-V23HS1G

Varicam HD 3 sensors 2/3 "attack optical B4
₦ 29,755,837.68 VAT included
Available in 14 days
PXW-X400KFU
Sony

PXW-X400KFU

Camcorder XDCam EX & DVCam - 3 CMOS 2/3" 16:9 - with lens 16x and Viewfinder
₦ 41,876,301.43 VAT included
Available in 49 days
PXW-X400KC
Sony

PXW-X400KC

Camcorder XDCam EX & DVCam - 3 CMOS 2/3" 16:9 - with lens 20x and Viewfinder
₦ 43,576,360.18 VAT included
Available in 49 days
AJ-CX4000GJ
Panasonic

AJ-CX4000GJ

Pro 4K/HDR Streaming Camcorder with B4 Lens Mount, One 4/3" MOS Image Sensor
₦ 50,728,335.18 VAT included
Available in 24 days
CBK-WA02
Sony

CBK-WA02

5 GHz / 2.4 GHz Dual Band Wireless LAN Adapter for PXW-X500 -X200 & -X180
₦ 394,953.93 VAT included
Available in 14 days
PXW-Z450
Sony

PXW-Z450

4K UHD Shoulder Camcorder, 2/3"-Type CMOS - Body Only
Available in 49 days
PXW-X400U
Sony

PXW-X400U

Camcorder XDCam EX & DVCam - 3 CMOS 2/3" 16:9 - Body only
₦ 35,346,213.93 VAT included
Available in 49 days
