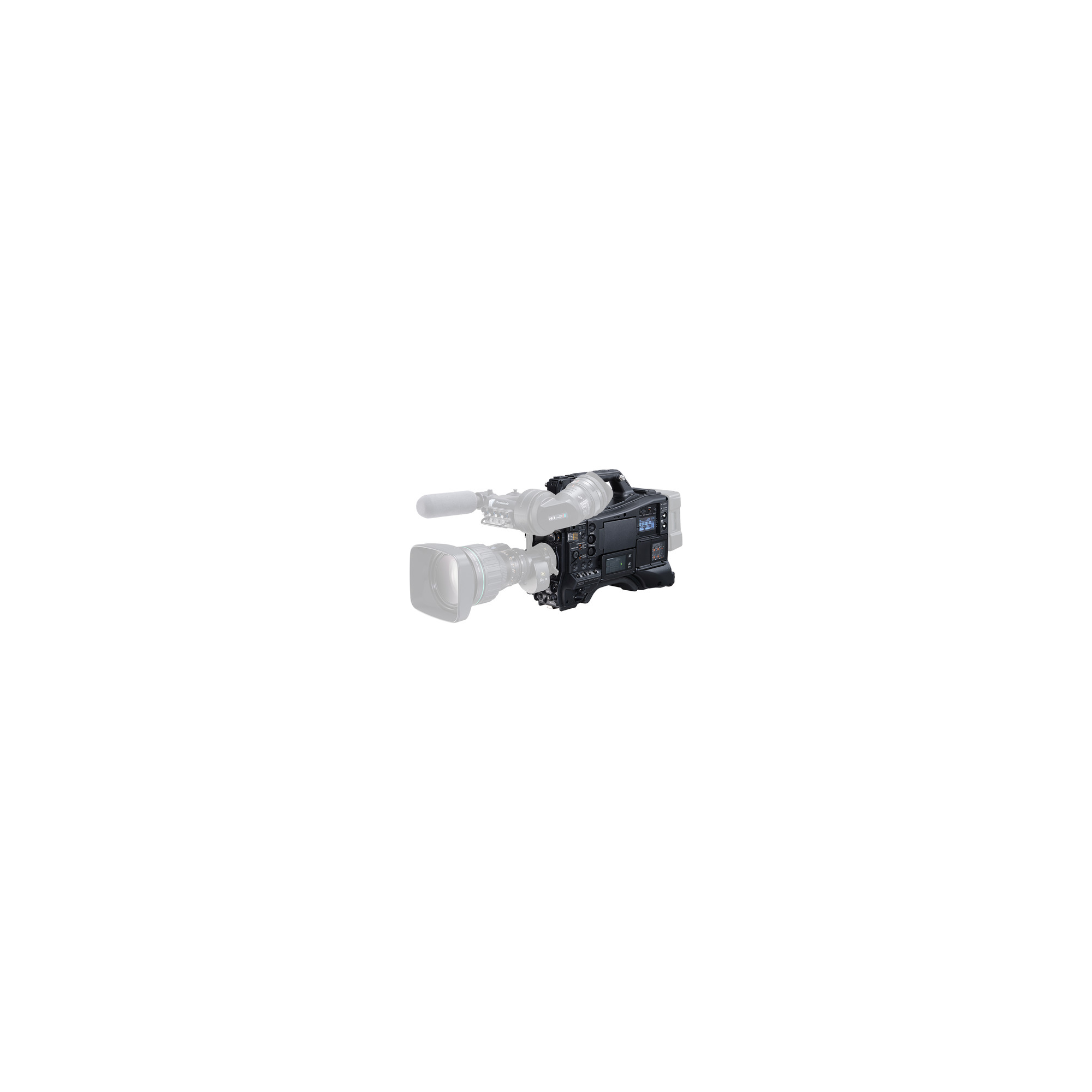

Pro 4K/HDR Streaming Camcorder with B4 Lens Mount, One 4/3" MOS Image Sensor
go to the technical sheet
₦ 50,728,335.18

₦ 47,189,149.00 VAT excl.

Volume discounts

Quantity Unit discount You Save
2 5% ₦ 5,072,833.52
Available in 24 days
Datasheet: Download
Manufacturer: go to website
Not sure if this is the right product for you? Talk to a consultant
Panasonic AJ-CX4000GJ Pro 4K/HDR Streaming Camcorder with B4 Lens Mount, One 4/3" MOS Image Sensor, 11.1MP

- One 4/3" MOS Image Sensor, 11.1MP
- UHD 4K 3840 x 2160 up to 60p
- HLG & Panasonic V-Log HDR Recording
- SRT-Compatible UHD 4K Streaming
- AVC-ULTRA Recording/Dual Codec Recording
- 1 x P2 & 2 x microP2/SD Card Slots
- 12G/3G-SDI BNC & HDMI Outputs
- Genlock In, Timecode In/Out
- Optional Wi-Fi & Wireless Video Modules
- IP, Table & Smartphone Control Option

Designed for today's variable broadcasting needs, the AJ-CX4000GJ Pro 4K/HDR Streaming Camcorder from Panasonic melds UHD 4K, SRT streaming capabilities with the in-camera recording of a familiar B4 lens-mount, shoulder-supported camcorder.
This 4/3" type, 11.4MP sensor video camera captures outstanding images at resolutions up to UHD 4K60 and offers nuanced, HLG (hybrid log-gamma) and Panasonic V-Log HDR recording.
Video outputs include 12G-SDI, 3G-SDI, and HDMI connectors and card options consist of one expressP2 slot and two microP2/SD/SDHC/SDXC hybrid slots.
Use the AJ-CX4000GJ camcorder with an optional Panasonic wireless module or a third-party USB dongle for wireless connectivity using Wi-Fi, 4G/5G, or connect it to your wired LAN network using the locking Ethernet connector.
NDI|HX connectivity is available via a separate license from NewTek.

UHD 4K & HDR Capture
- The 4/3" type image sensor and optical magnifying system capture detailed images with high sensitivity and minimal noise
- Highly sensitive gain and 0.005 lux minimum illumination
- HLG and Panasonic V-Log compatible for HDR capture
- High-quality, detailed images
- Dial-in, optical ND (neutral density) and CC (color correction) filters
- Focus peaking, waveforms, zebras, and markers

Touchscreen LCD
The 3.5" color LCD panel has a touchscreen interface that enables you to quickly select settings and menu choices

UHD 4K HEVC and P2 HD Recording
- Uses the HEVC codec for high-quality, efficient image capture up to 10-bit 4K60 at low bit rates
- Supports P2 MFX file formats with proxy and Shot Mark thumbnail functions
- Offers clip metadata function
- Provides one expressP2 and two microP2/SD/SDHC/SDXC hybrid slots
- Records high-quality 24-bit, 4-channel audio
- 12G-SDI BNC connector outputs up to UHD 4K 10-bit, 4:2:2 video

SHAN-TM700
Panasonic

SHAN-TM700

₦ 710,573.93 VAT included
Available in 14 days
AJ-MC900G
Panasonic

AJ-MC900G

₦ 3,368,995.18 VAT included
Available in 14 days
AJ-WM50
Panasonic

AJ-WM50

₦ 303,525.18 VAT included
Available 4 unit in 4 Days

Download

Datasheet

Download (5.06MB)

Imaging
Lens Mount: B4
Lens Communication: Yes
Sensor Resolution: Effective: 11.14 Megapixel
Image Sensor: 4/3"-Type MOS
Image Stabilization: No
Built-In ND Filter: Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Capture Type: Video Only

Exposure Control
Shutter Type: Electronic Rolling Shutter
Shutter Speed: 1/1000 to 1/100 Second
ISO/Gain Sensitivity: Gain: -6 to 30 dB (-6 to 42 dB Extended)
Shutter Angle: 3 to 360° in 0.5° Increments
White Balance:
- Range: 2000 to 15,000K
- Presets: ATW, AWB

Video Capture
Internal Recording:
AVC-Intra/MOV/P2 4:2:2 10-Bit
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1440 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
AVC-Intra/MOV/P2 4:2:0 10-Bit
UHD 4K (3840 x 2160) at 23.98/25/50/59.94 fps
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1440 x 1080i at 50/59.94 fps
1280 x 720 up to 50/59.94 fps
AVC-LongG/MOV/P2 4:2:0 8-Bit
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1440 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Video Output: SDI/BNC / RJ45 3840 x 2160 up to 60.00 fps
Fast-/Slow-Motion Support: Yes
Gamma Curve: HDR-HLG, Panasonic V-Log
Built-In Microphone: No
Audio Recording:
- AVC-Intra: 4-Channel 24-Bit 48 kHz
- AVC-Intra: 4-Channel 16-Bit 48 kHz
- AVC-Long: 4-Channel 24-Bit 48 kHz
- AVC-Long: 4-Channel 16-Bit 48 kHz
IP Streaming:
H.264
360 x 180 to 3840 x 2160 at 24p, 25p, 30p, 50p, 60p (0.5 to 75.00 Mb/s)

Interface
Media/Memory Card Slot:
- Single Slot: expressP2
- Dual Slot: SD/SDHC/SDXC/microP2 Hybrid (UHS-III) [V90 or Faster Recommended]
Video I/O:
- 1 x BNC (12G-SDI) Output
- 1 x BNC (3G-SDI) Output
- 1 x HDMI (Unspecified Signal) Output
Audio I/O:
- 2x 1/8" / 3.5 mm TRS Stereo Headphone Output
- 2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input
- 1x XLR 5-Pin Microphone (+48 V Phantom Power) Output
Power I/O:
- 1x XLR 4-Pin (11 to 17VDC) Input
- 1x Hirose 4-Pin (11 to 17VDC up to 1.5 A) Output
- 1x Light 2-Pin (11 to 17VDC up to 4.5 A) Output
Other I/O:
- 1x BNC (Genlock) Input
- 1x BNC (Timecode) Input/Output
- 1x D-Sub 25-Pin (Wireless Receiver)
- 1x Lens 12-Pin Control
- 1x 20-Pin Monitor Output
- 1x RJ45 (Gigabit Ethernet, LAN)
- 1x USB-A (USB 2.0) Video
- 1x USB-C (USB 3.2 / 3.1 Gen 1)
Wireless: No
Mobile App Compatible: No
Global Positioning (GPS, GLONASS, etc.): No

Monitor
Display Type: Primary Monitor: Articulating 3.5" Touchscreen LCD
Resolution: Primary Monitor: 2,760,000 Dot

Focus
Focus Mode: Automatic, Manual Focus

Power
Battery Type: Gold Mount
Power Consumption: 32W

Environmental
Operating Conditions: 32 to 104°F / 0 to 40°C at 10 to 80% Humidity
Storage Conditions: -4 to 140°F / -20 to 60°C

General
Shoe Mount: No
Tripod Mounting Thread: 3/8"-16 Female
Accessory Mounting Thread: No
Dimensions: 13.7 x 10.5 x 5.6" / 348 x 267 x 143 mm (Without Protrusions)
Weight: 7.5 lb / 3.4 kg (Body Only)

1x AJ-CX4000GJ Pro 4K/HDR Streaming Camcorder with B4 Lens Mount
1x Body Cap
1x Shoulder Strap
